Mini Rib Pur PIR PU Sandwich Panel for Cold Room

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$7.5 - $35.8 / Meter

Min. Order (Meter)	Unit Price
1000.0	US $ 7.5-35.8/ Meter

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Feb 04, 2015 To Jan 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Basic Info.

Model NO.:Width 950 1000 1100

Material:Sandwich Panel

Usage:Warehouse, Villa, Dormitories, Temporary Offices, Workshop

Certification:ISO, BV

Customized:Customized

Lenght:<=11.8m

Thickness:50mm-150mm

Export Markets:Global

Additional Info.

Trademark:SXGG

Packing:PVC Film

Standard:SGS, BV

Origin:China

Production Capacity:100, 000 Sqm/Month

Product Description

Description:

Waterproof and fireproof
Easy to install
Low thermal conductivity
GB, SGS
Color coated steel surface
Application: Roof plate of high-end building, wall plate of high-end buildings, cold storage plate for warehouse and buildings, curtain wall, exterior wall insulation board

Sandwich usage: Carport, Hotel, House, Kiosk, Booth, Office, Sentry Box, Guard House, Shop, Toilet, Villa, Warehouse, Workshop, Plant
High Quality Panel, Building Material, Wall Panel

PU Sandwich panel manufacturer, for roof and wall

Polyurethane (PU) Sandwich panel

Sandwich panel looks like sandwich. Two external surfaces are made of powder-coated steel sheets. And insulation materials usually use EPS, XPS, PU, Rock wool, Paper honeycomb, Aluminum honeycomb etc.

Product features:

The sandwich panels are new multi-purpose construction material.
1. Heat and sound insulation.
2. Temperature suitable for PU ranges from -200 centigrade to 150 centigrade.
3. Light weight,
4. Seismic resistance,
5. Anti-corrosion etc.
6. Energy conservation,
7. Environment protection,
8. economical,
9. Good structure,
10. easy to installation.
11. water-proof,
12. Good chemical resistance

Specification:

1. External steel panel
Thickness: 0.4mm ~ 1.2 mm
Basic steel: galvanized steel, galvalume steel and stainless steel
Finish: Galvanized, Powder-coated with PE/HDP/PUDF, Stainless steel with brushed/mirrored.
Color: All RAL color and Matt finish
Scratch protect: Double filmed

2. Insulation material
Type: Polyurethane (PUF), Density: 36~45 kg/cum
Thickness (mm): 50/75/100/125/150/200(mm)

3. Panel
Width (mm): 1000mm
Length (mm): tailored as per client's requirement due to continuous forming production.

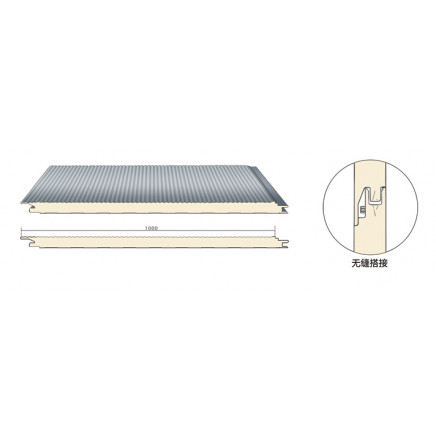

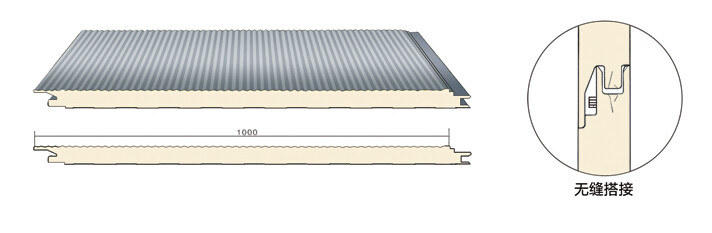

Shape: Notch + Alum. Joint + Notch (Tongue & Groove type is also available)

4. Application
They are widely used in clean room as non-force bearing wall, roof and ceiling and as force bearing wall in single-story prefabricated buildings. The major application demonstrates in the clean room system as partitions & ceilings.
The fields range from electronics to semi-conductor, pharmaceutical, bio-tech and food processing etc.

Cleanroom EPS Sandwich Panel
Type	950
Dimensions	Total thickness	50-150mm
	Width	950mm
	Length	Less than 11.8m
External face	Material	PPGI
	Thickness	0.4-0.8mm
	Thickness of the zinc	60-80g/mł
	Corrosion protection	Galvanized
	Coating	Prepainted
	Thickness of coating	20 micron
	Color	Gray white / according to the RAL / as customer's requirements
	Pattern	Nearly plain
Insulation	Optional foam Material	EPS PU Rockwool Paper honeycomb
	Thickness	50-150mm
	Density	EPS 8~25KG/M3; PU 38-45KG/M3; ROCKWOOL>110KG/M3;
	Thermal conductivity	0.045w/m2k 0.021w/m2k 0.0034w/m2k
Internal face	Material	PPGI
	thickness	0.4-0.8mm
	Thickness of zinc	60-80g/mł
