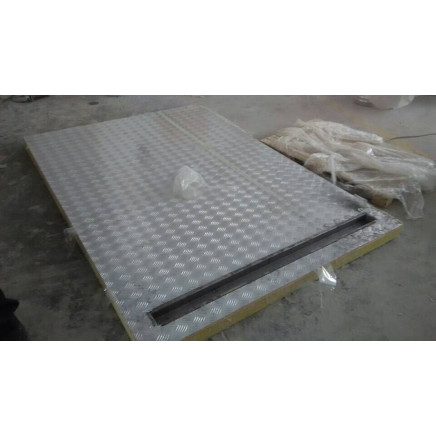

Mini Refrigerated Truck Body Floor Panel

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
2.0	US $ 2300/ Set

Price:US $2300.0 / Set

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Jan 22, 2015 To Oct 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HXFH-FL01

Certification:ISO9000, CCC, TS16949

Frozen Food Transportation Purpose:FRP Sandwich Panel Made

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Western Europe

Additional Info.

Trademark:HXFH

Packing:Bare Loaded

Standard:ISO / CCC

Origin:Qingdao

HS Code:87079090

Production Capacity:5000 Sets / Year

Product Description

Refrigerator and Insulation Truck Body
* Germaney Technology
* ISO9001: 2000, TS/ISO16949: 2002, CCC
* Material: Color Steel Sheet EPS, FRP EPS, FRP PU
Refrigerated and Insulated Truck Body Performance:
1. Outer/inner skin is FRP panel
2. Polyurethane insulated, PU foam density 42-45kg/m3
3.304 stainless steel locks, hinges, door frame, wrap angle
4. Aluminium alloy Edge Protector
5. EPDM rubber door seal
6. Thickness: 62mm, 82mm, 102mm or other special demands, body size as you demanded
7. Side door is optional
8. Light in weight: 40% lighter than metal body.
9. Better insulation: K value less than 0.3W/m2k...
10. High in strength and long life: 5 times longer than metal body.
11. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
12. Easy to be assembled and repaired at site.
* Products can be shipped in CBU (completely built up) and CKD (completely knock down) type.
* Temperature range, -18� C--+25� C, special request reach to -40� C
* The Thickness: 60mm, 80mm, 100mm. With the dimensions, the truck body can be the best Refrigeration Effect. We can also change the thickness by your requirements. And the thickness range is from 25mm to 150mm
Mini Refrigerated Truck Body Floor Panel
