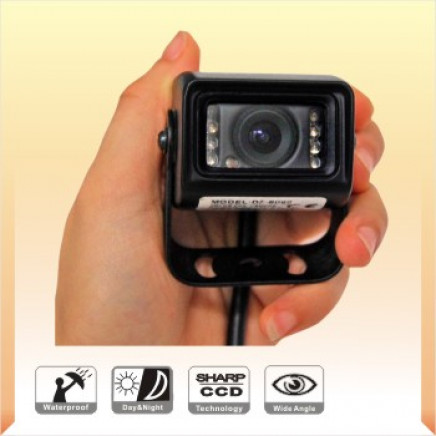

Mini Backup Rear View Camera (DF-8088)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trademark:VEISE

Standard:CE, FCC, ISO9001: 2000, RoHS

Production Capacity:5000pcs/month

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DF-8088

Additional Info.

Trademark:VEISE

Standard:CE, FCC, ISO9001: 2000, RoHS

Origin:China

Production Capacity:5000pcs/month

Product Description

*Miniature Size Backup Cameras with 1/4-inch Sharp CCD for Trailer, Car, Truck, Bus, SUV, Motorhome, Farm, Boat and CCTV Surveillance System
*Built in 6 PCS IR LED's for Picture Support in the Dark
*Aluminum Shell IP68 Waterproof for Outdoor Use

Model	DF-8088
Image Pick-up Device	1/4" SHARP COLOR CCD
Horizontal Resolution	420 TV Lines
Number of Pixels	NTSC:510(H)×492(V); PAL:500(H)×582(V)
Scanning System	NTSC:525 Lines,60 Field/sec, PAL:625 Lines 50 Field/sec
Sync System	Internal Synchronization
Gamma Characterlstic	0.45
S/N Ratio	?48dB(AGC Off)
Electronic Shutter Time	On: NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec; Off: NTSC 1/60 Sec, PAL 1/50 Sec
Usable Illumination	0 lux with built-in IR LED
IR projecct distance	6-8 meters(8 Unit Infrared LED)
IR Status	Under 10 Lux by CDS
IR Power On	CDS Auto Control
Lens	Board Lens 3.6mm/F2.0(optional)
Video Output	1.0Vp-p 75 ohm
Gain Control(AGC)	Auto
Cable	BNC JACK
Water resistance	IP66
Operation Temperature	-10ºC~+50ºCRH95% Max
Storage Temperature	-20ºC~+60ºC RH95% Max
Power Supply	DC12V±10% 400mA
Dimension	48(L) x 45(W) x 36(H)mm
Weight	250g
