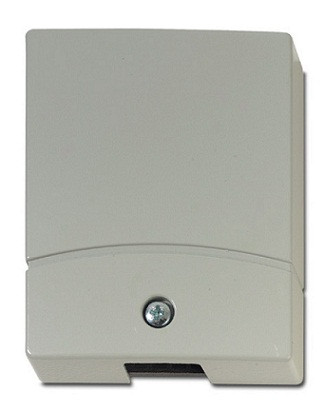

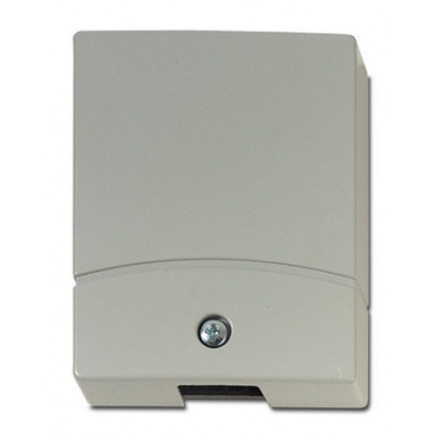

Mini ATM Vibration Selective Microphone Seismic Sensor Shock Detector (VV600)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:50 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal, Western Union

Trademark:Texecom

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Texecom VV600-PLUS

Application:Home, ATM

Usage:ATM

Dimensions:80*100*30mm(H*L*D)

Colour:Beige

Operating Temperature:+5degree to +40degree

Current Consumption:24mA Max

Weight:250g

Export Markets:Global

Additional Info.

Trademark:Texecom

Packing:CTN

Standard:CE

Origin:China

HS Code:8531100000

Production Capacity:10000PCS/Month

Product Description

Specifications:
Input power 9 to 15 VDC, 2 V pk-pk
Current consumption Nominal 8.6 mA
Alarm output Form A solid state relay, max series resistance 35 ohm
Alarm indication LED-indication screw no. 3
Sensitivity adjustment 5 steps of approx. 6 dB each
Test output Screw no. 4 for measuring ambient noise level
Detection range 3 to 14 m radius. See Installation Manual for planning
Purposes
Tamper protection Temperature 84° C, drill shield, opening contact, pry-off
Contact
Low voltage alarm 7.5 V
IP rating IP30
Operating temperature -20 to +55° C
Relative humidity 90% at 30° C
Dimensions (W x H x D) 81 x 101 x 28 mm

The VV600/602 Plus series seismic detectors are designed to detect attempts to break into vaults, safes, night deposit boxes, automatic teller machines (ATMs) and other reinforced physical areas such as data storage's and filing cabinets. The VV600 Plus Series is a next generation development based on proven high technology electronic processing with excellent secure detection without false alarms. Not only with a new look but also designed for the highest security with full-scale tamper protection and two possibilities of testing.

For more details, please:
Contact: Tina
Sype: Dana_z88
TEL: 0086 -13316516142

Name:	Mini ATM Vibration selective microphone Sensor /Seismic Detector
Model:	Texecom VV600-PLUS
Power supply:	from 9 to 15V, max. ripple 2V pp, nom. Value 12V
Current consumption:	24mA max
Alarm output:	SPTS NC relay capacity 100mA at 30V(3w) opens in alarm for approx.1/2 second
Tamper output:	micro-switch capacity 100mA at 30V(3W)
Alarm Indicator:	Led remote output for VT608/VT609; at rest=negative ; alarm on=contact open
Adjustment:	potentiometer with 5 settings,6db each setting
Range:	see table above
Anti-tamper protection	withstands temperatures of 84° C,anti-rilling shield, contact against magneticfields,antiopening device and cut off,low electricity supply(under 7V)warning cicuit
MTBF:	240,000philips method
Operating temperature:	de+5° C to +40° C
Ralative humidity:	90%
	electrostatic discharges 20KV max
	electrical discharges 1.5KV to 0.4mJ max
Dimensions:	8010030mm(HLD)
Colour:	beige
Weight:	250g
