Filling machine introduction
Main function :This small filling machine is mainly used to fill gas for family use LPG cylinder and car by gas-filling gun1.Pre-setting unit price, gas-filling quantity(volume, weight) and gas-filling amount.
2. Automative compensation function of LPG tempreture and volume
3. overpressure-proof and automative shut-off protection design
4.Vapor-gas separation and Pressure difference self-protection
5.over-flow self protection
6.Power-off Restore function
7.Provide interface port for tax-controlling machine
Main technical parameter:
1.single gun flow:10L/min ~ 60L/min;
2,Max.working pressure:2.5Mpa;
3,working environmental tempreture:-30ºC~+55ºC;
4,Measuring Accuracy: ±1%;
5,Power:AC220±30%,50±1Hz 6,Degree of anti-explosive:Exmdib II AT4
7,pre-setting internal interface port:RS485
workshop images
BEST COMPETITIVE PRICE WITH TRUSTED QUALITY
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc.
We sincerely welcome you to visit our factory and provide your precious suggestion for us!

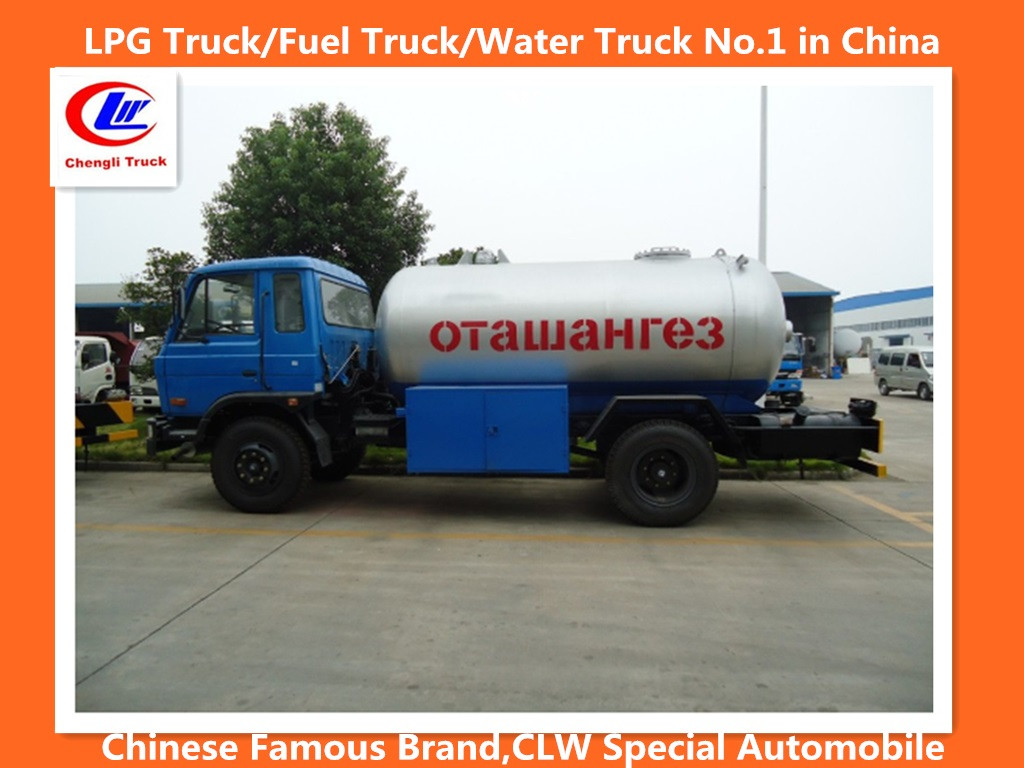

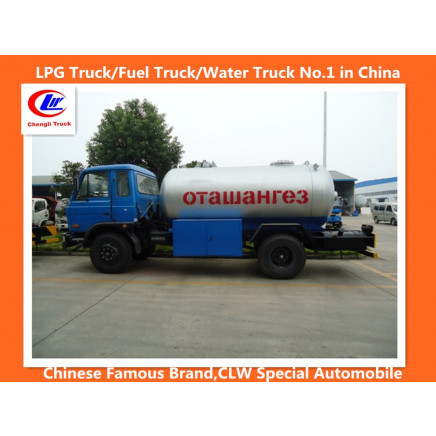

| 5.5 cbm lpg delivery truck |
| Item | Parameters | Unit | Item | Parameters | Unit |
| Total Mass | 7495 | KG | Overall dimensions(L*W*H) | 5900×2045×2600 | mm |
| Rated Payload | 2310 | F/R suspension | 1115/1485 |
| Curb Weight | 4990 | Wheel base | 3300 |
| Tank volume | 5.5 | cbm | Axis NO. | 2 | pcs |
| Approach/Departure angle | 18/12 | ° | Allow passengers cab | 3 | person |
| Chassis | Item | Parameters | Unit | Engie | Item | Parameters | Unit |
| Chassis Model | EQ1070T35DJ3AC | / | Engine Model | YC4F115-30 |
| Tire specification | 7.00R16,7.00-16 | mm | Exhaust | 2659 | ml |
| Horse power | 116 | ph | Engine Power | 85 | ml/kw |
| Number of tires | 6 | pcs | Fuel Type | Diesel |
| Drive wheel | 4*2 | / |
| Exhaust standard | Euro 3 |
| Front tread | 1586 | mm | Chassis Supplier | Dongfeng Automobile Co., Ltd. |
| Rear tread | 1530 | Engine Supplier | Guangxi Yuchai Machinery Co., Ltd. |
| Production cycle | 15 | Days | Warranty | 12 months, from the date of supply |
