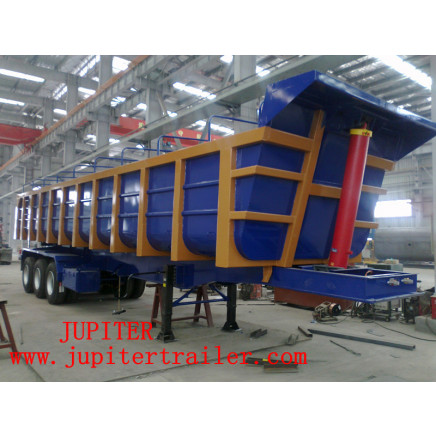

Mineral Usage Dump and Tipping Semi Trailler

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
2.0	US $ 20000.0-30000.0/ Piece

Price:$20000.0 - $30000.0 / Piece

Trade Terms: FOB, CIF, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Jan 23, 2015 To Apr 05, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9400ZZX

Type:Suspension

Towing Pin Material:Alloy Steel

Impeller Type:Front Semi-open Type

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Ceramic

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Shape:U Shape

Colour:Blue or as Your Request

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:Jupiter

Packing:Nude, Coating with Wax

Standard:CCC

Origin:China

HS Code:87163910

Production Capacity:90 Pieces/Month

Product Description

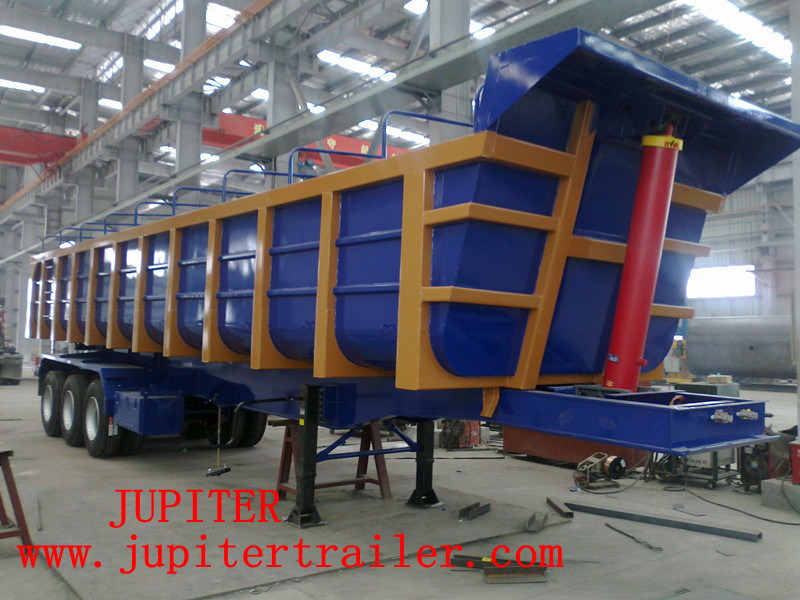

Mineral Usage Dump and Tipping Semi Trailler

The main components consist of chassis, axles, tyres, suspension system, steel rims, electrical system, and lift oil cylinder.
We can offer to you triaxial and biaxial tipper trailers for our clients all over the world.

Features of Tipping Semi Trailer:
1. Both side tipping and back tipping type are designed for its carriage, which can effectively improve the transportation efficiency of scattered goods in bulk.
2. Both of its chassis frame and cross beam of its carriage are made of high-quality Mn plate, and its container can be dustpan or rectangle shape. All of them ensure this tipper trailer high strength, strong lifting capacity, high rigidity, good toughness, high loading capacity and no permanent deformation.
3. This tipping semi trailer enjoys sophisticated technology. All of its main components are processed by advanced equipment, and full-automatic submerged arc welding technology has been used to make its longitudinal beams. Besides, its axles and leaf springs are accurately fitted together by assembly machine.
4. This tipper trailer can be used to carry goods with the volume ranging from 20m3 to 50m3. And being capable of side tipping and back tipping can greatly improve the efficiency in transporting scattered goods in bulk.

Operation of Tipping Semi Trailer:
1. Gas exhausting should be done when the hydraulic cylinder is used for the first time or just needs replacing.
2. Enough lubrication should be given to the relevant parts, and users also should regularly check the wear conditions of the rotation components.
3. Before using the hydraulic cylinder, users should check whether its position limiting device is in good condition in advance.
4. Lifting on the sloping road should be better avoided, and during the lifting process, the trailer should be better stay motionless. If the trailer moves, instant high pressure will happen in the hydraulic system.
5. When the trailer is lifting or in inspection and maintenance, workers should stay away from the oil cylinder.
6. The oil cylinder should be installed with a vertical cylinder body and parallel upper and lower axes, and enough space should be kept in the rotation connection parts.
7. This tipping semi trailer should better adopt container transportation, bulk goods, and RORO.
8. Lubrication: Users should do lubrication for supporting hinge after the container has been lifted as many as 250 times or the tipper trailer has been working for a week. When doing lubrication for the upper and lower coupling axles, lifting axle supporter, claw self-locking mechanism, users should not let grease lubricate the plunger piston of the lifting cylinder. If that happens, please wipe up the grease by a clean soft cloth. Later, users also should check the bolts and nuts.
9. Oil changing: Users should change the oil after lifting containers 1500 times, and users should often check the pollution and aging conditions of the container. The oil should be better changed once a year before winter comes, and please make sure that no water is mixed in the hydraulic oil to avoid corrosion or freezing in winter.
10. Gases exhaust: Before exhausting gases, please make sure that the hydraulic oil level should be in the standard position, and the added oil should be hydraulic oil with low viscosity. Meanwhile, please check whether the sealing of hydraulic pipelines is good.
11. Hydraulic system: Users should regularly check whether there is any leakage in the hydraulic system. If there is any leakage, the lifting system wouldn't work normally.
