Microwave & Infrared Dual Detector, PIR Sensor, Motion Sensor

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
50.0	US $ 10.25/ Piece

Price:US $10.25 / Piece

Trade Terms: FOB, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Jul 15, 2015 To Oct 15, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DT-7235/7235T/7435/7450

Package Box:Original

OEM & ODM:Yes

Type:Sensor

Installation Mode:Contact Type

Application:Home, Communication E

Usage:Anti-Theft, Anti-Theft~

Export Markets:Global

Additional Info.

Trademark:Honeywell

Packing:CTN

Standard:CE, UL

Origin:China

HS Code:8531100000

Production Capacity:150000PCS/Year

Product Description

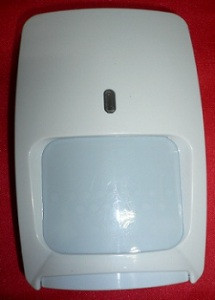

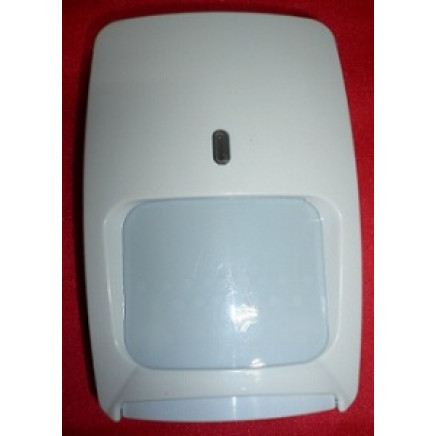

HONEYWELL Ceiling Mount sensor DT-7235/7235T/7435/7450T

Features:
1. Digital Micro mini control Duel Tech Detector
2. Quadruple sealed microwave head+ Dual PIR+ Intelligent digital analysis
3. MW adopts the latest plane antenna field-effect transistor oscillator
4. Sealed optical structure, anti-interference of insect or dust, enhance anti-white light performance
5. Syncretize MW& PIR technology, double processors improve signal processing ability
6. Adopts energy-saving logic processing(DMF), random dynamic time segmentation(DMT) technology
7. Dual infrared FRESNEL lens, with downward vision window avoid detecting dead angle.
8. With tamper switch, hence with reliable function
9. Digital pulse adjustable, automatic temperature compensation, energy analysis
10. Advanced pet-immunity recognition technology can distinguish the different signal between intruder and pet
11. Advanced anti-cloak technology to recognize the intruder with cloak
Microwave & Infrared Dual Detector, PIR Sensor, Motion Sensor

Detector Model	DT-7235/7235T/7435/7450T
Detection range	Diameter 7.6m × 9m
Detection angle	110°
Infrared area	44 or 38
MW frequency	10.525GHz
Installation Height	1.8m~2.4m(surface or corner installation)
Working voltage	9~16VDC
Working current	8mA~25mA(about 20mA@12VDC)
Working temperature	-10~+50;
Relative humidity	5%~95%RH
Anti EMI	>9000LUX
Anti-white light	>20V/M (20MHz~1000MHz)
