Mercedes Technology North 6x4 9m3 Concrete Mixer Truck for Benz (ND3250W282B)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 40000.0-60000.0/ Piece

Price:$40000.0 - $60000.0 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T, Western Union, Paypal, Money Gram

Price Valid Time:From Dec 20, 2012 To Mar 20, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ND3250W282B

Transmission Type:Manual

Condition:New

Horsepower:336HP

Max.Speed:85km/H

Rated Feeding Capacity:9cbm

Drum Rotation Speed:0-18r/Min

Power:Diesel

Emission Standard:Euro 3

Truck Type:Concrete Mixer Truck

Tire Design:Radial

Seats:?5

Tire Certification:ECE

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:North Benz

Packing:Nude Packing

Standard:ISO, GCC, CCC

Origin:Inner Mongolia, China

Production Capacity:30, 000 Units/Year

Product Description

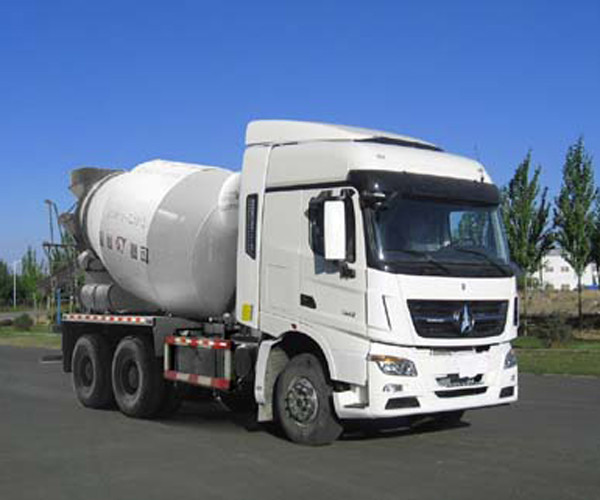

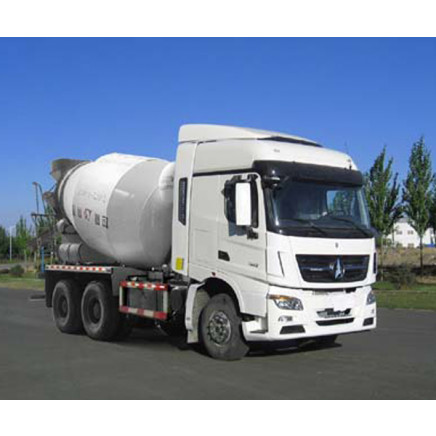

RHD/LHD 6X4 NORTH Benz CONCRETE MIXER TRUCK
NORTH Benz 6X4 CONCRETE MIXER Truck
Mode: ND3150W282D
Driving type:
LHD (Right Hand Drive is optional)
Driver's cab: Long cabin, single sleeper
Engine:

Maker: WEICHAI
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter-cooling
Engine model: WP10 series
EURO II/EUROIII emission standard
Maximum output: 336HP@2200 rpm
Number of cylinder: 6
Displacement: 9.726L
Clutch:
430mm, hydraulically operating with air assistance
Transmission: FULLER Brand transmission.
Front Axle
Benz front axle 7.5 tons
Rear Axle

Benz 13T double reduction drive axle
Steering: TAS85
Option: ZF8098, hydraulic steering with power assistance

Wheel & Types
Tyres: 12.00-20
Optional: 12R22.5, 12R20
Radial tire and tubeless tire is optional

Electrics:
Operating voltage: 24V, negative grounded
Dimensions in mm
Wheel base: 3450+1450
Overall size: 8715× 2495× 4000
Weight in kg
Kerb weight 8700
Permissible trailing capacity 25000
Performance
Maximum driving speed(km/h) 85
Body mm: 9CBM

Additional Information
