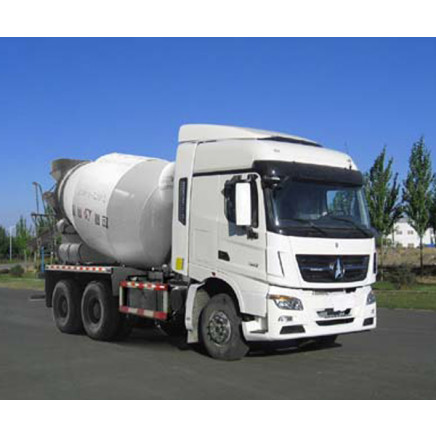

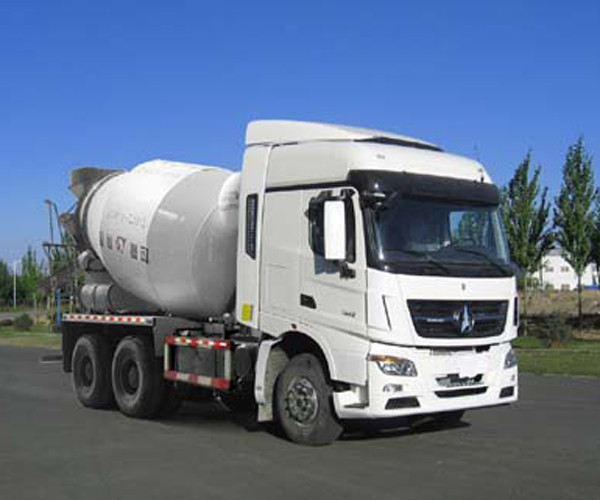

Mercedes Tech. North Benz 6x4 8 Cubic Meters Concrete Mixer Truck (ND3250W282B)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 50000.0-60000.0/ Piece

Price:$50000.0 - $60000.0 / Piece

Trade Terms: FOB

Payment Terms: L/C, T/T, Western Union, Paypal, Money Gram

Price Valid Time:From Dec 14, 2012 To Mar 14, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ND3250W282B

Transmission Type:Manual

Condition:New

Mixer Body:9.0cbm

Rated Power:297kw

Fuel Tank Capacity:300L

Max.Speed:70km/H

Power:Diesel

Emission Standard:Euro 3

Truck Type:Cargo Truck

Tire Design:Tubeless

Seats:?5

Tire Certification:ISO

Export Markets:North America, South America, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:North Benz

Packing:Nude Packing

Standard:SGS

Origin:China Main Port

HS Code:8604009900

Production Capacity:30000 Units Per Year

Product Description

SPECIFICATION:
Traction type: 6X4

Driving type: LHD (RHD is optioned)

Cabin: North Benz, short cabin

Engine

Engine brand: STEYR (Weichai )

Engine model: WP10.336 EURIII

Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line

With water cooling, turbo-charging & intercooling

Displacement: 9.726 liters

Max. Output: 320HP@2200rpm

Max torque: 1250NM@1200-1600rpm

Bore/Stroke(mm): 126/130

Mean Position Speed: 9.53m/s

Compression ratio: 15.5: 1

Specific fuel consumption: 198g/Kwh

Gear box

Gear box: 5S-111GP

Clutch

Clutch: GF420 Spring type

Type: Single plate dry clutch, mechanically operating with air assisted

Steering: TAS85

Front axle: Benz front axle

Rear axle: Benz strengthened axle (punching-welding axle housing, double

Reduction driving axle, inter-wheel differential and differential lock)

No. Of axle: 3

Tyre: 12.00-20

No of tyre: 10+1 spare

Spring: 10/13

Fuel tank capacity (L): 300

Max. Speed (km/h): 80

Max. Gradeability(%): 30

Kerb. Mass: 12400kg

Total mass: 25000g

Wheel base (mm): 3800+1450

Front overhang (mm): 1410

Rear overhang (mm): 1870

Approach angle: 26degree

Departure angle: 36degree

Dimension (mm): 8530x2500x3310
Body:
Max. Diameter: 2300mm

Length: 4592mm

Volume: 14.5CBM

Capacity: 9CBM

Slope: 13.5

Rotating speed: 0-16 r/min

Water Tank: 400L

Discharged remain ratio: <0.5%

Hydraulic pump and motor: EATON (America)

Decelerator: POP (Italy), 089 pumps, motors
