Mercedes Radiators for Benz W168 / A140 / A160 ' 97 - 00 - at

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Mercedes Radiators for Benz W168 / A140 / A160 ' 97 - 00 - at

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:30 Pieces

Trade Terms:FOB

Payment Terms:L/C, T/T

Trademark:KINGA

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:KJ - 40047 PA16 / 22

Component:Radiator

Body Material:Aluminium

Cold Style:Water-cooled

Certification:ISO9001, TS16949

Structure:Open Type

Cooling Fluid Type:Alcohol

Radiator Type:Cross-flow

Radiator Core Type:Tube-fin

Water Temperature Sensor Type:Switch Type

Cooling Fluid Brand:Mobil

Tank Size:41.5 / 41.5 * 390 Mm

Thickness:16 / 22 Mm

Core Size:600 * 368 * 16 / 22 Mm

Inlet Size:Diameter 32 Mm

at / Mt:at

Core Material:Aluminum

Oil Cooler:22 * 275 Mm

Carton Size:810 * 110 * 540 Mm

Outlet Location:Left Top

Inlet Location:Right Bottom

Export Markets:Global

Additional Info.

Trademark:KINGA

Packing:Paper with Foam

Standard:PA 360 * 418 * 26 / 32 mm

Origin:China

HS Code:8708911000

Production Capacity:65000PCS/Month

Product Description

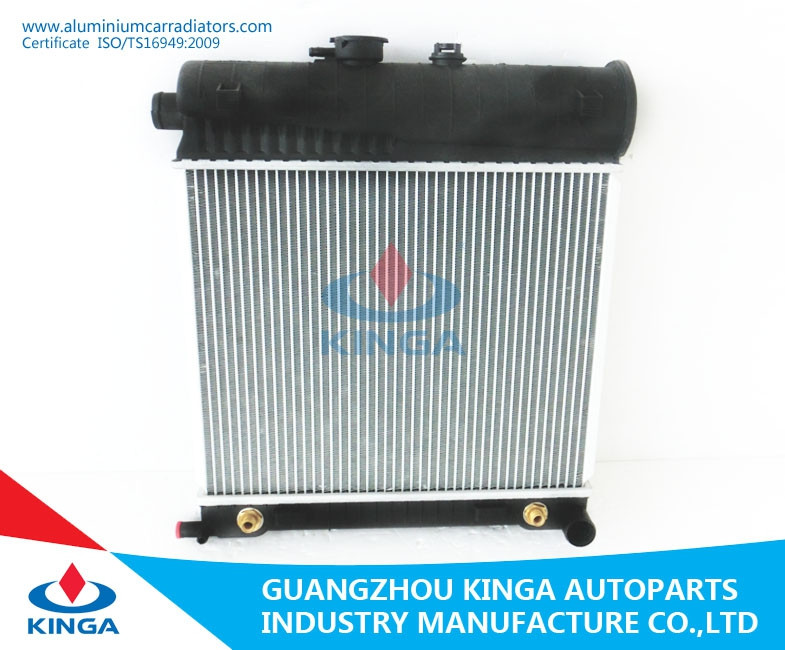

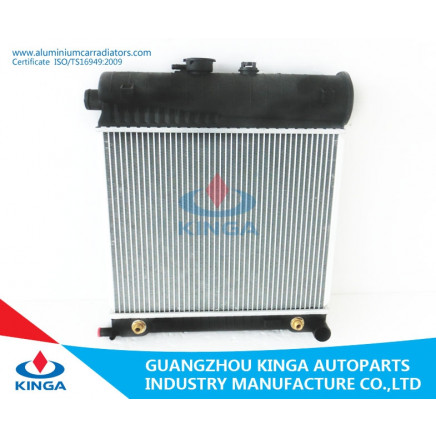

PA16 / 22 Aluminium Car Radiators Benz W168 / A140 / A160 ' 97 - 00 - AT

Item Specifications

Manufacturer Part Number	KJ - 40047 - PA16 / 22
OEM	168 500 0302 / 0602
Car Type	Benz Radiator
Core Material	Aluminum
Tank Material	Plastic
Transmission	AT
Thickness	16 / 22mm
Core width	368 mm
Core Height	600 mm
Inlet Location	Right Bottom
Engine Oil Cooler:	22 * 275 mm

Auto Radiator (engine cooling)
Radiators are heat exchangers used for cooling internal combustion engines, mainly in automobiles but also in piston-engined aircraft, railway locomotives, motorcycles, stationary generating plant or any similar use of such an engine.

Raditor Structure Chart

Brazed Radiator Structure
1. Filler Neck	8. Side Plate	15. KINGA Logo
2. Top Header Plate	9. Core Height	16. Bottom Header Plate
3. Inlet Pipe	10. Fin	17. Water switch
4. Top Tank	11. Tube	18. Bottom Tank
5. Top Mounting Pins	12. Core Width	19. Oil Cooler
6. Fan Mount	13. Core Thickness	20. Outlet Pipe
7. Overflow Pipe	14. Clip

Our advantage
1. Efficiency: any inquiry or email will be replied within 24 hours.
2. Profession: more than 20 years technical and sales support team offer you the best service.
3. Delivery: 15-20 days for one container.
4. Guaranty: strict quality control through our quality control team, one year warranty against BL date,
any leakage will replace or return by money.
5. High quality and competitive price: we are using high quality materials, we have advanced production
equipment, strict requirements for production, good price.

Benz W168 / A140 / A160 ' 97 - 00 - AT
Pay Attention
. Flush the entire cooling system of the vehicle .
. Radiator should not contact with any acid , alkali or other corrosive properties .

Please feel free to contact us for any question! Join us, this is a new beginning of the journey ,
you will feel the most efficient service, best quality and excellent reputation!
