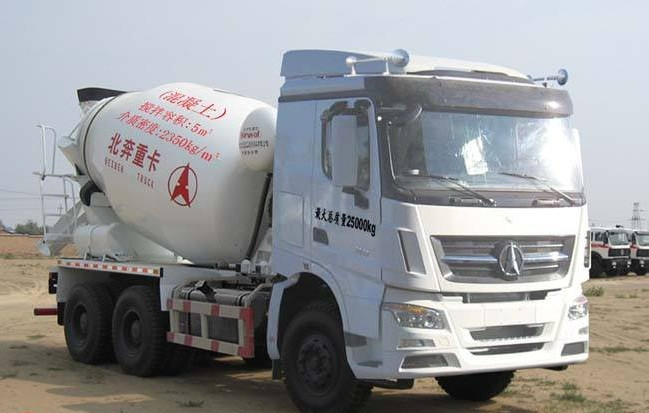

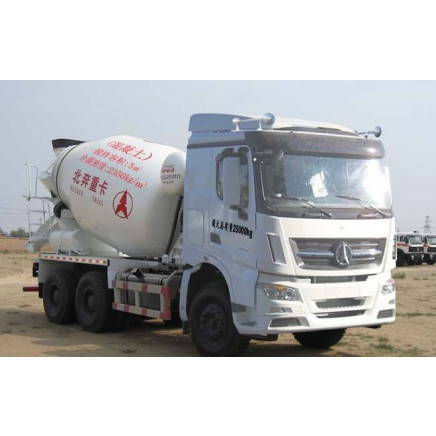

Mercedes Benz Technology V3 Cement Mixer Truck 10cbm (ND52500GJBZ)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 50000.0-55000.0/

Price:$50000.0 - $55000.0 / Unit

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Dec 13, 2012 To Mar 04, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ND52500GJBZ

Transmission Type:Manual

Condition:New

Engine:Weichai Wp10.340e32 340HP

Cab:Long Cabin, Single Sleeper, A/C

Transmission:Fuller

Steering:Tas85

Mixing Body:10 Cbm Mixer Body

Power:Diesel

Emission Standard:Euro 3

Truck Type:Mixer Truck

Tire Design:Bias

Seats:?5

Export Markets:Global

Additional Info.

Trademark:North benz

Packing:Nude Packing

Standard:ISO, CCC

Origin:China(Mainland)

Production Capacity:30000 Per Year

Product Description

Top quality famous North Benz dump truck. Mercedes Benz technology, great performance, reasonable price.
Newly designed V3 model, new technology, upgraded equipments, beautiful appearance.
Certificate: ISO9001, CCC

1. After-sale Service
Any small question will be solved at the most prompt time. We also offer relative technical support. Our spare parts will be available at any time after your order.
2. Supply Capacity
We manufacture the truck as soon as your order comes. And for the stock, we can delivery it immediately.

SPECIFICATION
NORTH BENZ 6x4 MIXER TRUCK
Traction	6x4
Driving type	LHD (right hand drive is optional)
Cabin	North Benz, long cabin, single sleeper, A/C, made by full steel material, 4 point suspension, anti-crash performance can be ensured by double hollow chamber structure, Can be tipped forwardly, high back and shock absorption seat for the driver, sun protection, Dash board with all necessary gauges such as (km meter, rpm, oil pressure, temperature, air pressure, fuel level), Radio player(with MP3 fuction).
	Major color of cab: Ice white lacquer+ color bar
Vehicle Main Dimensions	LxWxH(mm)		9405×2500×3980
	Wheel base(mm)		3800+1450
	Wheel track(front/rear)(mm)		Front track (mm): 1995 Rear track (mm): 1800
	Approach/Departure angle(°)		23/20
	Overhang (front/rear)(mm)		1515/2640
Weight in KGS	Tare Weight(kg)		13785kg
	Total mass(kg)		25000kg
	Front axle loading capacity		7.5tons
	Rear axle loading capacity		2x13tons
	Ratio		1:5.263
Driving Speed(km/h)			90
Engine		Brand	Wei chai
		Model	WP10.340E32
		Emission	Euro III EGR
		Engine type	Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling
		Displacement	9.726 L /Diesel
		Max. output	340hp@2200rpm
		Max torque	1250NM@1400-1600rpm
		Bore/Stroke(mm)	126/130
		PTO	Yes
Gear box		Model	9T-160
		Brand	Bei ben
		Type	9 forward gears, 1 reverse gear, manual, made in China
Clutch		?430 Diaphragm type, Single dry frictional disc, Hydraulic boosting
Steering		ZF8098(Germany technology)
Tyre		Tyre	12.00-20 Bias tyre
		No. of tyres	10+1spare
Fuel tank		300L Aluminium Tank
Front axle		Mercedes Benz Technology
Rear axle		Mercedes Benz Technology, Double reduction driving axle with inter-wheel differential and differential lock
Frame		Mercedes-Benz technology, aequilate main frame,300x90x8+6+8mm
Spring		10/13
Gradability		30degree
Brake system		Double-circulate brake system
