Mercedes Benz Technology North Benz Concrete Mixing Truck (ND52501GJBZ)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF

Payment Terms:L/C, T/T

Model NO.:ND52501GJBZ

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ND52501GJBZ

Transmission Type:Manual

Condition:New

Power:Diesel

Emission Standard:Euro 3

Truck Type:Tanker Truck

Tire Design:Radial

Seats:?5

Tire Certification:ISO

Tire Type:Inner Tube

Drive Wheel:4WD

Load Capacity:50T

Export Markets:South America, Eastern Europe, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Product Description

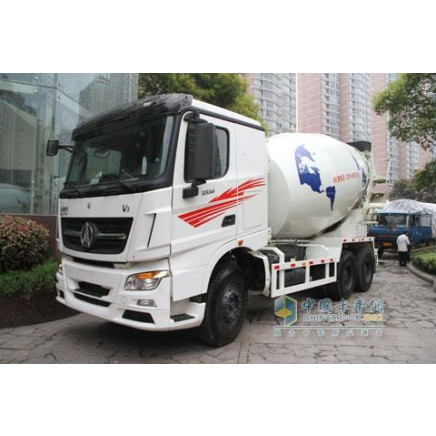

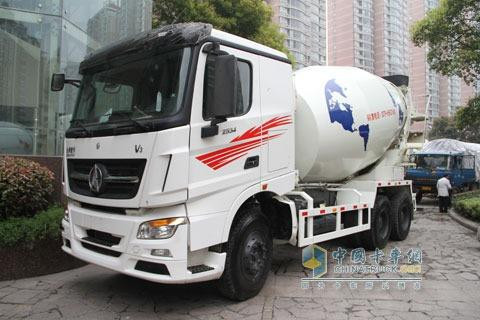

Mercedes Benz technology North Benz Concrete Mixing truck

Option drive type: 6X4
Chassis: Benz chassis
Cabin Features: Benz, long cabin, flat roof, one sleeper, A/C

Engine brand: Weichai
Model: WP10.375/276 EURIII Common Rail
Engine output: 375HP @2200 rpm
Bore/Stroke(mm): 126/130
Displacement: 9.726L
Specific fuel consumption<=189g /Kw. H
Engine type: Electronic controlled high pressure common rail,
Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling with exhaust valve brake.

Transmission (gear box): 12JS200T
Clutch: D430 Diaphragm type
Steering: ZF8098

Front axle: Benz front axle(6.5ton)
Rear axle: Benz strengthened axle (punching-welding axle housing, double
Reduction driving axle, inter-wheel differential and differential lock)

Ratio: 5.263
No. Of axle: 3
Spring: 10/13
Fuel tank: 300L
Tire: 295/80R22.5
No. Tyre: 10+1 spare
Kerb mass: 15155kg
Approach angle(° ): 23
Departure angle(° ): 20
Front overhang(mm): 1515
Rear overhang(mm): 2940
Front/rear track(mm): 1995/1800, 1800
Max. Speed(km/h): 90
Wheel base(mm): 4100+1450

Dimension(mm): 9000*2500*3980

EXTRA CHARGES:
PTO: QH50 ---------$160
QH70 ---------$320
