Marine Engine Valve & Valve Seat for All Models (MAN)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

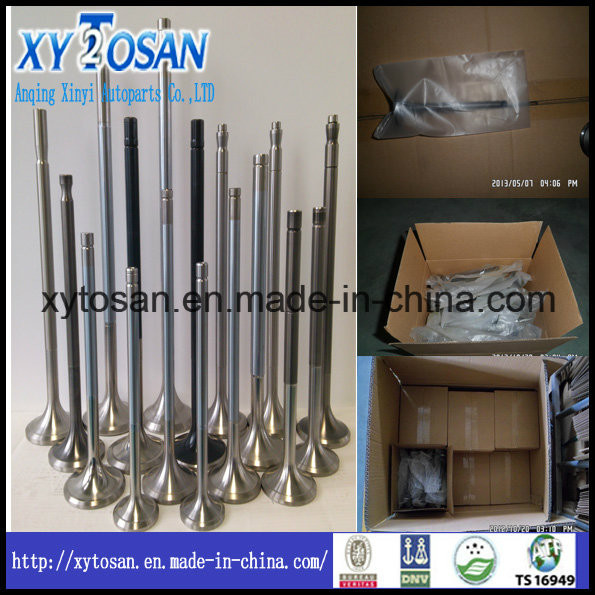

Marine Engine Valve & Valve Seat for All Models (MAN)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$0.45 - $5.8 / Piece

Min. Order (Pieces)	Unit Price
10.0	US $ 5.8/ Piece
100.0	US $ 0.45/ Piece

Trade Terms: FOB, CFR, EXW, CIF, FCA

Payment Terms: L/C, T/T, Western Union, Paypal, Money Gram

Price Valid Time:From May 05, 2015 To May 15, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Man, Yanmar, Daihatsu, Pielstick, Skl

Cylinders:6

Fuel Type:Diesel

Engine Capacity:5.1-6L

Engine:4 Stroke

Engine Position:Inboard

Condition:New

Car Make:Man, Wartsila, Yanmar, Daihatsu, Piel

Material 2:33cr23ni8mn3n, 20cr21ni12n, 45cr14ni14

Place of Origin:Anhui, China(Mianland)

Brand Name:Xytosan

Engine Type:Diesel

Material(in&Ex):N80A, Inconel751&40cr10si2mo, 42cr9si2, X45crsi9.3

Surface Treatment:Nitriding(Tufftriding)

Heattreatment:Quenching/Tempering;Solution/Aging

Welding:Cobalt Alloy for Ex Valves

High Temperature:Corrosion Resistant

Export Markets:Global

Additional Info.

Trademark:XYTOSAN

Packing:Xytosan or Neutral Package, and Customization

Standard:OEM

Origin:Anhui China

HS Code:8409919990

Production Capacity:200000/Per Month

Product Description

Marine Engine Valve & Valve Seat for All Models
Specifications:
1. Material have two kinds of Martensite and Austenite , the Intake Is Suh3(4cr10mo) ; Exhaust Is Suh-35(21-4N), the OEM is STELLITE
2. Surface treatment is Nitriding(Tufftriding) and chromed+polished
3.Warranty is 2 Years in 60000-80000 Kms
4.Our sepecial technogly have SUH-35+TIP(ONE PIECE TIP WELDING),
SUH-35+SUH-3 WELDING (FRICTION WELDING& TWO MATERIAL WELDING& BIMETALLIC),
OEM IS STL WELDING(STELLITED BE WELDING TO VALVE SEAT AND VALVE STEM END)
5.Different stem diameter:1-24mm and Engine Valve specification:Hd(12-90mm), Sd(3.0-18mm), Ol(40-350mm)
6. we also can made change size according to customers needs, like valve seat within 1mm.
7. we also can mark laser on the stem , like part name, engine number, OEM no.&part no.
and we can mark on the valve seat, but it needs based on moudling.

The material of engine valve:

The Marterial chemical element and name for Engine valve
chemical Element & Name	WC (Wolfram Carbide)	Wsi	Mn	WP	WS	Wni	WCr	Wmo	WW	WN	Wco
4Cr9Si2	0.35~0.50	2.00~3.00	?0.70	?0.035	?0.030	--	8.00~10.00	--	--	--	--
45Cr9Si3	0.40~0.50	2.70~3.30	?0.80	?0.040	?0.030	--	8.00~10.00	--	--	--	--
51Cr8Si2	0.45~0.55	1.00~2.00	?0.60	?0.030	?0.030	--	7.50~9.50	--	--	--	--
4Cr10Si2Mo	0.35~0.45	1.90~2.60	?0.70	?0.035	?0.030	--	9.00~10.50	0.70~0.90	--	--	--
85Cr18Mo2V	0.80~0.90	?1.00	?1.50	?0.040	?0.030	--	16.50~18.50	2.0~2.5	--	--	V: 0.30~0.60
55Cr20Mn5Ni2N (21-2N)	0.50~0.60	?0.25	7.00~10.00	?0.040	?0.030	1.50~2.75	19.50~21.50	--	--	0.20~0.40	--
53Cr21Mn9Ni4N (21-4N)	0.48~0.58	?0.35	8.00~10.00	?0.040	?0.030	3.25~4.50	20.00~22.00	--	--	0.35~0.50	C+N?0.90
50Cr21Mn9Ni4Nb2WN (21-4N WNb)	0.45~0.55	?0.45	8.00~10.00	?0.050	?0.030	3.50~5.00	20.00~22.00	--	0.80~1.50	0.40~0.60	Nb: 1.80~2.50 C+N?0.90
33Cr23Ni8Mn3N (23-8N)	0.28~0.38	0.50~1.00	1.50~3.50	?0.040	?0.030	7.00~9.00	22.00~24.00	?0.50	?0.50	0.25~0.30	--
GH14751 (inconel751)	?0.10	?0.50	?1.00	?0.015	?0.015		14.00~17.00	AL: 0.90~1.50	Ti: 2.20~2.60	Nb: 0.70~1.20	Te: 5.00~9.00
NiMoNiC80A	0.04~0.10	?1.00	?1.00	?0.020	?0.015		18.00~21.00	Fe?3.00	Cu?0.20 B?0.008	AL: 1.0~1.80 Ti: 1.80~2.70	?2.00
Ni30	?0.08	?0.50	?0.50	?0.015	?0.05	29.50~33.50	13.50~15.50	0.40~1.00	--	Nb: 0.40~0.90 B?0.010	AL: 1.60~2.20 Ti: 2.3~2.90
TC4 (Ti6-4)	?0.10	AL: 5.25~6.75	V: 3.35~4.65	O?0.40	H=0.02	Fe?0.80	Ti	--	--	?0.10	--

Packaging & Delivery

Packaging Detail:	Neutral packing, white bag, white box, carton. One bag includes one pc engine valve, one box includes 4 pcs engine valves, one carton includes 50 boxes. 20 container includes 1000 cartons or according to requirments of customers
Delivery Detail:	35-40days

Marine Engine Valve & Valve Seat (Intake & Exhause):
:

Inlet Valve ,Exhaust Valve, Valve Seat.
A variety of materials can be choosed.

1.	4-Stroke
Marine Engine
Item	Brand	Model	Remark
1	MAN B&W	L16/24
2		L20/27,V20/27
3		L21/31
4		L23/30,T23,L23H
5		L28/32,S28
6		L27/38
7		L32/40
8		L40/54
9	YANMAR	N18,N330
10		RAL170
11		HAL95,HAL225
12		6MAL-HT/T
13		KTL-HT
14		6UL-UT
15		6GL-UT/ET
16		S185-UT
17		T220L-UT/ET
18		M200,M210L
19	DAIHATSU	DK20,DK26,DK28,DK36
20		DL20,DL22,DL26,DL28
21		DS18,DS22,DS26,DS28,DS32
22		DC17
23		PS22,PS26
24	PIELSTICK	PC2-2,PC2-5,PC2-6
25	PIELSTICK	PA4,PA5,PA6,PC6
26	Chinese Engine
27		G6300,G8300,N21
28		8/6320,6/8230,8/6G320,6300
29		170,210,250,300,6150
30		CW200,CW6250,XCW200
31	SKL	NVD48A-2U
32	Others	12V230ZC,12/18V390E,MTU956,MTU396

Marine Engine Valve & Valve Seat

NOT only we can supplier Inlet Valve ,Exhaust Valve, valve guide ,Valve Seat.
BUT also we can supplier  for ENGINE VALVE, VALVE GUIDE, VALVE SEAT, CYLINDER HEAD,BLOCK, LINING, CONNECTING ROD,CRANKSHAFT,CAMSHAFT, ENGINE TAPPET,ROCKARM,OIL PUMP,INJECTION,ETC....

who we are?

1.XINYI are the professional manufacturer(factory) that produce all kinds of engine valves,we have motorcycle valves, diesel engine valves ,auto engine valves and so on. we are a manufacturer, we can give you the best price and best material.We have exported many years and many countries.
We have passed ISO 9001 and ISO/TS 16949.

2. our engine valve kind is complete ,the quality is frist-class, the price is reasonable. We have advanced management and excellent equipment.We have two kinds of material,the good and normal, good  material: INLET VALVE IS SUH3(4Cr9Si2) ; EXHAUST VALVE IS SUH35(21-4N), normal material:  INLET VALVE IS SUH1(40Cr) ; EXHAUST VALVE IS SUH3(4Cr9Si2).

3. Our engine valves are suitable forTOYOTA,AUDI,BESFORD,BMW,CATERILLAR,CUMMINS,DAF,DAIHATSU,DAEWOO,FORD,FIAT,HILLMAN
,HINO,HONDA,HYUNDAI,ISUZU,KAWASKI,KIA,LADA,LEYLAND,LISTER,MAZDA.BENZ,MITSUBISHI
,NISSAN,OPEL,PAYKAN,PERKINS,PEUGEOT,ROVER,SUBARU,SUZUKI,VOLVO,VOLKSWAGEN AND SO ON.

4. We have all kinds of valve techniques, entire material valves, double mttal friction welding , small soldering terminal pin, small soldering alloy, shaft chromium-plating , surfacing nitration treatment.Of course , we can produce engine valves according to your samples .

If you don't find out the parts you want here, please just send us an inquiry. We can produce valves according to your sample & draft.
*Contact detail:
If any interested or question,please feel free to contact with us!We will try our best to serve you well with competitive prices and reliable quality!

ANQING XINYI AUTOPARTS CO.,LTD

CONTACT: HEDY HU
CELLPHONE: 86-13362881875
Tel: +86-556-5675008/5171008/5171001
Fax:+86-556-5171000
Wedsite:  http://xytosan.en.made-in-china.com/             http://www.osvat.cn/
