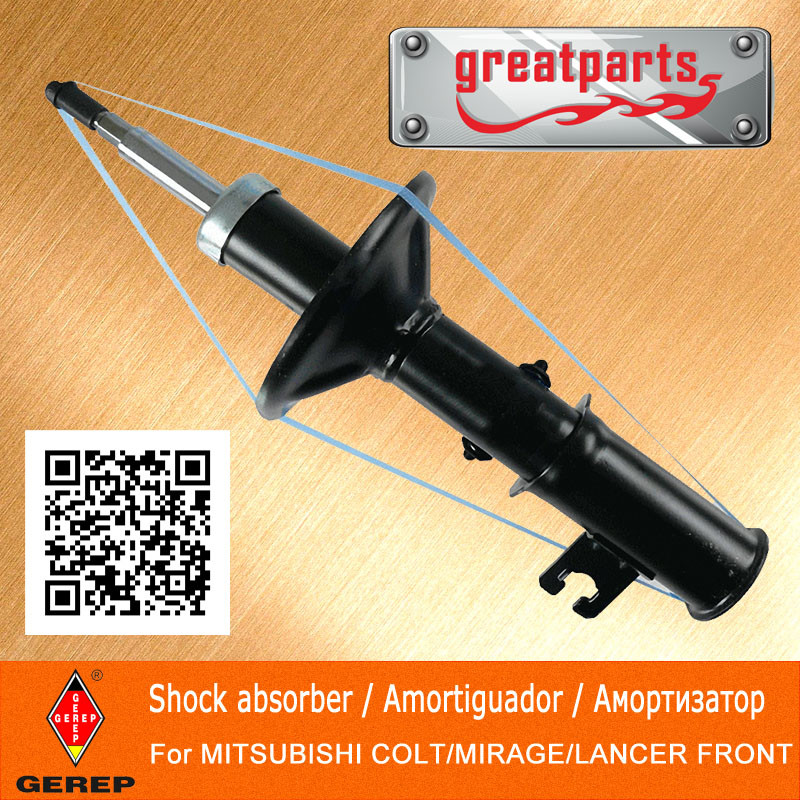

Manufacturers of Shock Absorber for Mitsubishi Car Shock Absorber

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
100.0	US $ 0.1/ Piece

Price:US $0.1 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Jul 01, 2015 To Sep 17, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:MB349835 MB518032 MB518835

Part:Dampers

Position:Front

Type:Gas-Filled

Spring Type:Coil Spring

Spring Material:Steel

Structure:Double Cylinder

Application:Mitsubishi

Brand:Gerep

Damping Force Direction:Single Effect

Categories:Auto Spare Parts

Products:Shock Absorber

Location:Zhejiang, China

Painting Color:Customized Color Is Available

Painting Style:Shining or Matte

Packing Box:Customized Color Is Available

Engrave:Customized Design Is Available

Delivery Date:45~60 Days

Transportation:by Sea, Train or Air

Quality Guarantee:30000 Kms

Export Markets:Global

Additional Info.

Trademark:GEREP

Packing:Gerep Color Package and Customized Package.

Standard:TS/SGS 16949

Origin:Zhejiang

HS Code:870880100

Production Capacity:50000 PCS/Month

Product Description

TECHNOLOGY INTRODUCTION:

S/N.	Material speciation	Top quality
1	Piston Rod	The piston rod, larger in diameter to increase the strength, is hard-chrome plated, induction hardening , and fine polished for greater resistance to corrosion, thus, assuring of smooth action.
2	Oil Seal	The special Multi-slip oil seal, made of oil and wear-resistant high quality synthetic rubber, having high sealing efficiency to keep vital oil and gas in and dirt out of the cylinder.
3	Rod Guide	The sintered iron rod guide with a PTFE-bushed sliding surface, assures smooth rod action with minimal resistance and wear.
4	Nitrogen Gas	Nitrogen gas is filled in the reservoir except hydraulic type shock absorbers.
5	Rebound Stopper	A rebound stopper, made of a high quality synthetic rubber, or resin, is installed on the piston rod to act as the rebound stop.
6	Pressure Tube	The pressure tube, with a precision sliding surface mirror-like finish is designed to withstand tremendous internal working pressures, thus, providing greater reliability.
7	Piston Valve	Unique automatic control rebound disc valve, which automatically adjusts to all ride conditions, is designed to assure maximum performance and smooth ride control.It also provides instant response for full performance without any time lag.
8	Absorber Oil	Our absorber oil with constant viscosity, blended with chemical additives provide optimum operating performance keeping its efficiency, in any weather conditions.
9	Bottom Valve	Compression disc valve, which provides excellent performance, has automatic control actions similar to the rebound piston disc valve.

TRADE CONDITION:

1. RFQ - Request for quotation

We could identify shock absorbers by OEM No. or other brands part number which list following ( KYB, TOKICO, SACHS. BOGE, Bilstein, AL-KO, KONI, SABO, WEBCO, RECORD, MONROE, Gabriel, Cofap, Corven, NAKATA, Ultima, etc. )

Please send RFQ to our email to know our latest prices.

2. MOQ - Minimum order quantity

Our MOQ is 100 Pcs for each item, but if there are few items that we have in stock, the MOQ will not be indicated.

3. Customized brand packing box

We could accept customerized brand packing box based on MOQ 3000 pcs. If customerized brand order quantity less than 3000 pcs, a extra charge for printing box will be added in commercial invoice.

4. Delivery time: 45~60 days.

5. Payment term: 1> L/C 2> T/T

SHOCK ABSORBER SUIT FOR ALL MITSUBISHI SERIES:

Application models for MITSUBISHI	Year
3000 GT (Z16A)	06.92-08.99
CANTER Pritsche/Fahrgestell (FB4_, FE4_)	09.92-09.96
CARISMA (DA_)	07.95-06.06
CARISMA Stufenheck/Saloon/avec coffre (DA_)	09.96-06.06
COLT LANCER Station Wagon/Estate/Break (A7_K)	01.78-09.79
COLT I (A15_A)	12.78-03.84
COLT II (C1_A)	10.82-04.88
COLT III (C5_A)	10.86-05.92
COLT IV (CA_A)	03.92-04.96
COLT V (CJ_A)	09.95-07.05
COLT VI (Z_)	06.04-
CORDIA (A21_A, AB)	10.82-12.86
CORDIA (AC)	11.84-07.89
ECLIPSE I (D2_A)	12.89-12.95
ECLIPSE II (D3_)	04.94-04.99
ECLIPSE III (D5_A)	04.99-06.05
FORTE
FTO (DE 2A, DE 3A)	10.94-08.97
GALANT I Station Wagon/Estate/Break (A12_V)	01.79-08.80
GALANT II (A16_)	09.80-05.84
GALANT II Station Wagon/Estate/Break (A16_V)	09.80-05.84
GALANT III (E1_A)	06.84-12.87
GALANT IV (E3_A)	11.88-12.92
GALANT IV Stufenheck/Saloon/avec coffre (E3_A)	11.87-10.92
GALANT V (E5_A, E7_A, E8_A)	11.92-10.96
GALANT V Stufenheck/Saloon/avec coffre (E5_A, E7_A, E8_A)	11.92-08.96
GALANT VI (EA_)	09.96-10.04
GALANT VI Station Wagon/Estate/Break (EA_)	09.96-10.03
JEEP
L 200 Pick-Up (K_4T)	11.86-08.96
L 200 Pick-Up (K6_T)	06.96-03.03
L 300 Bus/Familial (LO3_P/G, L0_2P)	05.80-02.87
L 300 Bus/Familial (P0_W, P1_W, P2_W)	11.86-05.04
L 300 Kasten/Box/Furgón/Van (L03_P)	05.80-02.87
L 300 Kasten/Box/Furgón/Van (P0_W, P1_W)	11.86-02.06
L 300 Pritsche,Fahrgestell / Flatbed,Chassis (L03_P)	05.80-04.94
L 300 Pritsche,Fahrgestell / Flatbed,Chassis (P1_T )	04.94-
L 400 Bus/Familial (PAOV)	06.96-
L 400 Kasten/Box/Furgón/Van (PAOV)	06.96-
LANCER F II (A17_)	03.83-09.86
LANCER III (C1_A, C6_A)	11.83-06.90
LANCER III Station Wagon/Estate/Break (C1_V, C3_V)	09.85-06.92
LANCER IV (C6_A, C7_A)	04.88-05.94
LANCER IV Stufenheck/Saloon/avec coffre (C6_A)	04.88-06.92
LANCER V (CB/D_A)	06.92-07.96
LANCER Schrägheck	09.92-07.96
LANCER Coupe (CC)	09.92-07.96
LANCER V Station Wagon/Estate/Break (CB_W, CD_W)	12.92-10.03
LANCER VI (CK/P_A)	09.95-09.99
LANCER Coupe	07.96-09.04
LANCER Kombi (CS_W)	09.03-12.07
LANCER Stufenheck (CS_A)	08.03-
LANCER Stufenheck (CY/Z_A)	01.08-
LANCER SPORTBACK (CX_A)	06.08-
MAGNA Stufenheck (TR)	04.91-05.99
MAGNA Stufenheck (TH)	06.98-08.05
MAGNA Stufenheck (TM)	05.85-10.91
MAGNA Stufenheck (TN)	04.87-10.91
MAGNA Station Wagon (TS)	03.94-02.97
MAGNA Stufenheck (TP)	06.89-04.92
MAGNA Stufenheck (TS)	03.94-02.97
MAGNA Stufenheck (TE)	04.96-05.97
MAGNA Stufenheck (TF)	05.97-03.99
MAGNA Station Wagon (TR)	10.91-03.94
MAGNA Stufenheck (TJ)	08.00-01.04
MAGNA Stufenheck (TL)	06.03-09.04
OUTLANDER I (CU_)	02.03-10.06
OUTLANDER II (CW_W	11.06-
PAJERO I / MONTERO I (L04_G, L14_G)	12.82-12.91
PAJERO I / MONTERO I (L04_G) Canvas Top/open off-road vehicle/carrosserie ouverte	12.82-11.90
PAJERO II / MONTERO II (V2_W, V4_W)	12.90-04.00
PAJERO II / MONTERO II (V2_W, V4_W) Canvas Top/open off-road vehicle/carrosserie ouverte	12.90-04.00
PAJERO III / MONTERO III (V60)	04.00-01.07
PAJERO CLASSIC (V2_W)	06.02-
PAJERO / MONTERO SPORT (K90)	11.98-
SANTAMO	03.99-
SAPPORO III (E16A)	06.87-08.90
SIGMA (F16A)	12.90-07.96
SIGMA (GE)	10.77-12.80
SIGMA SCORPION (GE)	03.78-06.79
SIGMA Station Wagon (GE)	09.78-12.80
SIGMA SCORPION (GH)	07.79-10.80
SIGMA SCORPION (GJ, GK, GL)	11.80-09.85
SIGMA Station Wagon/Estate/Break (F07W)	01.93-07.96
SPACE GEAR (PA/B/D_V/W)	05.95-05.00
SPACE RUNNER (N1_W, N2_W)	10.91-08.99
SPACE RUNNER (N50)	08.99-
SPACE STAR (DG0)	06.98-
SPACE WAGON (D0_V/W)	01.84-01.92
SPACE WAGON (N3_W, N4_W)	05.91-11.98
SPACE WAGON (N5_W)	10.98-12.04
TREDIA (A21_)	09.82-07.86
VERADA Stufenheck (KS)	05.91-
VERADA Station Wagon (KS)	05.91-05.99
VERADA Station Wagon (KR)	06.92-03.94
VERADA Stufenheck (KH)	03.99-
VERADA Stufenheck (KE)	10.96-05.97
VERADA Stufenheck (KJ)	08.00-09.04

COMPANY INTRODUCTION:

We,Zhejiang Gerep Automotive Parts MFG Co., Ltd.,is a professional shock absorber manufacture.We manufacture different kinds of shock absorber,which suit for passenger car,truck,off road,coilovers etc.We pursue high quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

GEREP SHOCK ABSORBER - CREAT VALUE FOR CUSTOMER
