Description

Details

Basic Info.

Model NO.:Bulk Cement Tank Trailer

Type:Bulk Cement Tank Trailer

Towing Pin Material:Bulk Cement Tank Trailer

Impeller Type:Bulk Cement Tank Trailer

Hook Type:Bulk Cement Tank Trailer

Universal Joint Type:Bulk Cement Tank Trailer

Brake Pad Material:Bulk Cement Tank Trailer

Towing Pin Type:Bulk Cement Tank Trailer

Towing Pin Diameter:Bulk Cement Tank Trailer

Differential Gear Type:Bulk Cement Tank Trailer

Independent Suspension Type:Bulk Cement Tank Trailer

Shape:V or W or Others

Axles:2 or 3 Pieces, Fuwa or Huajing or BPW Brands

Tire:12r22.5, or Other Type

Landing Gear:Jost(C200t)

King Pin:Jost 2.0 or 3.5 Inch

Suspension:Mechanical or Air Suspension

Tanker Body and End Plate Material:5mm or 6mm Carbon Steel

Compressor:10m3 or 12m3

Pneumatic Braking System:Wabco Brand

Shipping Terms:by Bulk Cargo Carrier or Flat Rack

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:Tongya

Packing:Waxed Before Shipping

Standard:CCC, ISO9001

Origin:China

HS Code:87163190

Production Capacity:500units/Month

Product Description

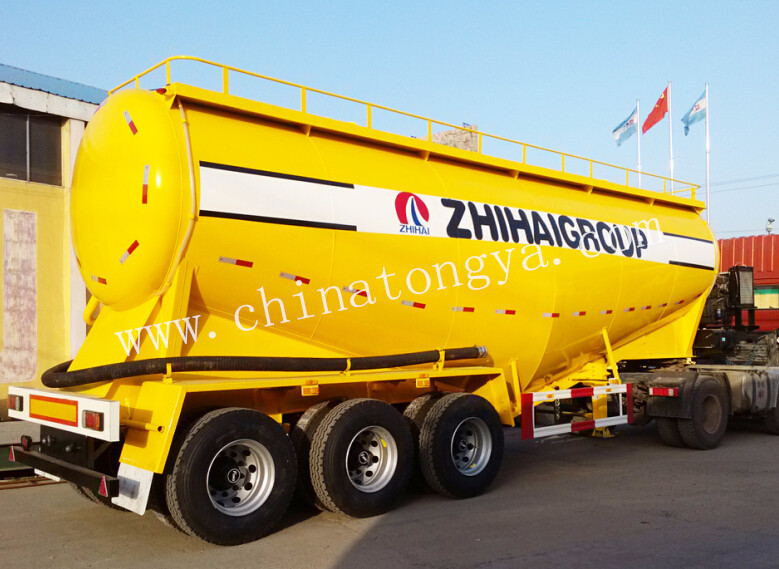

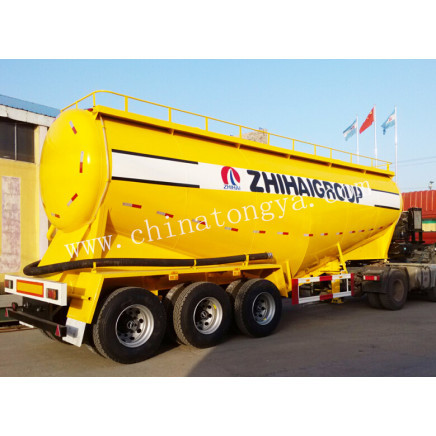

Factory Tongya bulk cement tank truck trailer/3 axles bulk cement tank trailer.

Shandong Liangshan Tongya Automobile Co., Ltd. is an appointed enterprise to produce and refit automobiles and trailers approved by the Development and Reform Commission of China. Our company is the first private enterprise with products listed in Public Notice on automobile refitting for management. We integrate scientific research development, product design, production and sale together.

Main Dimensions of bulk cement tank trailer
Tank Body
Shape	Optional(One Silo with V type or Two, Three Silos Design)
Dimension	12000×2490×3900mm(Adjustable as your requirements)
Tare weight	About 7.5-15T
Total Volume	30m³-68m³
Tanker Body Material	5mm or 6mm Q235 carbon steel
End Plate	5mm or 6mm Q235 carbon steel
Diesel Engine	WEICHAI 4100/4102 or other brands
Compressor	BOHAI 10m³/12m³or other brands
Manhole Cover	Cabon steel. Diameter: 500mm
Discharging Valve	Diameter is 3 or 4 inches
Discharging Pipe	3 or 4 inches rubber hose, 1pcs, 6m/each
Cat Walk	With(Common model or special design)
Chassis of bulk cement tank trailer
Main Beams	Weldding Design, Q345 carbon steel
Axle	2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand
Landing Gear	JOST(D200T)or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical Suspension(Germany or America type) or Air Suspension
Leaf Spring	90(Width)mm×13(Thickness)mm×10(Layer) or 100(Width)mm×12(Thickness)mm×12(Layer)
Pneumatic Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two 45L air tanks
Rim	9.00-22.5/8.00-20/8.5-20
Tire	12.00R22.5, 315/80R22.5, 11.00R20, 12.00R20
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo or RORO

Factory Tongya bulk cement tank truck trailer/3 axles bulk cement tank trailer.

As the leading bulk cement tank semi trailer manufacturer from 1988, we have an experienced and strong technical department to design as your exact requirements, and more than 1100 skilled workers can guarantee the timely production.

You are warmly welcome to come to visit our factory, we will pick you up from the airport!
