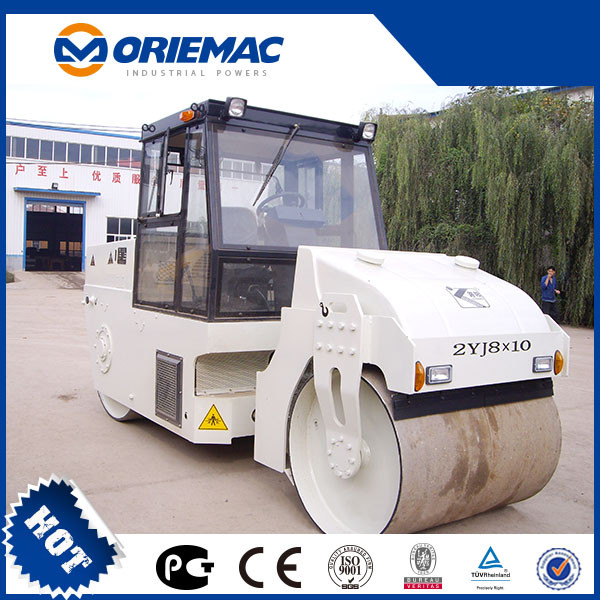

Lutong Vibratory Roller 10 Ton Ltc210

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 10000/ Piece

Price:US $10000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Apr 17, 2015 To Jul 15, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LTC210

Type:Road Roller

Working Method:Vibration

Axle:Biaxial Dual-Drum

Color:Optional

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Nude Packing

Standard:ISO

Origin:Jiangsu, China

Production Capacity:500/Month

Product Description

Lutong vibratory roller 10 ton LTC210

1. Dongfeng Cummins engine
2. Sauer driving pump & motor
3. Air conditioner
4. ROPS cab

Full hydraulic two wheel drive and vibration dual freuencies and vibration amplitudes
Full hydraulic center articulated steering, patented crad mechanism the driver's cabin is spacious and comfortable, equipped with rotary working seat, making the opration more flexible and convenient the drive 's cable Can be turned on one side as a whole, to facilitate maintance fork-type frame, good hold down property

MODEL		LTC210
Operating mass	Kg	12000
Static linear load	N/cm	342
Vibrating amplitude	Mm	1.8/0.9
Vibrating frequency	Hz	29/35
Centrifugal force	KN	260/160
Max. Travel speed		12
Grade ability	%	35
Turning radius	mm	7000
Overall dimension	mm	5820x2278x3050
Ground clearance	mm	472
Vibration drum width	mm	2100
Drum rim thickness	mm	24
Wheelbase	mm	3080
Diesel model		6BT5.9
Diesel power	Kw	110
