LPG Tank Trailer for LPG Cooking Gas Propane Delivery in 25ton 60 Cbm

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

LPG Tank Trailer for LPG Cooking Gas Propane Delivery in 25ton 60 Cbm

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 41980/ Piece

Price:US $41980.0 / Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From May 06, 2015 To Aug 05, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Type:Axle

Load Capacity:25T

Certification:ISO9001, CCC, SGS

Wheel Base:6865+1310+1310mm

Tread:1820mm

Grade:Medium Duty

Towing Pin Material:Alloy Steel

Impeller Type:N/a

Hook Type:N/a

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:"I" Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:N/a

Connecting Type:Semi-trailer

Shape:Cylinder

Axle Number:3

Tire Number:12

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Steel

Condition:New

Capacity Options:5 Cmb to 100cbm

Tanker Material:Q345r / Q370r

Axle:BPW or Fuwa

Beam:High Tension Steel

Landing Gear:Jost Brand

Tyre:12.00r20, 12r22.5

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:CLW

Packing:Bulk Shipment, Roll-Roll,

Standard:ISO9001, ISO 14001, CCC,

Origin:Hubei, China

HS Code:87163990

Production Capacity:20, 000 Units/ Year

Product Description

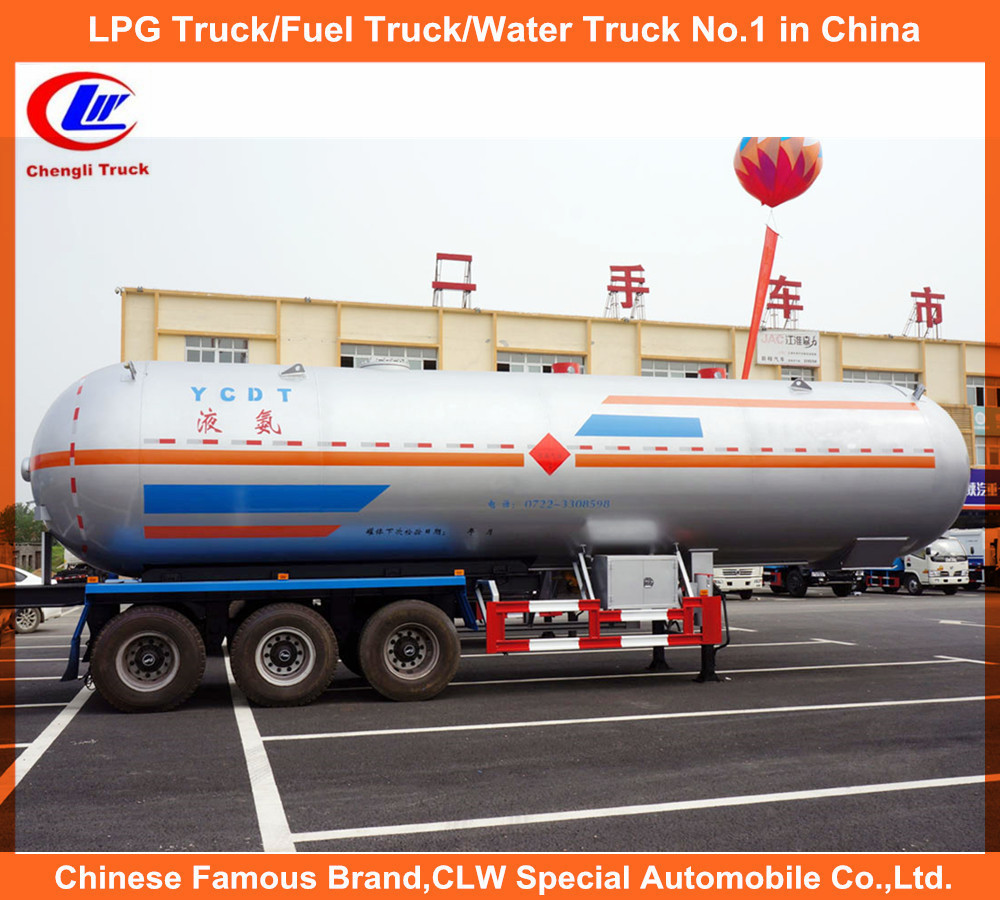

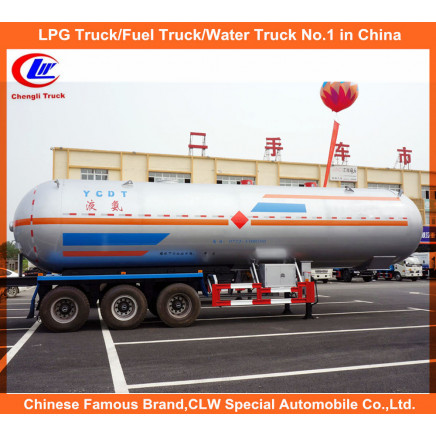

60 CBM LPG Tanker Trailer with 3 Axle

1. Material: Q345 / Q370 High Strength Carbon Steel
2. Volume: 5CBM to 100CBM tank capacity for choice
3. Axle: BPW or FUWA brand
4. Tyre: Radical or Tubeless tyre for choice
5. Landing Gear: JOST brand
6. With available protection rail, sun visor for choice

Technique Parameters

Item		Unit	Parameter
Product name			3 axle semi-trailer
Practical capacity		M3	60
Gross weight		kg	40000
Curb weight			15430
rated loading capacity			25200
Overall dimension		mm	24701212840
Axle			3
Wheelbase			5100+1320+1320
Tread	Front tread		-
	Rear tread		1840/1840/1840
Front/rear suspension		mm	-/1745
Leaf spring			-7/7/7
Fifth wheel max loading		kg	16000
Tyre specification			12.00-20, 12R22.5
Exclusive configuration	Tank material	Q345R
	Standard configuration	12T BPW axle, , single fluid, two valve box. Valve: safety valve, emergency cut-off valve, Gauge: pressure gauge, temperature gauge, Liquid Indicator & 2 valve box, Leg: JOST Hydraulic legs, #50 or #90 mm traction pin
	Other	Filling Medium: LPG or propane Design pressure 1.61Mpa, Design temperature 50°C, Filling ratio:0.42t/m3, Corrosion allowance:1mm dimension of tank:

Our Service:

Warranty:
One year's warranty for major 3 components, including Engine, Gear Box, Axles.

Spare Parts:
1. Supplying quick-wearing parts at the truck delvery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service:
Engineer service in customer's country. Email & Phone call tracking for each truck on timely manners.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Important Figure of Our Factory Chengli:

3000 Acres(2 million SQM) Factory Premises with New factory Under construction
3000 Workers with Professional Training
300 Different Types of Trucks Available for Choice
300 Million Total Sales Volume for 2014
More Than 10 Years Manufacturing Experience
