Description

Details

Basic Info.

Model NO.:CLW945YHBG

Type:Axle

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Less Metal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Anti-slip Type

Independent Suspension Type:Trailing Arm Type

Volume of LPG Tanker Semitrailer:45000 L to 56000 L

No Axles:2 Axles and 3 Axles

Axle Brand:BPW Brand ; Fuwa Brand

Filling Material:Propane; Cooking Gas

Filling Coefficient:0.42ton/Cbm to 0.58ton/Cbm

Baffle:4-5 PCS Inside

Safety Control System:Safety Valve, Pressure Meter, Cut-off Valve

Tank Body Material:Q345; Q370

King Pin:Jost Brand, 50# or 90#

Tire Specification:11r22.5 or 12r22.5 Tubeless

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:Naked or Waxed Before on Board

Standard:CCC, ISO 9001, TS

Origin:Suizhou, Huibei

HS Code:73110090

Production Capacity:200 Sets/Month

Product Description

Quik details of our lpg semitrailer

Product name: LPG gas semi-trailer
Material: Q345, Q370
Volume of the LPG semi-trailer: 45000 liters - 60000 liters
No. axles: two axles ; three axles
Axle brand: BPW: Fuwa
Design pressure: 1.77 Mpa

LPG tanker semi trailer brief

1)Designing pressure:1.77Mpa Designing temperature:-20C-50C

2)The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity.light weight and high efficiency.

3)We inspect the quality of product strictly,ensure that A and B type of welding seam pass the examination of level two radiographic test,C and D type of welding seam pass the examination of level one radiographic test.

4)There are domestic or imported safety accessories with high quality ,its matching is complete.

5)The anticorrosion coating of LPG tanker adopt the following process, sandblast, spray painting ,purging and so on

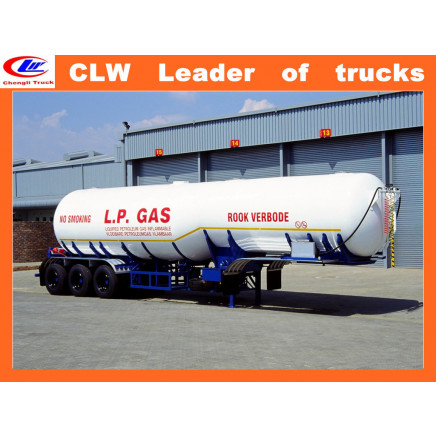

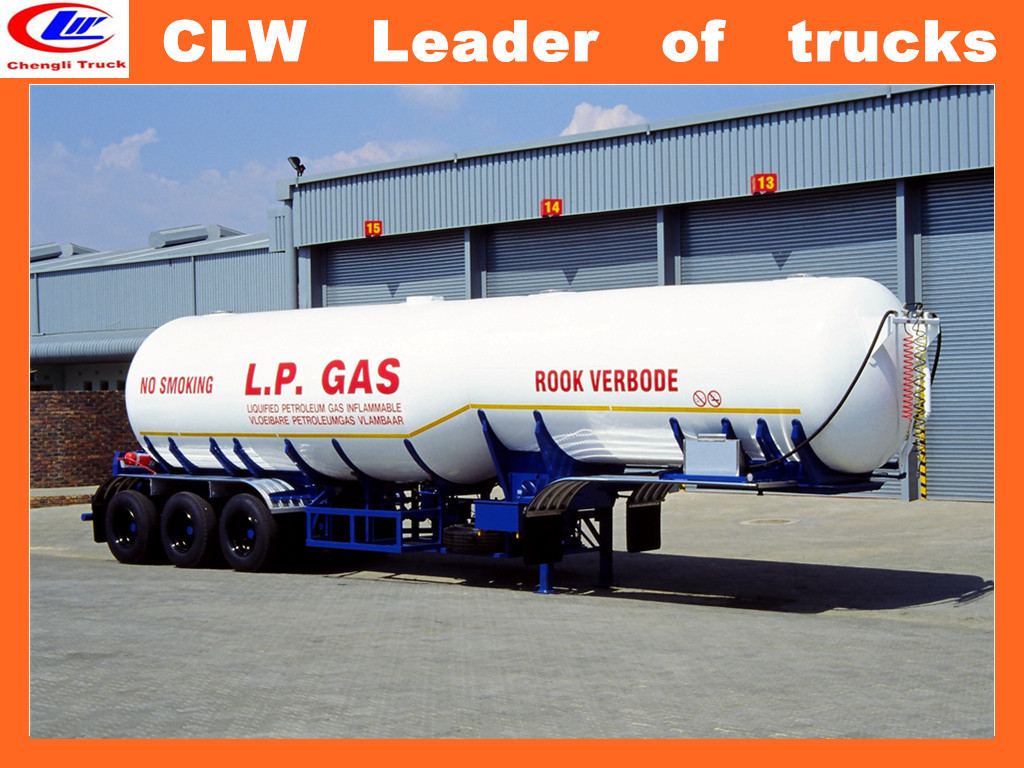

The pictures of our LPG semitrailer

Key parts of the LPG Semi-trailer
LPG Tank Semitrailer 45cbm-60cbm LPG Tanker Semitrailer Tri-Axles for Cooking Gas Transportation
parameter of the lpg semitrailer

Item			Unit	Parameter
Product name				3 axle semi-trailer
Practical capacity			M3	45.3
Gross weight			kg	40000
Curb weight				12560
rated loading capacity				2740
Overall dimension			mm	1136024903980
Axle				3
Wheelbase				5100+1320+1320
Tread		Front tread		-
		Rear tread		1840/1840/1840
Front/rear suspension			mm	-/1745
Leaf spring				-7/7/7
Fifth wheel max loading			kg	16000
Tyre specification				12.00-20
Exclusive configuration	Tank material		Q345R
	Standard configuration		12T BPW axle, safety valve,single fluid two valve box.hydraulic legs,traction pin,liquid Indicator,pressure gauge,temperature gauge,emergency cut-off valve,valve box,fire suppression bottle,spark hider cover,anti static grounding tape,protective guard,tyre protective shield.
	Other		Filling Medium:liquid ammonia:design pressure 2.16Mpa,design temperature 50°C,filling ratio:0.52t/m3,corrosion allowance:1mm:dimension of tank:10924*2426mm .
	Standard configuration		GB150-1998<Steel pressure vessels>,Supervision regulation on safety technology for pressure vessel,Supervision regulation on safety technology for Liquefy gas tank truck.

LPG Tank Semitrailer 45cbm-60cbm LPG Tanker Semitrailer Tri-Axles for Cooking Gas Transportation

Chengli Special Automobile Co., Ltd
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.
