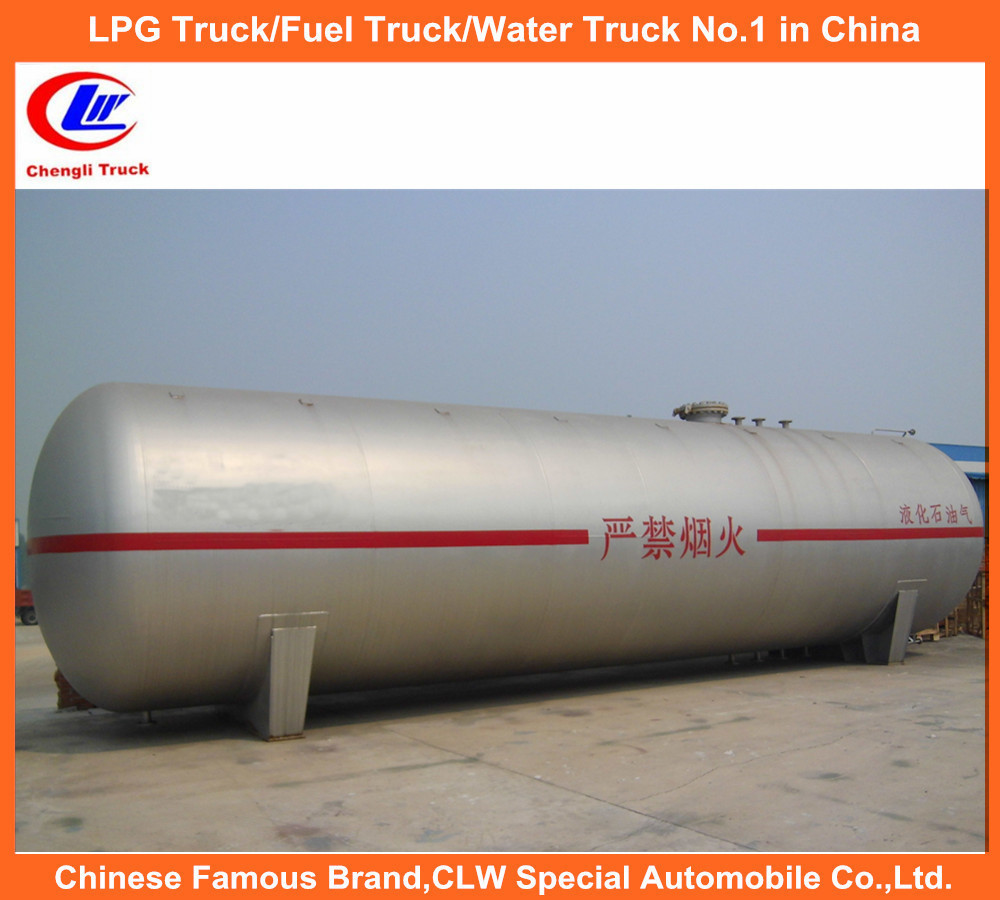

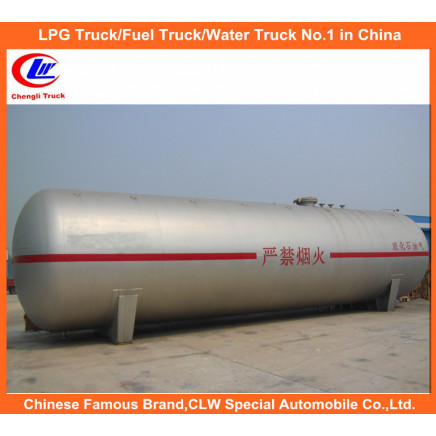

LPG Storage Tank 100cbm with 42ton Loading Capacity with Safety Valve

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms:L/C, T/T, D/P, Paypal, Money Gram, Western Union

Trademark:CLW

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Carbon Steel

Pressure:1.6MPa?p<10.0MPa

Storage Medium:Flammable/Toxic

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Volume:20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 100cbm

Loading Medium:Gas, Oil, Petroleum, Propane, Pentane Tank

Mechanical Property Test:Tensile, Strength, Impact Test for Butanetank

Designed Pressure:1.77MPa

Corrosion Allowance:1mm

Medium Density:420kg/M3

Safety Parts:Pentane Tank Discharging Valve, Manholes Cover, D

Shape:Round Shape or Ellipse

NDT:Mt Ut Rt 100% Perform for Pentane Tank

R&D:CAD and Cae Technology

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:RO-RO, Bulk Shipment with Waxing

Standard:ISO9001, CCC

Origin:Hubei

HS Code:8901101010

Production Capacity:1000 Set Per Year

Product Description

Heavy Duty ASME Standard 100cbm LPG Storage Tank

1. LPG pressure vessel
2. For gas, oil, petroleum use
3. Anti-corrosion, anti-acid

Chengli Special Automobile Co., Ltd
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.

Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
13. Pressure Vessel

If you are interested in our trucks, pls contact me, I will send our best quotation to you.

DIMENSIONS
Volume of Tank (cbm)	100
Tare Weight (kg)	20410
Capacity (kg)	42000
Thickness of Shell (mm)	16
Thickness of Endplate (mm)	18
tank cylinder diameter (mm)	3100
External Dimensions (mm) (length×width×height)	1386631323722
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas
Design Pressure	1.77MPa
Corrosion Allowance	1 mm
Medium Density	420 kg/ cbm
Carried Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels.
Safety Valve of Selection Fitting: Safety valve, Column magnectic reversible level meter, Pressure gauge, Thermometer, Cut-off valve
