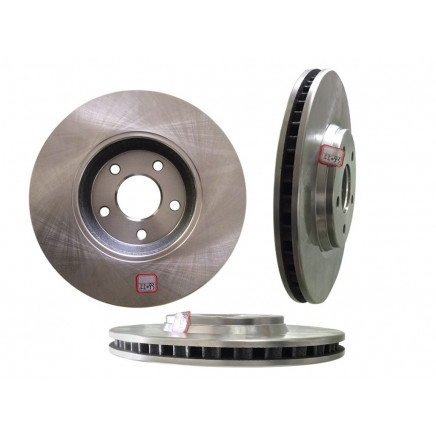

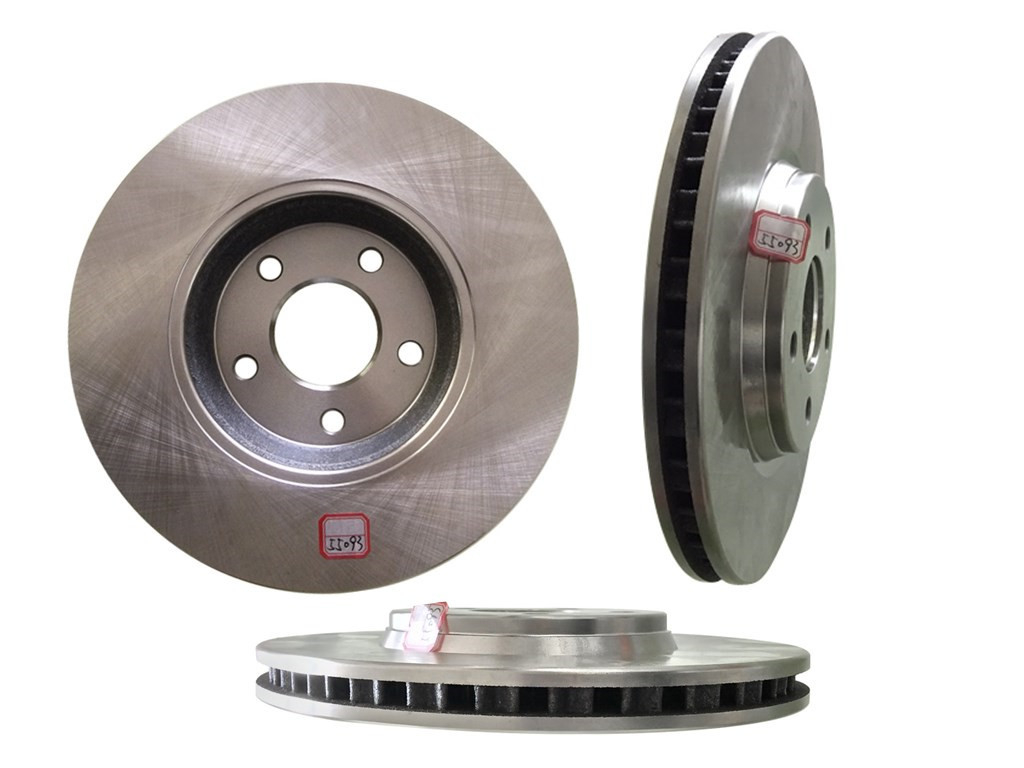

Lowest Price & High Quality & Factory Manufacture Brake Disc (55093/22705375)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$8.29 - $42.36 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 8.29/ Piece
200.0	US $ 42.36/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 02, 2015 To Jul 02, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:AMICO 55093, OE 22705375

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949, TS16949, ISO9001

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Outer Diameter:296mm

Thickness:26mm

Holes:5

Height:43mm

100% Crucial Dimension Inspection:100% Qualification

Low Noise, No Dust:Long Service Life

Solid or Vented:V

Export Markets:Global

Additional Info.

Trademark:luzao

Packing:Neutral Packing or According to The Requirements

Standard:ISO/ TS

Origin:Zouping County, Shandong Province

HS Code:87083099

Production Capacity:100000PCS Per Month

Product Description

Height : 43 mm

Outer Diameter : 296 mm

THICKNESS:26MM

Num. of holes : 5

Auto spare part brake disc
Material Requirements

1) Must meet Grade GG20 for gray iron castings.
2) Chemical Composition (Percent)

* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.

3) Microstructure:

Graphite Structure- Predominantly type A, size 3-5.
Matrix- Pearlitic with max. 15 ferrite. Free from chill

4) Physical Properties:

Tensile Strength- Min. 200 N/mm
Brinell Hardness- 190 - 230

Zouping LuZao Metal Materials Co., Ltd is located in MaTou development zone Zouping County, occupying 66000 square meters, with convenient transportation, superior water, electricity and communication condition. With 80 million RMB total assets, the company has 300 staffs, including 15 engineering technicals, 1 senior accountants, Trading Specialist ect.
The enterprise equipped with medium frequency furnace, deoxidization machine, molding production line, casting production line, machine processing and other facilities. It has clay sand casting, resin sand casting, metal mold casting, centrifugal casting, low pressure casting (gravity) etc, it can cast aluminum alloy, copper alloy, zinc alloy, magnesium alloy non-ferrous metal parts etc, according to customer demand. Formed the annual production scale of 50000 tons.
Our main products are brake disc(common brake disc, doublemetal brake disc, expressway brake disc, wheel brake disc, modified brake disc etc), brake drum, brake pad, brake rotor,steel grit, Precision seeding machine, windrower farm machinery fittings, etc. our brake disc and brake drum are widely applied in all kinds of domestic small and medium-sized cars, export all over the world, it is well received by the customers at home and abroad.
Enterprises always hold the principle of "strives for survival by the quality, seek development by good faith", to meet constantly growing demand for the new and old customers, truly regard customer as the god.
Welcome to visit and cooperate in future.

Our brake disc is well exported to North America,South America,the Middle East,South Korea,Singapore,Malaysia,United Kingdom,and Denmasrk,and enjoy a very good reputation worldwide.

Now we have more than 2,500 items in total which include almost all typical brakes worldwide,especially some newbrake parts for GM,VW,FIAT,BMW,Peugeot,Opel,Renault,Mercedes,Benz,Hyundai,Daewoo,Kia,and all Janpanese cars.

If you are interested in our product, please contact us. ,tel:0086-543-4347957
