Lowbed Truck Trailer for Heavy Duty Transportation

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

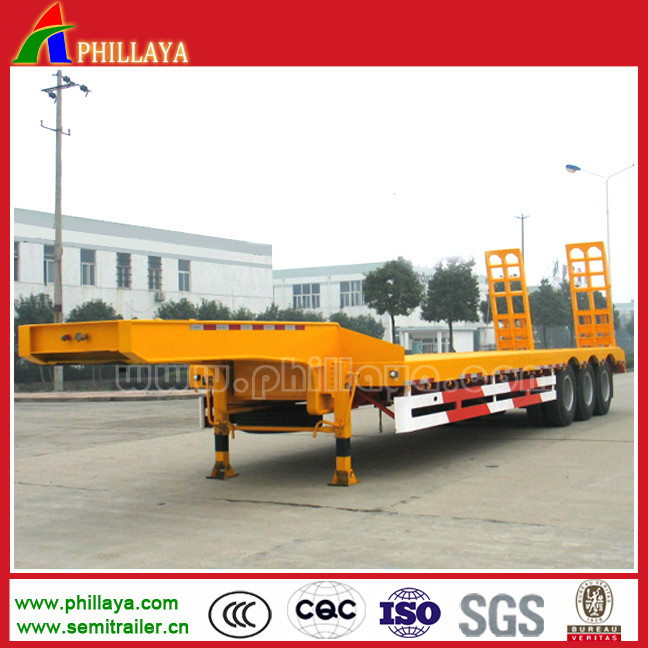

Lowbed Truck Trailer for Heavy Duty Transportation

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 12000.0-16000.0/ Piece

Price:$12000.0 - $16000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jun 08, 2015 To Dec 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:PLY9825MTA

Type:Semi Trailer

Load Capacity:80T

Certification:ISO9001, CCC, ISO/TS16949, SGS

Wheel Base:8000-9000mm

Tread:1820mm

Grade:Heavy Duty

Towing Pin Material:Carbon Steel

Impeller Type:10PCS

Hook Type:Double

Universal Joint Type:24V

Brake Pad Material:American

Towing Pin Type:Boltable

Towing Pin Diameter:2? and 3.5?

Differential Gear Type:Auto

Independent Suspension Type:Mechanic Suspenion

Connecting Type:Semi-trailer

Shape:Flatbed

Axle Number:3

Tire Number:12

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Steel

Condition:New

Color:by Clients? Needs

Paint:Anti-Rust

Logo:by Clients? Needs

Custom-Made:Available

Quality Standards:CCC ISO BV SGS

Place of Oringin:Qingdao Shandong

Trade Mark:Phillaya

Lead Time:15 Working Days

Guarantee Term:1 Year, Mainbeam Lifetime Promise

Production Ability:150 Units Per Month

Export Markets:Global

Additional Info.

Trademark:Phillaya

Packing:Containers, Bulk Ship, Road

Standard:CCC ISO

Origin:Shandong, China

HS Code:871639900

Production Capacity:150units Per Month

Product Description

ADVANTAGE:

Manufacturing since 2002;
Special design as per your requirements;
After sale support with a one-year-warranty for main beam;
Market support as to paint your logo on trailer and so on;
MOQ = 1 unit.

SPECIFICATION

All Specifications and Designs can be Customized !

30-100T LOWBED SEMI TRAILER
Model	Rated Capacity	Axles	Tires	Tire Model	Tare Weight
PLY8400GYY	30 T	2	8	825R20	7.5T
PLY8401GYY	60-80T	3	12	10.00R20	11T
PLY8402GYY	80-100T	4	16	11.00R20	14T

Place of Origin	Shangdong province, China
Color	Any color will be available
Rated Load	30-100 Tons
Tare Weight	9900 kg
Wheel Base	1310 (mm)
Place of Origin	Shangdong province, China
Color	Any color will be available
Rated Load	30-100 Tons
Suspension	Heavy Duty Leaf Spring
Front/Rear Overhang	1950 mm
Outside Dimensions	11000-19000x3000x1500 (mm) (LxWxH)
Material of the Main Beam	Q345B/ST52-3 manganese plates, automatic submerged arc, Main-beam Height 500mm, Lower flange: 20mm Upper flange: 20mm Mid Web: 12mm
Usage	For heavy duty machine, as transformer, crane, excavator transportation.
Brake System	Dual Lines Braking System With Automatic Air Chambers
Brake Air Chamber	Four double and two single chamber
Electrical System	24V, 7core socket, lights according to European standards.
Floor	3mm-5mm management plate
Tool Box	1 box of standard tools
Spare tire carrier	2 sets
Color and Logo	Depends on the buyer's requirement.
The traction pin	2' & 3.5' inter-changeable
Pin Height	According to the height of the tractor saddle.
Others: Other Size/dimension or configurations will be available by customeri-zation.

FUNCTIONS

1. This series lowbed semi trailers are mainly used in heavy duty transportation for construction or logistic companies, such as excavator, digger, mover, crane, and building materials.
2. The volume varies widely from 10 cube meters to 60 cube meters, we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs

BRIEF INTRODUCTION TO OUR FACTORY

Phillaya international trading Co., Ltd, a special vehicle manufacturing corporation with the professional experience more than 15 years, certified by the Chinese government manufacture,

Majored in semi trailer, special vehicle manufacture, our products are mainly exported to
Philippine, Bangladesh, Thailand, Myanmar, Vietnam, Nigeria, Russia, Mongolia, Congo, Kenya, Tanzania, etc...More than 20 countries

SERVICE WE PROMISED FOR EACH ITEM FROM OUR FACTORY

1.3C&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise.
2. Small Order Can Be Accepted.
3. Any Color & Logo Available
4. The Product Dimension + Specifications Can Be Designed As Your Needs

DEALING PROCESS

1. Send us inquiries on your desired product / mdel through our contact information.
2. We shall reply you within 12 hours.
3. Negotiations on your needed configuration.
4. Configuration on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. Manufacturig process updated news.
9. Production completement.
10. Shipment
11. Custom Clearance
12. A/S service for 1 year.

WELCOME TO VISIT OUR FACTORY, WE SHALL PICK YOU UP FROM THE AIRPORT. WISH THE LONG-NEW MUTUAL BENEFIT & BUSINESS RELATIONSHIP CAN BE BUILT BY OUR JOINT EFFORTS
