Lowbed Semi-Trailer

More Views

Lowbed Semi-Trailer

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 17100/ Piece

Price:US $17100.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 03, 2015 To May 11, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CTY9406

Size:13000*3000*1700

Suspension:Common Mechanical Suspension

Axle:Fuwa 13t

Leaf Spring:10 PCS Intensify

Frame Beam:Intensified Q345 Carbon Steel

Side Beam:#25mm Intensified Channel Steel

Ladder:with

Rim:8.00-20

Tire:12.00r20

Kingpin:Jost

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:TONGYADA

Packing:Naked

Standard:SGS, CCC, ISO

Origin:Shandong

HS Code:8617

Production Capacity:126units/Month

Product Description

Chassis and main parts
DIMENSION	13000mm3000mm1700mm,Size can be design depends on customers' request
AXLES	13 T/PER axle, FUWA /BPW/HJ brands for choose
RIM	8.5-20 13PCS or other sizes
TIRE	12R20 13 PCS or other sizes ,Triangle/Double Coin/Linglong
SUSPENSION	Mechanical suspension or Airbag suspension
LEAF SPRING	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 Layer
KINGPIN	JOST brand 2.0 or 3.5inch bolts type
LANDING LEG	JOST brand C200T or China brand 28Tons (Double speed)
MAIN BEAM	Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, Double plate design if payload more than 80tons down plate is 16mm-25mm ; Material is Q345B standard steel .
SIDE BEAM	16mm -25mm channel steel (Material is Q235B standard steel ).
PLATFORM	Standard 3 mm-6mm thickness checkered plate
BRAKING SYSTEM	WABCO brand emergency valve, T30/30+T30 Spring brake chamber, one piece of 45L air tank , ABS is optional
GOOSENECK	Heavy duty type
RAMP	Manual or Hydraulic type
ELECTRIC SYSTEM	Voltage is 24V / 7 ways (7 wire harness) / LED light
TOOL BOX	One piece ,equipped with 1 unit Tire spanner,1 piece sleeve and 1 piece cranking bar)
PAINTING	Complete Chassis sand blasting to clean rust, 1 coat of anti corrosive prime, 2 coats of final paint
OTHERS	Design and make the right trailer depends on customers' request

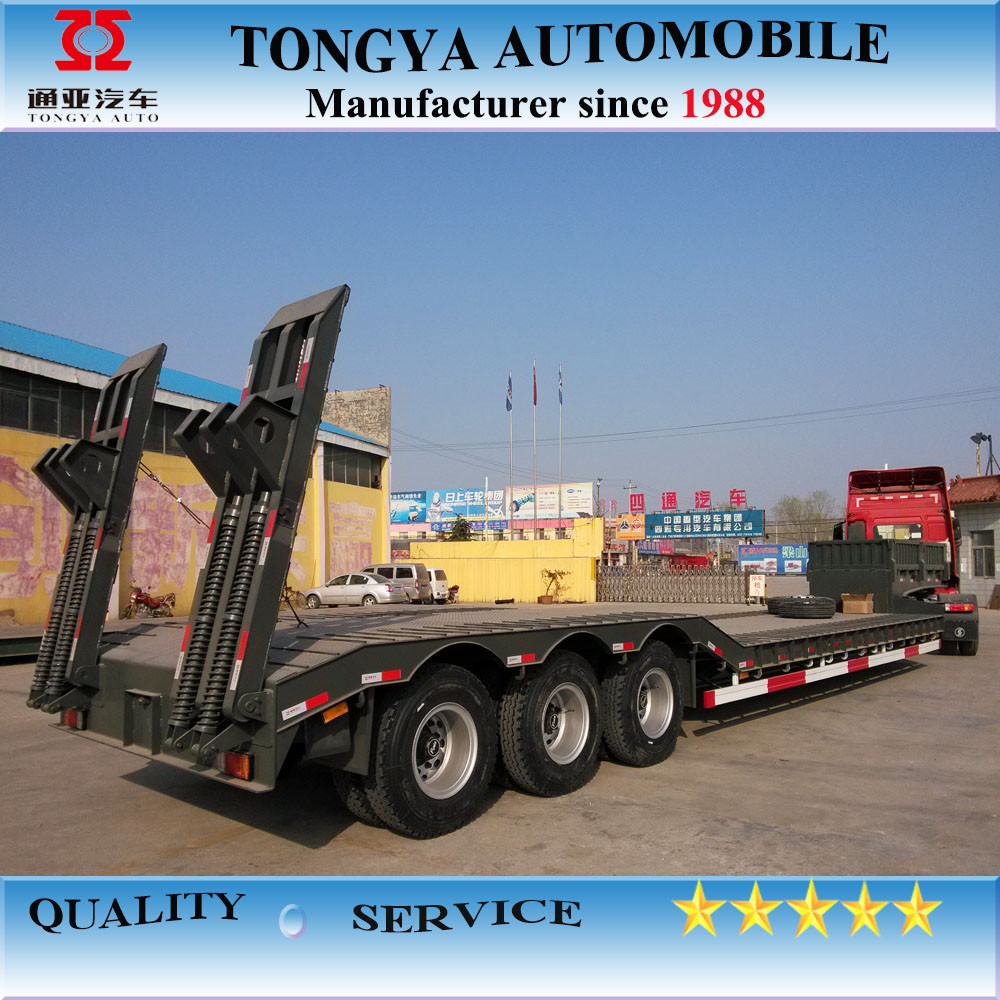

lowbed semi-trailer
Shandong Liangshan Tongya Automobile Co.,Ltd was found in 1988, Now we have over 800 employee, Annual output is over 6000units, 3 factories, more than 400sets all types machines , building area 160,000 square meters.

Products:

Flatbed semi trailer /Skeleton semi trailer/Full trailer /Lowbed semi trailer/Timber transport semi trailer/Side wall semi trailer/Storage semi trailer/Draw bar trailer/Side dumper/Rear dumper/Box semi trailer/Bulk cement tank semi trailer/Carbon steel fuel tank semi trailer/Aluminum fuel tank semi trailer/Concrete mixer/Concrete conveying pump

Our semi trailer are already well exported and accepted by the countries as follows:

Africa:

Nigeria, Zambia ,Algeria, Angola, Sudan, Burkina Faso, Ethiopia ,Niger, Malawi, Zimbabwe, Mauritania, Kenya, Ghana, Congo, Senegal, Tanzania, Mozambique, Mali, Ivory Coast Cote d'Ivoire

The Middle-East

Saudi Arabia, Lebanon, Oman, Kuwait, Jordan,

South America:

Dominica, Bolivia, Chile, Brazil.

Asia:

The Philippines, Vietnam, Laos, Indonesia, Malaysia, Uzbekistan, Mongolia

Euro:

Russia

Oceania:

Australia,Papua New Guinea, Fiji

More customers are still coming, please join us for the mutual benefit and friendship.
