Lowbed Lowboy Semi Trailer for Heavy Machinery Transportation (PLY9895CXX)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

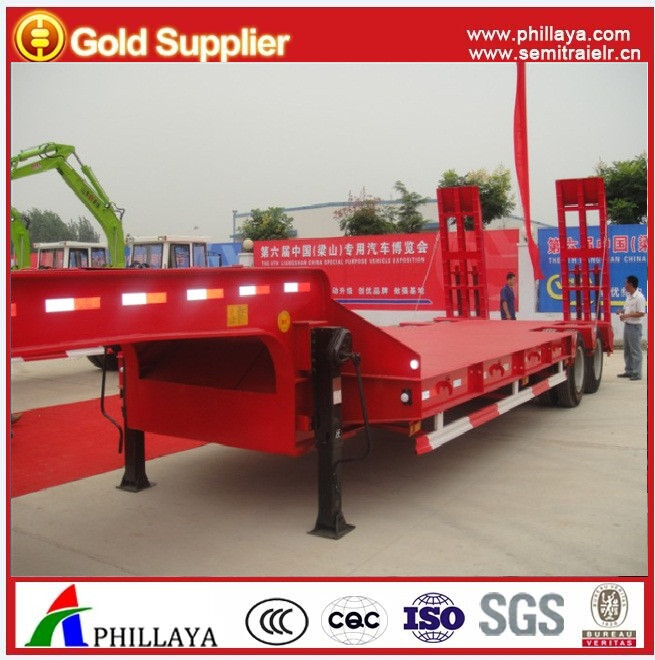

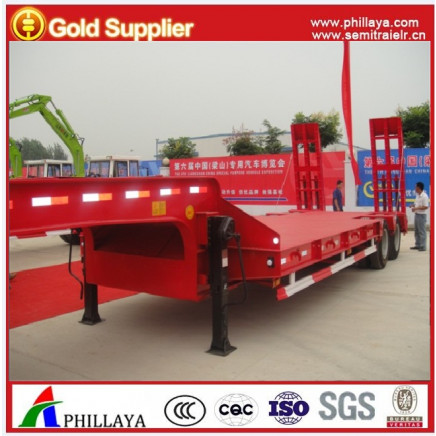

Lowbed Lowboy Semi Trailer for Heavy Machinery Transportation (PLY9895CXX)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 12000.0-16000.0/ Piece

Price:$12000.0 - $16000.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Mar 30, 2015 To Dec 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:PLY9895CXX

Type:Semi Trailer

Load Capacity:50T

Certification:ISO9001, CCC, ISO/TS16949, SGS

Wheel Base:8000-9000mm

Tread:1820mm

Grade:Heavy Duty

Towing Pin Material:Carbon Steel

Impeller Type:10PCS

Hook Type:Double

Universal Joint Type:24V

Brake Pad Material:American

Towing Pin Type:Boltable

Towing Pin Diameter:2? and 3.5?

Differential Gear Type:Auto

Independent Suspension Type:Mechanic Suspenion

Connecting Type:Semi-trailer

Shape:Low Bed

Axle Number:3

Tire Number:12

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Steel

Condition:New

Color:by Clients? Needs

Paint:Anti-Rust

Logo:by Clients? Needs

Custom-Made:Available

Quality Standards:CCC ISO BV SGS

Place of Oringin:Qingdao Shandong

Trade Mark:Phillaya

Lead Time:15 Working Days

Guarantee Term:1 Year, Mainbeam Lifetime Promise

Production Ability:150 Units Per Month

Export Markets:Global

Additional Info.

Trademark:Phillaya

Packing:Containers, Bulk Ship, Road

Standard:CCC ISO

Origin:Shandong, China

HS Code:871639900

Production Capacity:150units Per Month

Product Description

UNIQUE POINTS:
1. Factory direct sales
2. Lowest price comparing the same quality
3. High Quality, with heart-making
4.18 months warranty, main beam whole life time grantee!
5. ISO,CCC,SGS certificate

We can do according to your actual request.

top quality, best price, best service

Here provide the product sheet of low bed semi trailer series:

30-100T LOWBED SEMI TRAILER
Model	Rated Capacity	Axles	Tires	Tire Model	Tare Weight
PLY8400GYY	30 T	2	8	825R20	7.5T
PLY8401GYY	60-80T	3	12	10.00R20	11T
PLY8402GYY	80-100T	4	16	11.00R20	14T

Place of Origin	Shangdong province, China
Color	Any color will be available
Rated Load	30-100 Tons
Tare Weight	9900 kg
Wheel Base	1310 (mm)
Place of Origin	Shangdong province, China
Color	Any color will be available
Rated Load	30-100 Tons
Suspension	Heavy Duty Leaf Spring
Front/Rear Overhang	1950 mm
Outside Dimensions	11000-19000x3000x1500 (mm) (LxWxH)
Material of the Main Beam	Q345B/ST52-3 manganese plates, automatic submerged arc, Main-beam Height 500mm, Lower flange: 20mm Upper flange: 20mm Mid Web: 12mm
Usage	For heavy duty machine, as transformer, crane, excavator transportation.
Brake System	Dual Lines Braking System With Automatic Air Chambers
Brake Air Chamber	Four double and two single chamber
Electrical System	24V, 7core socket, lights according to European standards.
Floor	3mm-5mm management plate
Tool Box	1 box of standard tools
Spare tire carrier	2 sets
Color and Logo	Depends on the buyer's requirement.
The traction pin	2' & 3.5' inter-changeable
Pin Height	According to the height of the tractor saddle.
Others: Other Size/dimension or configurations will be available by customeri-zation.

@@@@~~~ MORE types available ~~~@@@@@

FUNCTIONS

1. This series lowbed semi trailers are mainly used in heavy duty transportation for construction or logistic companies, such as excavator, digger, mover, crane, and building materials.

2. The rated capacity varies widely from 30Tons to 120Tons, and the dimension different from 6100mm to 250000mm. or extension length, we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The loading deck can be skeleton or flatbed.

BRIEF INTRODUCTION TO OUR FACTORY

Phillaya trailer company, a special vehicle manufacturing corporation with the professional experience more than 20 years, approved by the Development and Reform Commission of China . Products of our company have been granted by the Ministry of Industry andInformation Technology department.. The leading products are contaienr semi trailers , petrol fuel diesel tank semi and full trailers,milk water transport stainless tank semi trailer and aluminum tank semi trailers, particle material tankers, low bed semi trailers, van type semi trailers, stake semi trailers, dump semi and full trailers, modular semi trailer, wind-blade extendable semi trailer, customized automobiles, special vehicles and so on. Our company has passed the evaluations of CCC and quality authentication of IS09001: 2008 smoothly. . our products are popular in many countires. mainly exported to
Philippine, Bangladesh, Thailand, Myanmar, Vietnam, Nigeria, Russia, Mongolia, Congo, Kenya, Tanzania, etc...More than 20 countries

SERVICE WE PROMISED FOR EACH ITEM FROM OUR FACTORY

1.3C&ISO Agreement, 18 month Guarantee Term, Main-beam Lifetime Promise.
2. Small Order Can Be Accepted.
3. Any Color & Logo Available
4. The Product Dimension + Specifications Can Be Designed As Your Needs

DEALING PROCESS

1. Send us inquiries on your desired product / mdel through our contact information.
2. We shall reply you within 12 hours.
3. Negotiations on your needed configuration.
4. Configuration on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. Manufacturig process updated news.
9. Production completement.
10. Shipment
11. Custom Clearance
12. A/S service for 1 year.

WELCOME TO VISIT OUR FACTORY, WE SHALL PICK YOU UP FROM THE AIRPORT.

WISH THE LONG-NEW MUTUAL BENEFIT & BUSINESS RELATIONSHIP CAN BE BUILT BY OUR JOINT EFFORTS !!!

More informations, pls click and inquiry to me~~~~
CONTACT:

Miss Mina

Exporting Manager

MOB: 0086 185 5320 5207

FAQ
1. Minimum order quantity: 1 set
2. Optional payment terms: T/T or L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement, such as WABCO, JOST, BPW, FUWA.
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T

If you need any help just let me know
Thanks and waiting for your early reply
Glad to receive your inquiry right now~~
Will try my best to support you

click to inquiry, then will get the good and cheap product you want~~~
