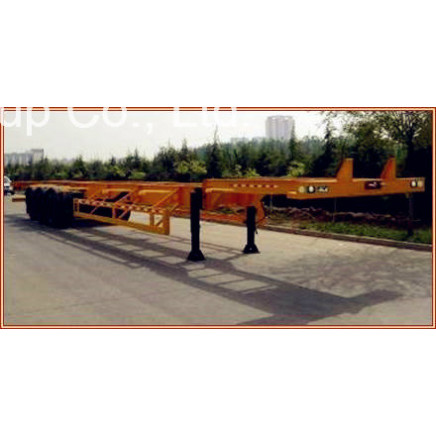

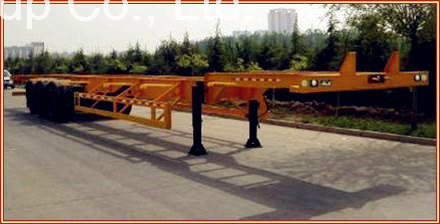

Lowbed Container Transportation Semi Trailer (QDT9281TJZP)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 18000/ Piece

Price:US $18000.0 / Piece

Trade Terms: FOB, CFR, CIF, DDP, DAP, CPT, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Feb 12, 2015 To Apr 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDT9281TJZP

Type:Semi-Trailer

Model:Qdt9281tjzp

Number of Axles:2

Curb Weight (Kg):6890

Loading Capacity (Kg):27000

Frame Dimension(Length X Width)(Mm):7150 X 2449

Wheel Specification:11.00-20 11.00r20 10.00-20 10.00r20

Wheel Track (Mm):1820/1820

Material:Steel

Scale:Heavy Duty

Certification:ISO/Ts16949, CCC, SGS

Export Markets:Global

Additional Info.

Trademark:Qingte, OEM

Packing:Nude Packing

Standard:SGS

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:12, 000/Year

Product Description

Flat bed Container Semi-trailer (QDT9281TJZP)

R & D: Adopt advanced design methods like SOLIDWORKS and AUTOCAD systems, which helps to give an proper distance allocation between towing pin and axle, guaranteeing a right distribution of loading duty.

Body Structure: Using 16Mn low alloy steel, realizing a yield strength of 1.5 times than commen steel.

Production: Adopt advanced straightener, hydraulic cutter, and plasma CNC cutter to guarantee the quality of products. Using carbon-dioxide arc welding, we could give consideration to bothe structure strength and appearance.

Model	QDT9281TJZP
Curb Weight(kg)	6890
Loading Capacity	27000
Frame Dimension(length x width)(mm)	7150 x 2449
Length from Towing Pin to 1 st axle center/front suspension center(mm)	4240/3715
Wheel base(mm)	1320
Front suspension(mm)	540
Height of main carling(mm)	450
Plate spring Qty/thickness	7 x 16
Tyre	11.00-20 11.00R20 10.00-20 10.00R20
