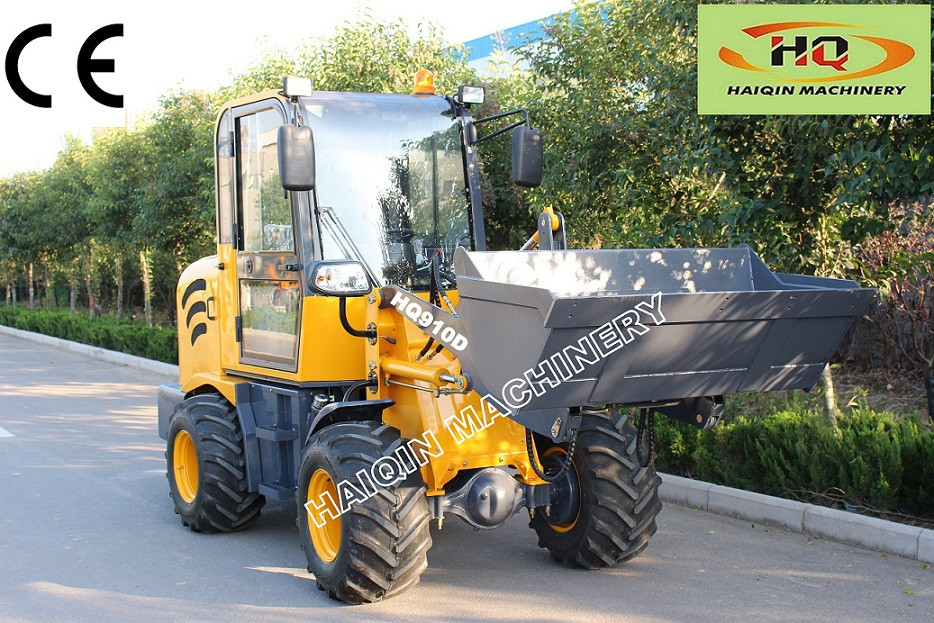

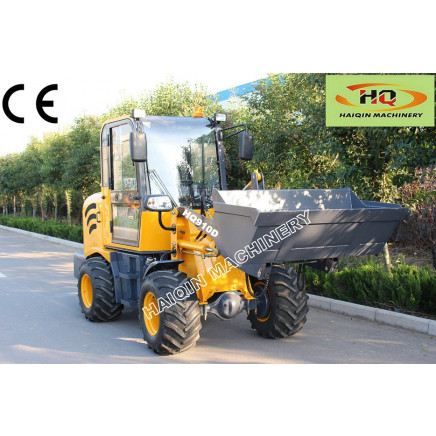

Low Price Small Agricultural Loader (HQ910D) with CE

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 6000.0-8000.0/ Piece

Price:$6000.0 - $8000.0 / Piece

Trade Terms: FOB, CFR, CIF, CIP, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Mar 11, 2015 To Oct 24, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HQ910D

Type:Multifunctional Pastoral Manage Machine

Farming Policy:Dry Cultivating Machinery

Power Source:Diesel

Operation:Continuous Running Operation

Traction Type:Traction

Drive Type:Wheel Drive

Arbor Configuration:Horizontal Axis

Certification:SGS, ECE, EU, CE, ISO,Rops&Fops

Color:According to The Buyer

Loading Weight:1000kg

Hinge Joint Tyre:European Style,Have Big Swing Angle

Steering Angle:38 Degree

Operation System:Hydrostatic Operation

Export Markets:Global

Additional Info.

Trademark:Haiqin

Packing:3 Units in One 40 Container

Standard:CE, ISO, SGS, ROPS&FOPS

Origin:Shandong, China

HS Code:84295100

Production Capacity:8000 Units / Year

Product Description

1, HQ910D Farm loader Features:

(1, Whole loader with CE Approved, E4 lamp, Joystick operation, quick hitch.

(2, The new appearance and design.

(3, The cabin have big space inside.

(4, Hydrostatic operation.

(5, The central hinged swinging with European style, have big swing angle.

(6, The steering angle is large ( 38 degree), Turning radius is small, more suitable for narrow areas work.

2, Haiqin Machinery is a professional manufacture and supplier of every kinds of mini loader, wheel loader, farm machinery, agricultural machinery in China. All of our machines get CE, SGS, Rops&Fops certificate. Now our machines can be found working in more than 30 countries, like Sweden, Germany, Finland, Norway, Denmark, Poland, Australia, Canada etc.
· Delivery time: 20-25 days after deposit.
· Payment term: T/T 30% in advance.
· Packing: 1 unit in one 20 container or 3 units in one 40 container. Triangle wood and 10mm wire fixed.
· Warranty time: 15 months, We have spare parts service center in Germany and Sweden.
· Minimum order quantity: 1 units

Contact Us--Service for you in 24 hours every day!

ENGINE SPECIFICATIONS
Engine type	Changchai N385Q( Perkins engine for option)
Cylinders	3
Max. output kW	20KW
Bucket capacity	0.5-0.6 m3
Cooling system	Water
ELECTRIC SYSTEM
Operating voltage V	24
Battery A	60
Alternator W	500
WEIGHTS
Operating weight (Standard) kg	2550
Max. lift force daN	2473
Rated load capacity (kg)	1000
Max load capacity (kg)	1200
MACHINE
Ground speed km/h
High speed	0 - 15
Low speed	0 - 7
Fuel tank capacity l	40
Hydraulic oil l	40
HYDRAULIC SYSTEM
Transmission hydraulics
Oil flow l/min	55
Operating pressure bar	160
External services
Oil flow l/min	70.4
Operating pressure bar	160
Standard tyres	7.50-16 ( 31*15.5-15 tire for option)
