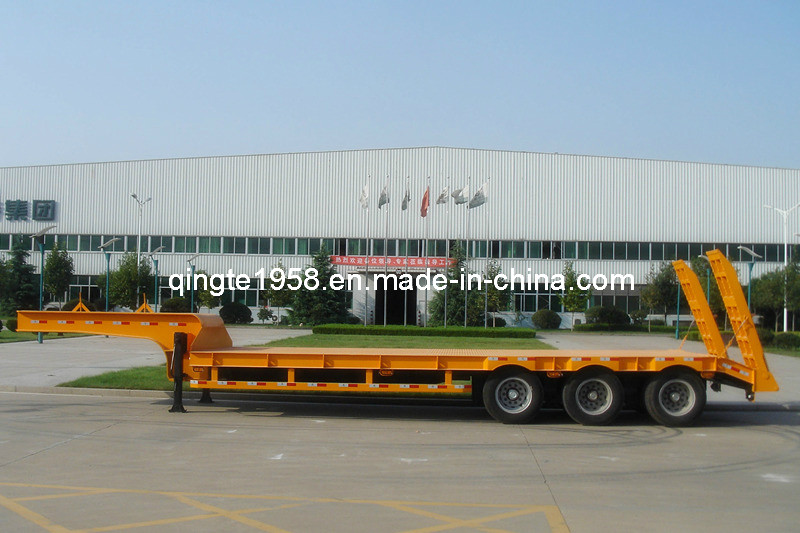

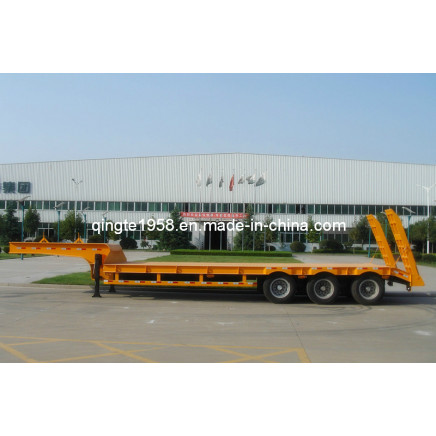

Low Bed Semi Trailer with Gooseneck (QDT9402TDP)

More Views

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 20000/ Piece

Price:US $20000.0 / Piece

Trade Terms: FOB, CFR, CIF, DDP, DAP, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jan 30, 2015 To Apr 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Login or Signup to View Links.

Description

Model NO.:QDT9402TDP

Type:Semi-Trailer

Model:Qdt9402tdp

Number of Axles:3

Curb Weight (Kg):9600, 9000

Loading Capacity (Kg):30400, 31000

Dimension (Mm):12960, 12640X3000X 2770, 1720

Wheel Specification:8.25r20, 8.25-20

Wheel Track (Mm):2280/2280/2280

Material:Steel

Scale:Heavy Duty

Certification:CE, ISO/Ts16949, SGS

Export Markets:Global

Trademark:Qingte, OEM

Packing:Nude Packing

Standard:SGS

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:12, 000/Year

Low bed semi-trailer with gooseneck
QDT9402TDP

1) Manufacturer, more than 50yrs professional experience.

2) CCC,SGS and ISO9001 certificate, one year guarantee term provided.

3) Small order can be accepted.

4) Any color and logo will be available.

5) Products can be custom-made according to your design, or diversified needs.

Low Bed Semi Trailer with Gooseneck (QDT9402TDP)

Model	QDT9402TDP
Tare Weight (kg)	9600,9000
Loading Capacity (kg)	30400,31000
Gross Weight (kg)	40000
Dimension (mm)	12960,12640x3000x2770,1720
Effective Platform Size(mm)	8780
Wheel Base (mm)	8100+1310+1310
Overhang(Front/Rear) (mm)	-/1590,-/1270
Wheel Specification	8.25R20,8.25-20
Wheel Track (mm)	2280/2280/2280
Approach Angle/Departure Angle (°)	-/19,-/23
Plate Spring Quantity	-/7/7/7,-/10/10/10
