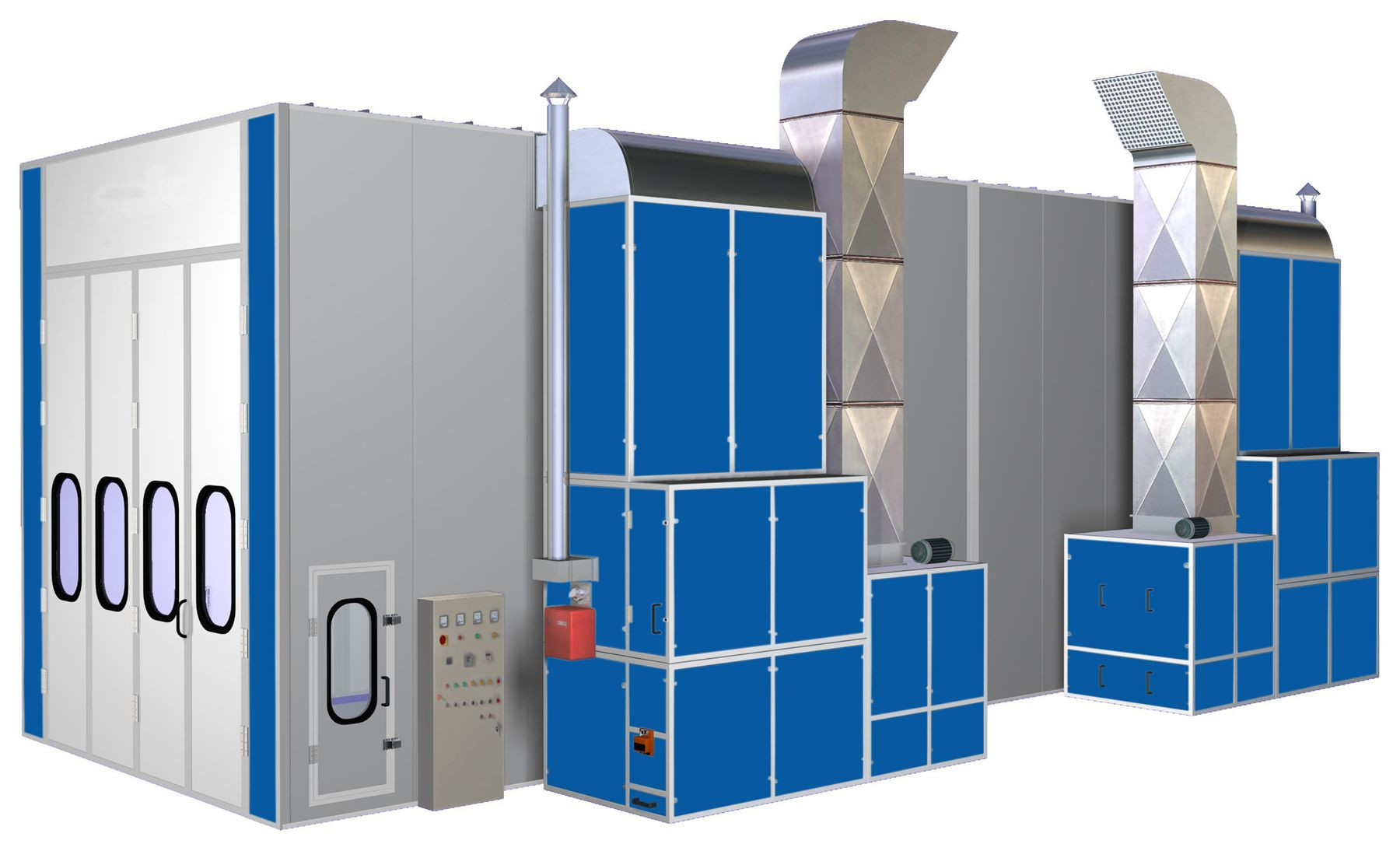

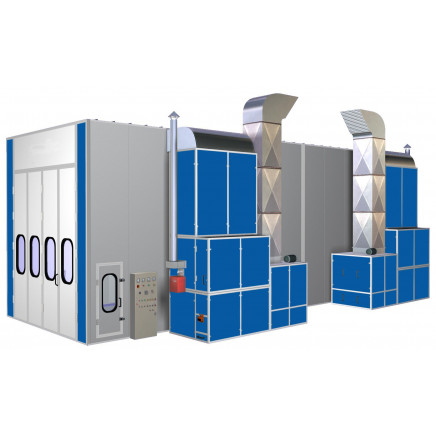

BZB-FB(18x5x5) Spray Booth Specification |
|
Internal Size (mm)(L×W×H) |
18000×5000×5000 |
External Size (mm)(L×W×H) |
18156×8656×5800 |
|
Front Door |
1. One set 4 folds main entrance door, one middle folding door, Double panels ?=0.476mmwith 75mm EPS insulation, size (W×H): 4000 ×4500mm, thickness75mm.
2. These doors were made by bending method which is rigid and strong. The door sight glasses were rectangle and rounded corner design,6.0mm tempered glass. |
|
Service Door |
Four sets, size(W×H): 800*2000mm, with emergency lock. Adopt stainless hinge. The door sight glasses were rectangle and rounded corner design. |
|
Cabin |
1. Wall panel: Double panels ?=0.476mm with 75mm Rock-wool insulation;
2. Ceiling board: 0.8mm galvanized plate;
3. Cabin frame is use galvanized steel sheet. |
|
Exhaust way |
Two Sides exhaust. Size 13800×1828×1000mm(L×W×H) per side. |
|
Ventilation Unit |
3 units of Ventilation Unit.
1. Ventilation cabin made by coating steel plate, inside cover galvanized steel sheet,filled in rockwool.
2. One unit Ventilation Unitincluding:
Air intake unit: 2*5.5kw YDW-5.6S Fan. Unit Capacity 16000m³/h.Total 6sets 96000m3/h, with pre-filter;
Air extract unit: 1*11kw4-82-6.3E, motor outside, belt drive. Capacity 30408 m³/h. Total 3 sets 91224m3/h. With exhaust filter and active carbon, with three sets of manual damper. |
|
Ducting |
1. Air exhaust duct made up of good qualitygalvanized steel sheetand flange made by profession equipment.
2. Total Straight duct: 15meters high and 3 sets manual damper, Elbow bend 3 PCS. |
|
Heating system |
1. The heat converter is made of stainless steel material.
2. 3 sets Diesel burner. The burner is imported from Italy under the brand name: RIELLO Model RG5S. Heating capacity: 260,000Kcal/h; Total capacity: 780,000Kcal/h.
3. 3 sets Switzerland original electric damper can automatically achieve from spraying to baking cycle. |
|
Filtration system |
The high efficiency primary filter can capture granules larger than 10?m, ceiling filter imported from Italy capture granules larger than 5?m, floor filter is M type glassfiber filter. TSP?1.4mg/m3, exhaust cabin have glassfiber filter and activated carbon filtration. |
|
Illumination |
Ceiling light: 22sets*4pcs=88pcs 36w Philips lamp, bottom light: 26sets*2pcs=52pcs 36w Philips tri-phosphor tube lamp, 1000 Lux. Ballasts Professional and durable. |
|
Electrical control unit |
Button type, main components and parts are Schneider with CE certificate , Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, temperature limit controller, emergency stop, breakdown alarm. |
|
Optional |
2 sets motorized Personnel lifts on 2 sides of the booth. Platform Load 150KG. Lift height 500-3500mm. Lift cross direction: 900-1200mm
Lift length wise direction: 17000mm
The motorized Personnel lift system is including the control boxes. |
|
No-load air Speed |
?0.28m/s |
Highest temperature |
80 |
|
Voltage |
380V, 50Hz, 3phase |
Total power |
71+6KW |
|
|
|
|
|
|
|
|
