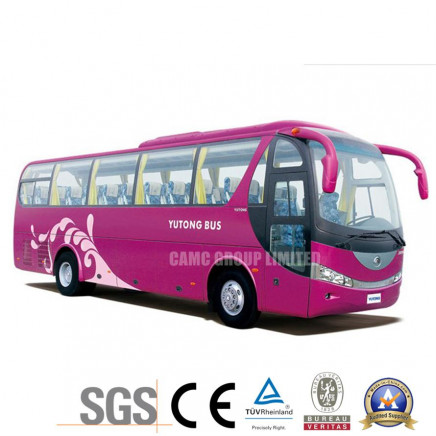

| I. Specification of ZK6107HA |
| Overall Dimensions |
|
| Length (mm) | 10490 |
| Width (mm) | 2500 |
| Height (mm) | 3670 |
| Inner height (mm) | >1970 |
| Wheelbase (mm) | 5250 |
| Tread Front / Rear (mm) | 2020/1860 |
| Front / Rear Overhang (mm) | 2090/3150 |
| Approach / Departure Angle( o ) | 9/8 |
Brake distance
(v=30km/h fully loaded) | ?10 |
| Fuel consumption (L/100km) | 24( under defined operation condition) |
| Max. Total Mass(kg) | 15350 |
| Kerb weight (kg) | 14000 |
| Max speed (Km/h) | 11350 |
| Front / Rear Axle (kg) | 5150/10200 (Max Total Mass condition) |
| Luggage Compartment(m3) | 6.5 |
| Fuel Tank Capacity (L) | 300 |
|
|
| Engine |
|
| Arrangement of Engine | Six cylinders; Direct injection; Turbocharged;inter cooling |
| Model | Cummins C245 20 |
| Position | Rear mounted |
| Displacement (L) | 8.3 |
| Bore and stroke(mm) | 114×144.5 |
| Max. Output (kw/rpm) | 239/2100 |
| Max. Torque (N.m/rpm) | 1250/1400 |
| Type of Fuel | Diesel |
| Emission standard | Euro II |
|
|
| Chassis |
|
| Clutch | Sachs GMF430; single dry plate; oil pressure remote control pneumatic assistance |
| Gearbox | QJ S6-90, 6 gear; triple flexible shaft remote control; lower gear next to driver |
| Suspension system | Leaf spring suspension; front suspension with stabilizer; front/rear interacting shock absorber; TELMA retarder(F191) |
| Steering system | C53 power steering gear; 4 ways adjustable for steering wheel; ATF3000 power steering fluid |
| Braking system | Front/rear independent dual-circuit pneumatic brake; Energy storage parking brake; WABCO ABS; HALDEX braking slack adjustable;; WABCO air dryer (with muffler); TELMA retarder(F191) |
| Front Axle | Dongfeng 153 axle ( load capacity5.5T) drum brake |
| Rear Axles | Dongfeng 153 axle(load capacity 11T )drum brake; final drive ratio 4.88 |
| Tyre | 6+1;Double Coin 11R22.5 |
| Others | Air filter; front towing hook; one 12T jack |
| Body |
|
| Body structure | Semi-integral body structure; pre-stress stretch panel skin; full metallic body |
| Interior trimming | Integral A/C duct; air outlet along with reading lamp; PVC dual board; integral inner luggage rack |
| Door and door pump | Front electronic control pneumatic out swing passenger doors; front passenger door remote control lock; upturning aluminum compartment door; through type luggage compartment |
| Window | Peony green single layer sliding driver window; Peony green single glued side window; Laminated glued front windshield; temper glass glued rear windshield; 2 half sunvisors for front windshield |
| Seat | 41+1 seats; side movable; backrest adjustable; back handrail adjustable, paper bags; 3 point seat belts for all driver and tour guild seat |
| Air-conditioning system | top mounted A/C |
| Defrosting system | Natural defrosting |
| Video and audio system | DVD player; 8 loudspeakers; 1microphone |
| Floor structure | Concave floor structure; Bamboo floor; deep gray floor with artificial leather |
| Roof hatch | Roof hatches with ventilation fans |
| Rear mirror system | Electrical rear mirrors(with electrical defrosting); inner rear mirror |
| Lights and rain wiper | Integral head lamp; integral rear lamp; high position brake lamp; contour lamps; 2 compartment lamps; ECE steering lamp; opposite scrape wiper |
| Battery/Generator | 2 pieces 6-QA-195Ah flat poles; 28V 140A+120A generators |
| Other | Electric horn; digital clock; inner rear mirror; reverse buzzer |
