Long Box 7.6m Small Horsepower 310HP 8X4 Dumper Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Long Box 7.6m Small Horsepower 310HP 8X4 Dumper Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$40000.0 - $45000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 45000/ Piece
15.0	US $ 42000/ Piece
30.0	US $ 40000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 29, 2015 To Dec 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BJ3312DNPJC-3

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 3

Drive Wheel:8�4

Engine Capacity:?8L

Seats:?5

Horsepower:251-350hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Chassis Brand:Foton-Auman

Engine:228kw / 310HP

Gerbox:Fast 9-Speed

Drivre Axle:10t

Cargo Body Size:7200/7400/7600*2300*1500/1800mm

Cargo Body Volume:24cubic-32cubic

Thickness:Side 4mm;Bottom 8mm

Lifting System:with Front Hydraulic RAM

Side Door:Optional

Hyva Lifting System:Optional

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

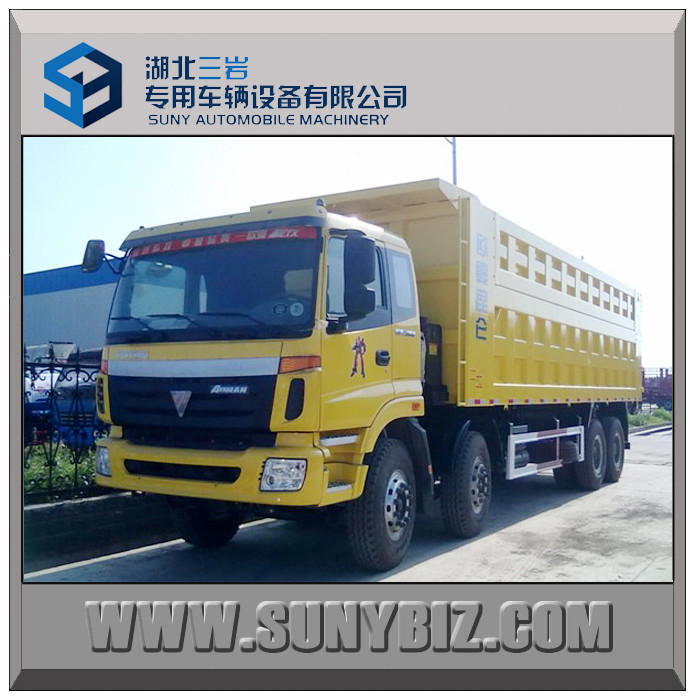

FOTON AUMAN 8x4 Dump Truck / Tipper truck
AUMAN dumper drive type 8X4,long box ,small horsepower
228KW/310hp,EURO ENGINE,Optional 260hp and 270hp
foton auman ETX cabin,With A/C
FAST,9.-speed gearbox

Chassis Info:
FOTON AUAMN TRUCK. Load capacity 25T,30T,35T,40T.
Diesel engine, 228kw / 310hp,FAST,9-speed Manual Gearbox,Dual-circuit air brake,24V.

Dump Cargo body:
Size:7200/7400/7600*2300*1000*1500/1800mm ,
24CBM Dump Truck,26CBM Dump Truck,28cbm Dump Truck/ 30 cubic Tipper truck

Equipped with material of carbon steel Q235,Side 4mm thickness;bottom 8mm thickness,
Equipped with front hydraulic ram(Optional, HYVA Brand),Single rear door.

Products Technical Specification
Brand-Series		FOTON AUMAN 8*4 DUMP TRUCK
Model		BJ3312DNPJC-3
Emission Standard		Euro 3
Fuel type		Diesel
Cabin		Auman ETX,flat top cabin
Whole vehicle main dimensions (mm)	Overall dimensions (L�W�H)	996025003400
	Cargo body dimensions	7200/7400/760023001500/1800
	Wheel base	1800+3650+1300
	Front overhang	1510
	Rear overhang	1840
	Min. ground clearance	500
Weight data (kg)	G.V.W	31000
	Curb weight (chassis)	14895
	Max payload	25000 -40000
Whole vehicle main performance	Max. speed (km/h)	80
Whole vehicle main performance	Max. slope of climb (%)	30
Engine	Model	SC9DK310Q3B1
	Maximum power	228kw / 310HP
	Number of cylinders	6
	Displacement (L)	8.820
	Engine Manufacturer	Shanghai diesel engine Co., Ltd.
Transmission	Brand and Model	FAST
Transmission	Number of gears	9 forward gears, 1 reverse gear.(Manual)
Axle	Rear	10T
Suspension	Front	10- Leaf spring
Suspension	Rear	10- Leaf spring
Steering Wheel	left/right hand drive	LHD
Brake system	Service brake	Dual-circuit air brake
Electric device	Rated voltage	24V
Tyres & Quantity		11.00R20 & 12+1
Cargo body Description
Cargo body dimensions (mm)		7200/7400/760023001500/1800
Cargo body material		Equipped with material of carbon steel Q235
Cargo body thickness		Side 4mm thickness; bottom 8mm thickness
Lifting System		Equipped with front hydraulic ram one back door Optional Side door,
Optional Configuration
Van thickness,side door,Front lift (HYVA BRAND)etc.

Optional Dump Type:
1.Truck:(rear)Dump truck,Side dump truck; 40ton~65ton side tipper truck
2.Trailer: (rear)Dump trailer,Side dump trailer,Front side dump,rear dump trailer; 50ton ~ 100ton side tipper trailer
3.Full trailer and Side dump full trailer. 15ton~20ton~25ton~30ton full trailer
4.flatbed dump truck and faltbed dump trailer. 30ton~35ton~40ton~45ton~50ton~60ton flatbed tipper truck
5.U-Type dump truck & Dump truck crane (with XCMG,UNIC,SANY,Crane) & Mining Dump truck. 25ton ~ 80ton

We also have foton auman water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc

Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,T-KING,UD,HINO,ISUZU,etc.

A.Product Series
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

B,Packaging & Shipping:
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!

C:Customer service:
We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 12 months warranty.
We supply quick-wear parts and spare parts in time for customer.

IF YOU HAVE ANY QUESTIONS PLEASE LET Adam Li KNOW.
Mob:0086 137 0717 3051

Additional Information
