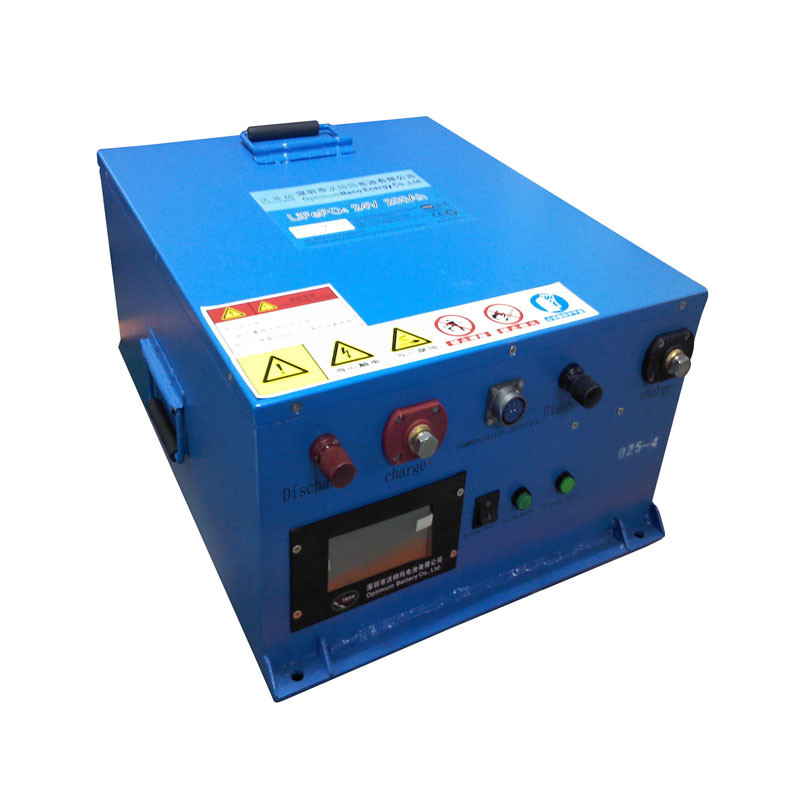

Lithium Iron Phosphate 24V 200ah Battery Pack for Tidal Power Generation

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Western Union

Trademark:OPTIMUMNANO ENERGY

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-24-200

Type:Lithium-Ion Batteries

Usage:UPS, Electric Power, Lighting, Electric Bicycle, Boat, Solar System

Nominal Voltage:24V

Discharge Rate:High Discharge Rate

Shape:Cylindrical Battery

Electrolyte:LiFePO4

Installation:Packaged

Rechargeable:Chargeable

Battery Type:24V 200ah Battery

with BMS:Yes( Battery Manager System)

with Screen:Yes

Composed Type:8 Series 40 Parallel

Self Discharge Rate:3% Monthly

Warranty Time:2 Years

Certifications:CE, UL, RoHS, IEC, BV, SGS, Rbrc

Battery Case:Iron Case

Color:Blue, Black, White

Long Life Cycle:More Than 2000times

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO ENERGY

Packing:Standard Export Package

Standard:CE, UL, ROHS, NQA, IEC, BV, SGS, RBRC

Origin:Shenzhen, Guangdong, China

HS Code:8507600090

Production Capacity:1000pks/Day

Product Description

Lithium iron phosphate 24V 200AH battery pack for tidal power generation

Battery cell type: LiFePO4 Battery(IFR 32650-3.2V5AH per cell)
Rated Voltage: 24V
Rated capacity: 200Ah
Max charging voltage: 29.2 V
Cut off voltage: 20V

Life cycle: Over 2000 cycles >80% capacity
Case: Iron case (optional)
Size: 560*360*200mm (optional)
Weight: About 65 KG
Self discharge rate: ? 3% monthly
Operate temperature -20º C~60º C
Warranty time is 2 years
Certifications: CE, UL, ROHS, IEC, BV, SGS, RBRC

Technical Parameter	liCoO2	LiNiCoMnO2	LiMn2O4	LiFePO4
Tap Density(g/cm3)	2.8~3.0	2.0~2.3	2.2~2.4	1.0~1.4
Specific Surface Area(m2/g)	0.4~0.6	0.2~0.4	0.4~0.8	12~20
Energy Density (mAh/g)	135~140	155~165	100~115	130~160
Discharge Plateau (V)	3.6	3.5	3.7	3.2
Cycle Life	?300 cycles	?800 cycles	?500 cycles	?2000 cycles
Environment Friendly	Co contained	Co, Ni contained	Micro toxicity	Innocuity
Safety Performance	Bad	Normal	Good	Never catch fire or explode under extreme condition , safest

Item	LiFePO4 Battery	Lead acid Battery	Notes
Weight to Power Ratio	120-130 Wh/kg	32-37 Wh /kg	4:1
Dimension to power ratio	210 Wh/L	70 Wh/L	3:1
Cycle Life	Over 2000 times	300 times	6:1
High Rate Charge /Discharge Performance	Higher than 96%	60%~70%	1.6:1
Temperature Range & performance	-20ºC-60ºC LiFePO4 High temperature discharge current is about 105%,	-20ºC-45ºC SLA Battery temperature discharge current is about 80%	1.3:1
Monthly Self-discharge Rate	About 3%	More than 10%	1:3
Battery maintained	Basically no need	Tedious to maintain
