Lithium Ion Rechargeable Battery Pack 48V 100ah

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

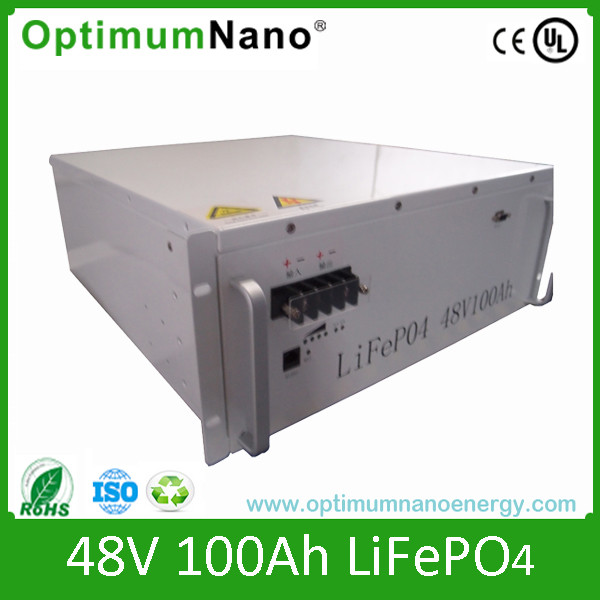

Lithium Ion Rechargeable Battery Pack 48V 100ah

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 4000/ Piece

Price:US $4000.0 / Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Jul 22, 2015 To Sep 25, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-48100

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:High Discharge Rate

Size:Small

Accessories Type:Chargers

Rated Capacity:100ah

Standard Voltage:48V

Usage:Solar Power, Solar Panel, Energy Storage

Electrolyte:Lithum Iron Phoshate Battery

Standard Capacity:100ah

Rated Voltage:48V

Max.Charge Voltage:54.75V

Cut-off Voltage:40V

Standard Charge Current:1c

Max Continuous Discharge Current:1c

Peak Discharge Current:2c (10s)

Total Weight(Approx.):About 61kg

Dimension:Customized

Warranty:More Than 2 Years

Export Markets:North America, South America, Eastern Europe, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:OPTIMUMNANO

Packing:Customized Package

Standard:CE, UL, RoHS, SGS, TS/16949 and ISO9001-2008

Origin:Shenzhen China

HS Code:8507600090

Production Capacity:500000 Singles Cells/Day

Product Description

Lithium Ion Rechargeable Battery Pack 48V 100ah

-Lipo Battery Pack 48V 100Ah Solar Energy Storage UPS Battery Pack

----Battery datasheet

Basic Specification of 24V15Ah Battery PACK
Nominal Capacity	100Ah	Cell Configuration	15S20P
Nominal Voltage	48V	Total Cell Quality	300pcs
Discharge Cut-off Voltage	54.75V	BMS	YES
Charge Cut-off Voltage	40V	Dimensions(mm)	Customized
Charge Current	100A	Weight (including case)	About 61kg
Continuous Discharge Current	100A	Charge Temperature Range	0°C~45°C
Peak Discharge current	200A	Discharge Temperature Range	-20°C~60°C
Cycle Life (100% DOD,1C)	2000 cycles	Charge Method	CC/CV

Advantages:
1.Safety:Most safest Li-Ion battery, built-in BMS, none fire, none explosive
2.Environment friendly, Clean and Green energy, no toxic material contained
3.Low self-discharge:Less than 3% per month
4.Wide range temperature adaptability:-20--60degrees celsius
5.Long life cycles:More than 2000 cycles in 1C
6.No memory effect:Always ready for charge and use, with no need to charge after a full discharge.
7.High energy density and high power output
8.Lighter and smaller:1/3 weight of lead acid battery

Our Services
1.Give you the specific battery pack within 24hours according to your requirements.
2.Professional:Professional technicians offer overall systematic service.
3.One-stop battery solution with battery cells, BMS, case and matching charger.
4.Beyond customer demand:To think more for customer, do better for customer and make customer more satisfied.
5.MOQ:1 unit is ok for your first battery pack to be tested.
6.Warranty:2 years

Product details
48v 100ah +BMS
Storage time :More than 5 years
Cyclelife :More than 1000 times
Discharge rate :1C-2C
Max constant discharge current :200A
Weight :105kg
Outer case :White iron box ,oxygen board ,wooden box ,etc .
Application :Backup power ,China mobile telecom,UPS,etc.

Feature
Light in weight,small in dimesion,attractive in visual appearance
1)Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or SLA.
2) Non-Toxic, environmentally-friendly product.
3) High safety
LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material
LiFePO4 cells do not incinerate or explode under extreme conditions
4) Good performance in high-current discharge cycles.
5)offter full solution of battery+BMS +charger,which can protect from overcharge ,overdischarge,overheat
48V 100AH battery need 2 voltage modules.One BMS include voltage module+current module+current sensor+Host+display+wiring harness

Product show :48V 100AH applied for backup power ,China mobile telecom,UPS,etc
