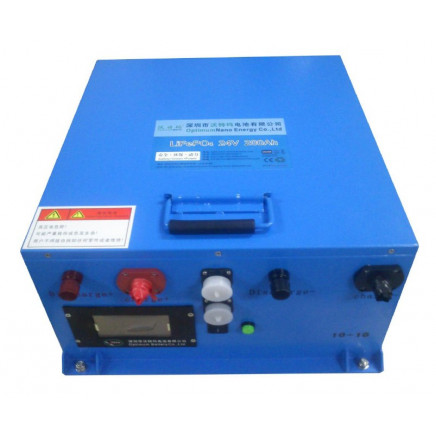

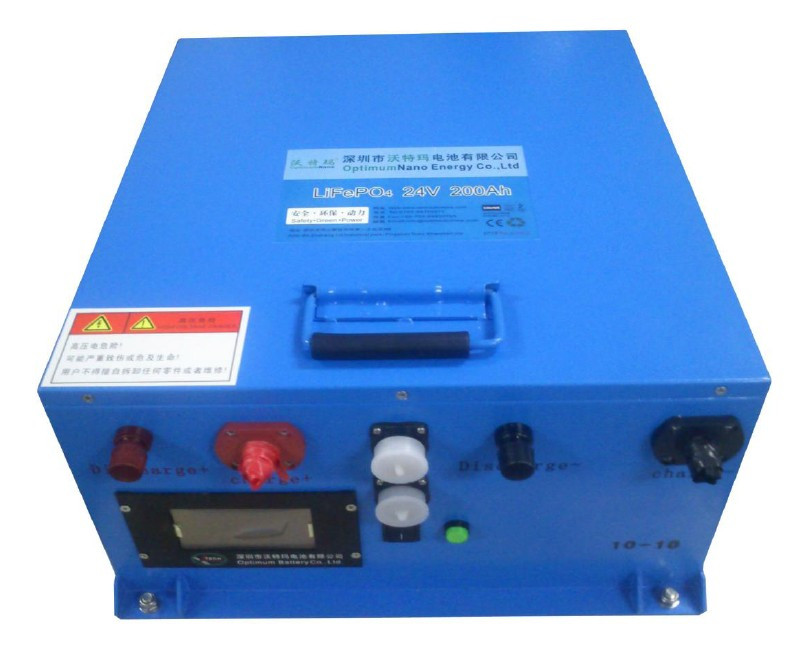

Lithium Battery 24V 200ah for Solar Light

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1800.0 - $2300.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 2300/ Piece
500.0	US $ 1800/ Piece

Trade Terms: FOB, EXW

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From May 14, 2015 To Jul 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-024200

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:Medium Discharge Rate

Size:Medium

Accessories Type:Battery

Rated Capacity:200ah

Standard Voltage:24V

Usage:Remote Control Car

Electrolyte:LiFePO4

Lead Time:25days

Warranty:5years

Life Cycles:2000 Times

Application:E-Car,E-Bike ,Scooter,E-Walker

Certificate:UL ,CE ,RoHS ,ISO9001 ,Ts16949

Advantages:Safety,Long Life Cycles,High Energy Density

Discharging Rate:< 3c

Charge Time:1-5h

Max Charge Rate:29.2V

Max Discharge Rate:20V

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:Standard Packing

Standard:CE, UL, ROHS, IEC, BV, SGS

Origin:Cn

HS Code:8507600090

Production Capacity:1000 Packs/ Week

Product Description

Lithium Battery 24V 200ah for Solar Light

Edges in performance of Optimum LiFePO4 battery:
1. High dimension ratio power: 32750-7Ah weight ratio power is 135Wh/kg, dimension ratio power is 370Wh/L; 32650-5Ah weight ratio power is 110Wh/kg, dimension of ratio power is 370Wh/L.
2. Long cycle and service term: 1C charge/discharge, 100% discharge depth, 80% capacity after 2000 charge/discharge cycles. Sevice term above 8 years on ev;
3. Good safey performance: No explosion and burning after safety testing like overcharging/discharging, short-circuit, dropping, squeezing, heating, penetrating, etc.
4. Good performance at high or low temperature: 105% capacity can be released when charge/discharge at 55 oC; 80% capacity can be released when charge/discharge at -15oC...
5. Small self-discharge current: Rest for one month with half soc, self-discharge current less than 5%;
6. High efficiency of charging: Capacity efficiency ( ampere hour efficiency) usually 100%, 100Ah for charging and 100Ah for dicharging;
7. Good performance of heavy current: The capacity stays the same with 100% capacity when the battery discharge at different rate at 0.1C-5C.
Features of Optimumnano LiFePO4 battery pack:
1. Pack assembly technique: Use the most mature cylindrical structure design 32650 LiFePO4 battery, making use of assembly technique developed by us to form products of different modules required by customers which are against dust, water, vibration and good in conductivity and heat raleasing. At present, the maximum capacity of module we've produced so far is 900Ah while maximum voltage of pack is 600V;
2. Battery management technique: Self-developed BMS, automatic testing voltage, temperature, current, insulation level and SOC, use advantage lossless balancing function and GPRS wireless data transmission function.
3. Ensuring of best performance of each cell;
4. Seamless exchange: We can produce packs that are the same with lead-acid battery in voltage, capacity and dimension, without changing the mould.
5. Lighter, smaller and stronger: Optimumnano LiFePO4 battery pack system is featured with lighter weight, smaller dimension and stronger power with service term above 10 years.
Quality features of optimumnano LiFePO4 battery pack:

In optimumnano, each cell and pack is produced with the principle of "conformity in 6 aspects and 3 inspections in 3 stages", thus the high stability and reliability can be guaranteed. "Conformity in 6 aspects" is a principal developed by optimumnano's engineers in production and inspection process. The application of ensures conformity of packs and improves service term of pack obviously. And "3 inspections in 3 stages" refers to inspections on battery assembly, paralleled modules and finished packs.

Remarks:
1) MOQ: 1 pcs
The quotation is include BMS and packing, but not the charger
2) Payment: T/T 100% for sample, T/T 30% in advance, 70% before sending the goods for the order.
3) Order Lead time: 4-6 weeks for order upon receipt of 30% deposit
4) Sample lead time: Within 2-3 weeks
5) Delivery: FOB Shenzhen port
6) Warranty: 24 Months from the day when you receive the goods

Model		LF 32650-24V-100Ah
Case material		ABS case
Standard capacity(0.2C5A)		100Ah
Rated voltage		24V
Max.Charge voltage		29.2V
Cut-off voltage		20.0V
Standard Charge/dicharge current		20A/100A
Max discharge current		250A
Peak discharge current		500A
Length (Max,including case)		502±3 mm
Width(Max,including case)		262±3 mm
Heighty (Max, including case)		242±3 mm
Weight(Approx,including case)		35.0kg
Impedance(Max, at 1000Hz.)		? 20 m?
Charge method (CC/CV)	Standard	CC	0.2C	14.6V cut off
		CV	14.6V	0.01C cut off cut off cut off cut off
	Rapid	CC	1C	14.6V cut off
		CV	14.6V	0.05C cut off
Operate temperature	Charge	0ºC~45ºC
	discharge	-20ºC~60ºC
	storage	-20ºC~45ºC

Additional Information
