Lightweight Durable Strong Structural Rock Wool Sandwich Panels for Wall

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$3.5 - $23.5 / Meter

Min. Order (Meter)	Unit Price
1000.0	US $ 3.5-23.5/ Meter

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Aug 07, 2014 To Nov 07, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Basic Info.

Model NO.:V950 1150MM

Material:Sandwich Panel

Usage:Warehouse, Villa, Dormitories, Temporary Offices, Workshop, House/ Wall

Certification:ISO, SGS

Export Markets:Global

Additional Info.

Trademark:SXGG

Packing:Seaworthy as Customer?s Requirement

Standard:ISO, BV, SGS

Origin:Xiamen, China

Production Capacity:10000ton/Per Month

Product Description

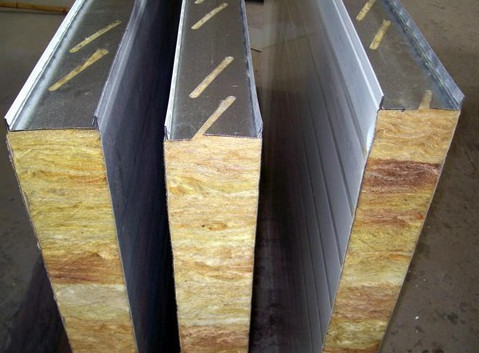

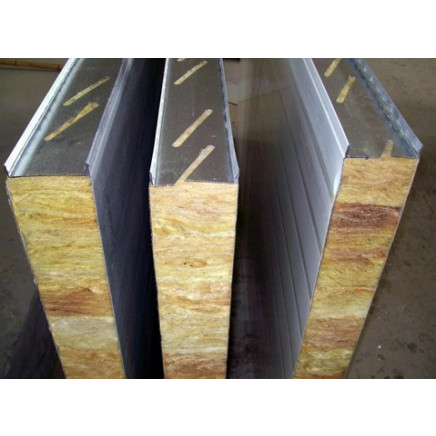

Lightweight Durable Strong Structural Rock Wool Sandwich Panels For Wall

Rock wool sandwich panel
1, Excellent price and quality
2, Light weight
3, Easy installation
4, Heat and fire insulation

Product Description
Heat Insulation / Inflaming Retarding
Thickness: 50mm-200mm
Width: 950mm/1150mm
Steel Thickness: 0.35mm-0.80mm
Color: As request

This kind of Sandwich Panel has many features as follows:
Material:
1. The thickness of up/lower steel panel: 0.35-1.2mm colour-coated panel/zinc plate, hot galvanized plate/stainless steel panel
2. Core material---The density of this(mineral)
Rock wool is: 120-250kg/m3
3. Side steel strip or not: 0.35-0.8mm galvanized plate

Specification:
1. The suitable interface width: 950mm, 1150mm
Thickness: 50mm-200mm
Length: Less than 11.8m
2. Surface protection: PVC film

Characteristics:
1. Advantage: Good fire-resistance, noise-absorbing
2. Fire resistance raring: None

Usage:
This kind of sandwich panel can be used in steel structure workshop, easy building and air clean room as walls, ceilings.

Rockwool sandwich panel
Type	RW-1150-50
Dimensions	Total thickness	50mm
	Width	1150mm
	Length	Less than 11.8m
External face	Material	PPGI
	Thickness	0.18-0.6mm
	Thickness of the zinc	60g-80g/m2
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	20 micron
	Color	According to the RAL
	Pattern	Nearly plain
Insulation	Optional foam Material	EPS PU Rockwool Paper honeycomb
	Thickness	50-200mm
	Density	EPS 12~25KG/M3; PU 36-45KG/M3; ROCKWOOL>110KG/M3;
	Thermal conductivity	0.045w/m2k 0.021W/M2K 0.0034W/M2K0
Internal face	Material	PPGI
	thickness	0.18-0.6mm
	Thickness of zinc	60g-80g/m2
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	7micron
	Pattern	Plain
Shipping terms
Package	Seaworthy or as customers' requirement
Delivery time	Within 15-20days after your prepaid
application	Purification workshop condole top , Industrial workshop and warehouse
