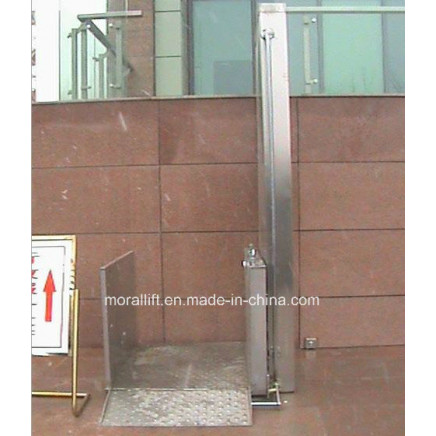

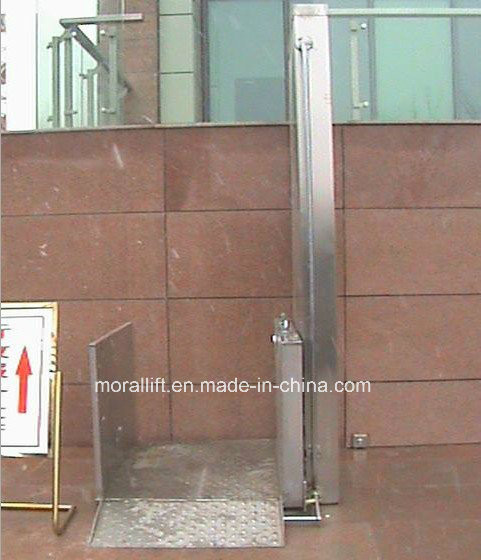

Lightweight and Easy to Use Wheelchair Lift for Disabled

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 4000/ Piece

Price:US $4000.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Apr 16, 2015 To May 02, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SJG

Application:Indoor or Outdoor Lift

Lift Mechanism:Lift Chain

Carrying Capacity:Light Level

Moves:Stationary

Driven Type:Hydraulic

Running Mode:Stationary

Feature:Explosion-Proof

Certification:CE, ISO 9001

Max Platform Height:6000mm

Platform Size:1300mm(L)* 900mm(W) or Customized

Min Platform Height:80mm

Hydraulic Drive:Smooth and Safe Lifting

Load Capacity:200-450kg

Power Output:1.5kw

Speed:80-100mm

Platform:Stainless Steel Platform

Noise:50db

Control Mode:Button/Remote Controls

Export Markets:Global

Additional Info.

Trademark:Moral

Packing:Standard Exporting Plywood Package

Standard:CE/ISO

Origin:China(Mainland), Shandong, Jinan

HS Code:842890

Production Capacity:100sets Per Month

Product Description

Lightweight and Easy to use wheelchair lift for disabled
Brief introduction
1.vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.
2.It can be directly installed into the ground without architectural supporting pits and easy to operate.
3.Its hydraulic or screw system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.
4.Emergency Descending:When there is no power or malfunctions, manually descend the device
5.It's suitable for large-sized newly-built residential estates and those areas where there is compact land resource and etc.
6.this machine max.lifting height is 6000mm
If you have difficulty using stairs, or use a wheelchair or mobility scooter,
then a residential vertical lift is a great way to ensure that you can always safely and conveniently enter and exit your home.
All of our porch lifts are designed to be completely resistant to the harshest weather conditions and are an affordable alternative to residential elevators
Parameter

Platform size	1300mm(L)* 900mm(W) or customized
Max Platform Height	6000mm
Min Platform height	80mm
Speed	80-100mm/s
Load capacity	250KG~350KG
Control voltage	24V/DC
Power Output	1.5KW
Power Input	220V/50HZ/25A (or customized for local power supply)
Drive System	Hydraulic or screw
Control Mode	Inching Switch or Automatic
Drive Control	Self-resetting system
Overload	Protection Over current relay
Material of Platform	Checkered slip-proof aluminum alloy
Painting	Plastic electrostatic spraying
Guard panel & drive cabinet (framework)	Aluminum Alloy / 304 stainless steel
Operation Panel	Polished aluminum Alloy
Working Condition	Both indoors and outdoors
Working temperature	From -50°~60°C
Installation	Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground)
Emergency Stop	The lifting and lowering process can be stopped immediately by pressing the emergency button.
Safety device	Safety Interlock	Lock the platform when it is out of control
	Safety Sensor	The operation must be stopped immediately the safety edge meets obstacles during operation.
	Emergency lowering	The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
	Auto-flap	Turn up after lifting
