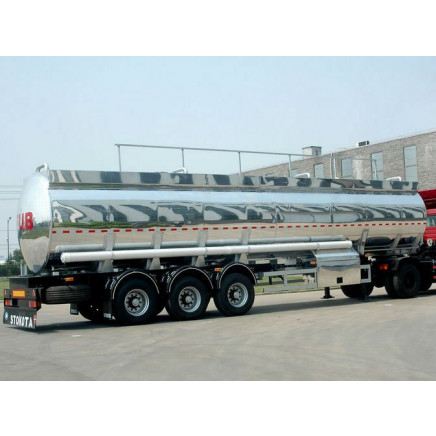

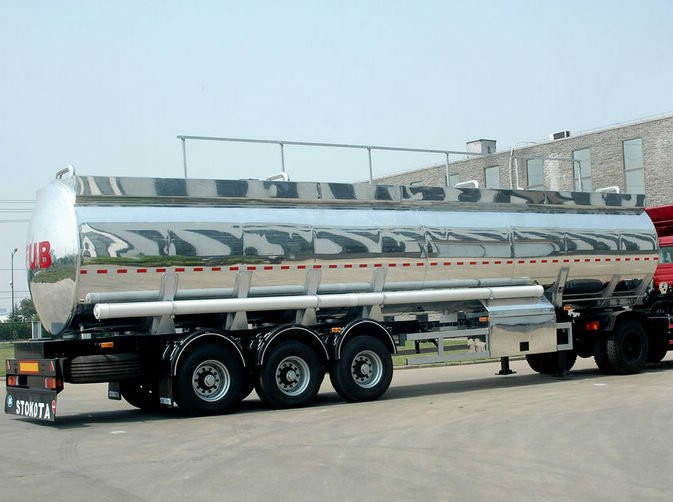

Light Weight Aluminium Fuel Tanker Trailer for Different Oil

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 43000/ Piece

Price:US $43000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jul 30, 2015 To Oct 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9400GYY

Type:Towing Pin

Towing Pin Material:Alloy Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Trailing Arm Type

Volume:as Your Requirements

Colour:as Your Request

Export Markets:Global

Additional Info.

Trademark:jupiter

Packing:Nude or as Customer?s Requirement

Standard:ISO9001; ccc

Origin:China

Production Capacity:1000PCS Per Year

Product Description

This Oil tanker semi trailers is applied to transport OIL, FUEL, DIESEL, WATER AND ALL KINDS OF LIQUEFIED CHEMICALS in a short or long distance. It's an ideal equipment to transport oil from oil storage field to oil plant, and transfer oil from refinery and wharf to oil storage field. It is also been used in refueling service station.

No. Name Remarks
1 Total size L12000× W2800× H3800
2 Tare weight 7500 KGS+5%expension
3 Payload 40 ton
4 Tank body Volume: 5 CBM to 60 CBM, shell thick 5mm, end thick 5mm baffles 4mm, compartments make according to customer's requirement. Top access Steel ladder and foldable handrail; Walkway with anti-slip material coveringthe complete length of the tank;
5 Painting Wax whole trailer, polyurethane, color according to customer's requirement
6 Axles 10T, 13T, 14T, 15T, 16T, 20T BPW, FUWA, LITAI^...Are available for choose

7 Wheel rim Zhengxing brand
8 Tyre Double star, hancook, double corn, yellowsea and all kinds of brand are available for choose
9 Leaf spring 90width*10 pieces*13thickness
10 Kingpin 3.5"(90#) or 2.0"(50#)
11 Landing legs Two speed landing gear
12 Suspension Jupite machanical type
13 Air tank jupite
14 Brake chamber T3030 and T30 are available
15 Air connector one units reliable local brand stander air connector
16 Relay valve WABCO valve
17 7-pin socket one unit of 24V 7-pin socket
18 Lamb tail lamb with turn signal, brake light^including a whole set of stander lamb
19 Cable one set of stander cable
20 Tool box
21 Fire extiguishers 2 units;
22 Wheel carrier
The above trailer is just one of our products, we producing according to customer's requirements.
As the requirements of the customers in different countries are different, we can design for our customer's special need. Please don't hesitate to contact me if you have any inquiry! !

30CBM aluminum tanker semi trailer for carrying milk, fuel, water and so on.

1. Made by high-quality aluminium alloy
2. Equal with Euro standard, reasonable structure, fashion design
3. Various volume range
4. Less weight and more load
5. BPW original axle, tubeless tires, JOST brand kingpin, JOST brand landing leg.
6. With oil recycling system, european standard manhole, european stand valve.
