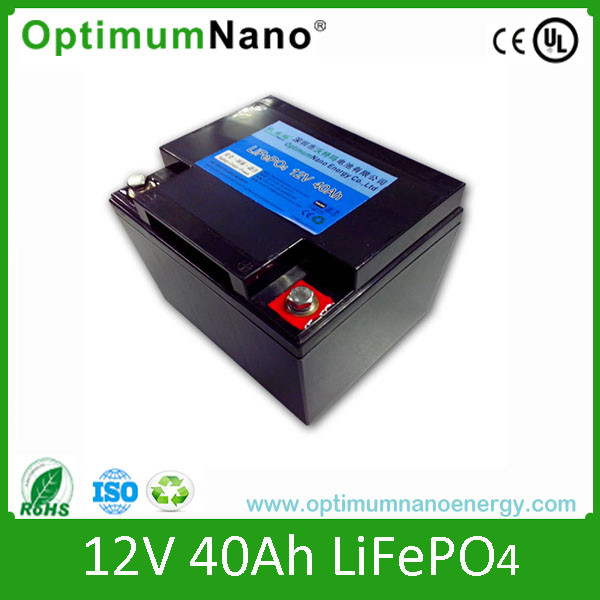

LiFePO4 Street Light Battery 12V 40ah

More Views

LiFePO4 Street Light Battery 12V 40ah

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:50 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Western Union

Trademark:OPTIMUMNANO

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-012-040

Type:Lithium-Ion Batteries

Usage:UPS, Lighting, Electric Bicycle, Street Light

Nominal Voltage:12V

Discharge Rate:Low Discharge Rate

Shape:Square Battery

Electrolyte:LiFePO4

Installation:Packaged

Rechargeable:Chargeable

Components:LiFePO4(Lithium Iron Phosphate)

Dimension:190*165*175mm(Customized)

Weight:About 5.5kg

Certification:CE,UL,RoHS,Tlc,PSE,Ts16949,ISO9001,BV,SGS

Warranty:2years

Application:Street Light Battery

Long Life Cycle:More Than 2000times

Self-Discharge Rate:Less Than 3% Monthly

Battery Model:12V 40ah

Cell:32650 3.2V 5ah

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:1. PVC Film 2. SLA Case 3. Customized

Standard:CE, UL, RoHS, SGS, TS/16949 and ISO9001-2008

Origin:China Mainland(Guangdong)

HS Code:8507600090

Production Capacity:3000pks/Day

Product Description

LiFePO4 Street Light Battery 12V 40ah

1. Cell Model (Single cell): IFR32650
2. Standard Capacity: 40Ah
3. Rated Voltage: 12.8V
4. Max. Charge Voltage: 14.6V
5. Cut-off Voltage: 10V
6. Standard Charge Current: 8A
7. Max charge current: 2C
8. Standard Charging Time: 5h
9. Cycle life(1C/80%): ? 2000
10. Dimensions: Customized
11. Total Weight(Approx. ): About 5.5 kg

Packaging & Delivery

Packing case: 1. PVC film 2. Epoxy board+ PVC film 3. SLA case 4. Customized
Delivery Detail: 15-25days
Warranty: 2years

Shipping & Payments

Shipping and handling:
Item location: Shenzhen, Guangdong, China (Mainland)
Shipping to: Worldwide
Payments: T/T in advanced

Product Feature
1. Safety: The safest Li-Ion battery, CE UL approved, BMS built inside to protect the battery in the round, none fire, none explosive

2. Environment friendly, Clean and Green energy, no toxic material contained

3. Long life cycle, more than 2000 cycle in 0.5C~1C discharge, 8 times of Lead acid battery

4. No memory effect, highly efficient charge, can be recharged anytime, no reduction of capacity

5. Broad operation temperature: -20~65° C

6 Small in size and light in weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni-Cd battery, 1/2 weight of lead acid battery

7. Low self-discharge rate: Less than 3% per monthly

8. Good performance at high temperature and high temperature resistance

Lifepo4 Battery Compared with SLA Battery
No.	Item	LiFePO4 Battery	SLA Battery
1	Weight to Power Ratio	120-130Wh/kg	32-37Wh /kg
2	Dimension to power ratio	210Wh/L	70Wh/L
3	Cycle Life Time	More 2000 times	300 times
4	High Rate Charge /Discharge Performance	Higher than 96%	60~70%
5	Charging performance	1Hour	4Hours
6	Temperature Range & performance	Below20~60degree centigrade LiFePO4 High temperature discharge current is about 105%	Below20~45degree centigrade SLA Battery temperature discharge current is about 80%
7	Monthly Self-discharge Rate	About 3%	More than 10%
8	Safety	Not cause fire and explosion when against overcharge, acupuncture, extrusion, high temperature and other unusual conditions.	Good safety
9	Environmental	Environmental friendly	Environment pollution
