LiFePO4 Energy Storage Battery for Solar/ Wind System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1.0 - $10000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 10000/ Piece
1000.0	US $ 1/ Piece

Trade Terms: FOB, CIF, CPT, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Jul 23, 2015 To Oct 23, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:12V 200AH

Type:Lithium-Ion Batteries

Usage:Solar/Wind System

Nominal Voltage:12V

Discharge Rate:High Discharge Rate

Shape:Cylindrical Battery

Electrolyte:LiFePO4

Installation:Packaged

Rechargeable:Chargeable

Size:500*262*242mm

Weight:About 35 Kg

Warranty:24months

Discharge Rated:Less Than 3c

Energy / Weight:120wh/Kg

Energy / Volume:310wh / L

Cycle Life:at Least 2000 Times At100%Dod

Delivery Time:Within 25 Working Days

Shippment:TNT,UPS,DHL,FedEx,by Sea,by Air

Safety Performance:Cc-CV Wise Charging Method with B

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:Customised Package, Lead Acid Plastic Case

Standard:CE, UL, RoHS, SGS, TS/16949 and ISO9001-2008

Origin:China Guangdong

HS Code:8507600090

Production Capacity:40000pks/Year

Product Description

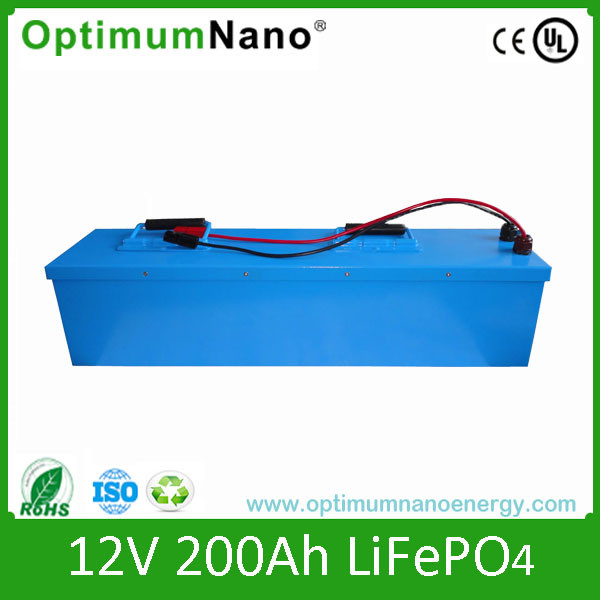

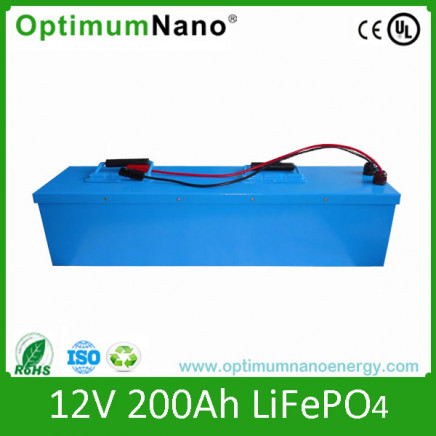

Optimum 12V 200ah LiFePO4 Energy Storage Battery

1/3 weight, smaller dimension, but 8 times cyclelife than SLA batteries
Long cycle life: > 2000 cycles
UL and CE approved
Factory passed TS 16949, ISO 9001: 2008

Rated voltage: 12V
Max. Charge voltage: 14.6V
Cut-off voltage: 10.0V

Max. Charge current: 150A
Max Continuous discharge current: 200A
Max. Instant discharge current: 250A discharge current within 5 seconds.

Case Color: Blue or white
Size: 400*355*158mm(Max, including case)
Weight: About 35kg
With handle and Fixed hand

Any battery pack we produced were assembled by series and parallels of single battery cells, So you can also buy single battery cells, and DIY according to your demands.
Type	Voltage (V)	Capacity (Ah)	Weight (g)	Energy Density (WH/kg weight ratio)	Energy Density (WH/L Volume Ratio)	Discharge rate	Life span(base on 1C discharge and charge rate
18650	3.2	1.4	39	115	270	? 3C	2000 cycles? 80%
26650-HP	3.2	2.2	80	88	200	10C~20C	2000 cycles? 80%
26650-LP	3.2	3.2	85	120	292	? 3C	2000 cycles? 80%
32650-LP	3.2	5	145	110	280	? 5C	2000 cycles? 80%
32650-LP	3.2	5.5	147	120	308	? 3C	2000 cycles? 80%
32650-LP	3.2	6	150	130	336	? 3C	2000 cycles? 80%
