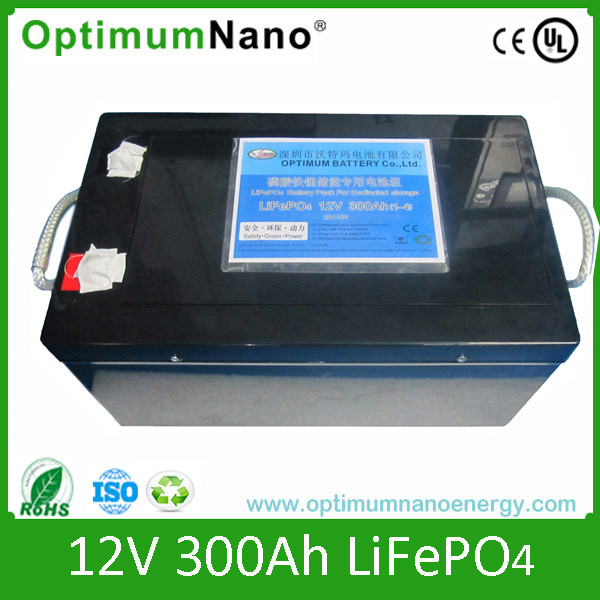

LiFePO4 Deep Cycle 12V 300ah Battery for Solar Power System

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

LiFePO4 Deep Cycle 12V 300ah Battery for Solar Power System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1499.0 - $1999.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 1999/ Piece
1000.0	US $ 1499/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: T/T, Western Union, Western Union

Price Valid Time:From Aug 10, 2015 To Jul 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-32650-5L

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:Medium Discharge Rate

Size:525mm*270mm*220mm

Accessories Type:Battery

Rated Capacity:300ah

Standard Voltage:12V

Usage:Solar Power Sysytem, UPS, E-Car and So on

Electrolyte:LiFePO4

Proudct Name:LiFePO4 Deep Cycle 12V 300ah Battery for Solar Pow

Cell:32650

Usage Capacity:300ah

Rated Voltage:12V

Dimension:525mm*270mm*220mm

Certificate:CE, UL, RoHS, IEC62133

Application:Solar Power Sysytem, UPS, E-Car and So on

Warranty:2 Years

Package:Plastic Case, Steel Box or Customaize

Color:Blue/Black

Export Markets:Global

Additional Info.

Trademark:optimum

Packing:Customised Package,Lead Acid Plastic Case

Standard:12V300Ah

Origin:China

HS Code:85078020

Production Capacity:1000packs/Week

Product Description

LiFePO4 deep cycle 12V 300ah battery for solar power system

Specification:

Electrical Charateristics

Nominal Voltage	12V
Nominal Capacity	300Ah(+- 5%)
Impedance (Max. at1000Hz)	?50m?
Expected Cycle Life	2000 cycles

Mechanical Characteristics

Height	220±2mm
Width	270±2mm
Length	520±2mm
Weight	~45Kg

Operation Conditions

Charge Method	Constant Current/Constant Voltage (CC-CV)
Max. Charge Voltage	14.6V
Standard Charge Current	60A
Charge Temperature	0ºC~45ºC
Max. Continuous Discharge Current	100A
Peak Instant Discharge Current	150A,
Peak Instant Discharge Time	5 seconds
Discharge Cut-off Voltage	10.0V
Discharge Temperature	-20ºC~65ºC
Storage Temperature	-20ºC~45ºC

Key Features

Attractive cycle life
Extended safety performance
Wide operating temperature range
Unrivalled high temperature performance
Green energy without metal contaminant
High capacity
Steady output voltage
Little self-discharge
Double safety protection
Withstanding very high level of vibrations and shocks

Safety Characteristics

Over-charge/Over-discharge Ability to withstand over-charge/withstand over-discharge, and there is no fire, no exploding and work well
Short circuit Ability to withstand short circuit, and there is no fire, no exploding
Acupuncture Ability to withstand nail puncturing, and there is no fire, no exploding
Thermal shock Ability to withstand thermal shock, and there is no fire, no exploding

Application:

Solar power system, E-bus, Golf cart,Solar street light,Telecom station,Lighting system,Medicine equipment,E-wheelchair,UPS,Power tools,Back up system,Emergency light,Lawn lightand so on.
