LiFePO4 Battery Pack 12V 35Ah/Backup Battery

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$100.0 - $250.0 / Piece

Min. Order (Pieces)	Unit Price
50.0	US $ 250/ Piece
100.0	US $ 100/ Piece

Trade Terms: FOB, CFR, CIF, DAT, EXW

Payment Terms: T/T, D/P, Paypal, Western Union

Price Valid Time:From Apr 26, 2015 To Jul 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-12-35

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:Medium Discharge Rate

Size:Medium

Accessories Type:Battery

Rated Capacity:35

Standard Voltage:12V

Usage:Remote Control Car

Electrolyte:LiFePO4

Lead Time:25days

Weight:5kg

Warranty:5years

Life Cycles:2000 Times

Application:E-Car,E-Bike ,Scooter,E-Walker

Certificate:UL ,CE ,RoHS ,ISO9001 ,Ts16949

Advantages:Safety,Long Life Cycles,High Energy Density

Export Markets:Global

Additional Info.

Trademark:optimum

Packing:4pks/CTN

Standard:12v 35ah

Origin:Cn

HS Code:85078020

Production Capacity:10000pks/Day

Product Description

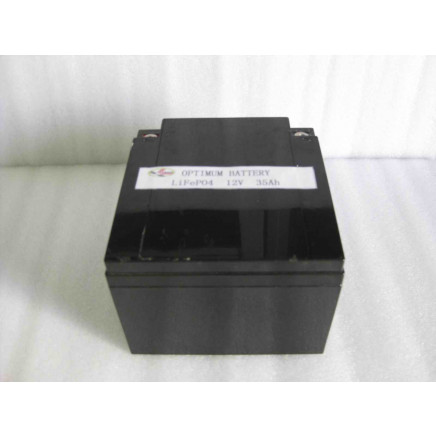

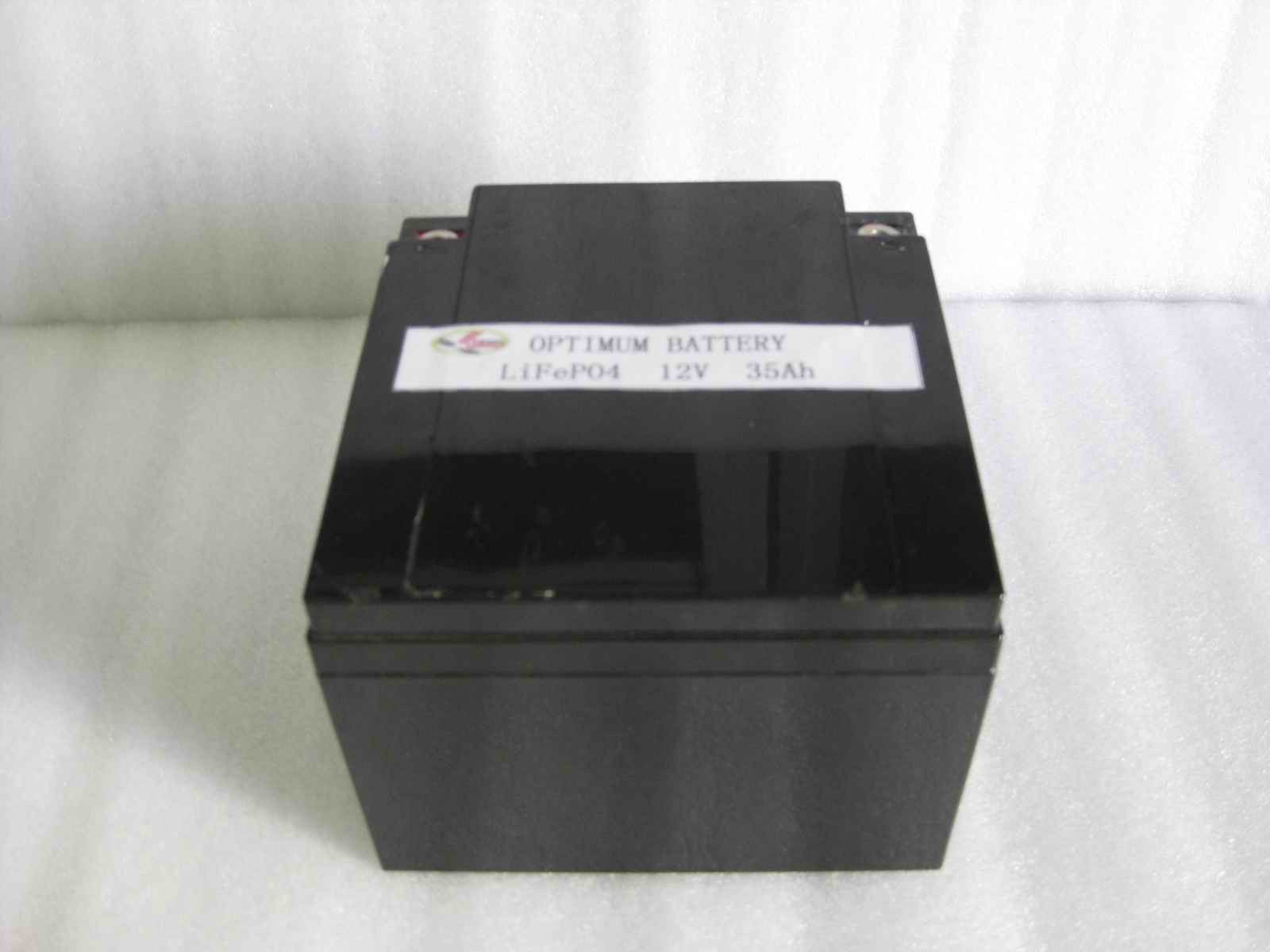

LiFePO4 battery pack 12V 35ah/backup battery

Size is about 165*175*127mm.
LiFePO4 battery agree with environment protection; But Lead Acid battery do not;
LiFePO4 battery have longer cycle life, nearly 2000 time at 0.2c rate; But SLA just can cycle 300-500 times;
LiFePO4 battery weight is about 1/3 of SLA battery.
The protect board is inside the case,
And we can provide a 10A charger along with battery.
Rated voltage is 12.8V, max charge voltage is 14.6V, cut-off voltage is 8V. Rated capacity is 35AH.

NO.	Item		General Parameter				Remark
1	Model		LF 12V35Ah
2	Casing material for single cell		steel case for single cells
3	Standard capacity ( 0.2C 5 A )		35Ah
4	Mininum Capacity ( 0.2C 5 A )		33.25Ah				More than 95% of nominal capacity;
5	Rated voltage		12V				Work voltage
6	Max. charge voltage		14.6V
7	Cut-off voltage		9.0V
8	Standard charge and discharge current		0.2C5A
9	Charging Time		6.0hours				0.2C5A
10	Max discharge current		2.5C5A
11	The length		285.0±0.5 mm
12	The width		175.0±0.5mm
13	The height of the crust		83.0±0.5mm
	Weight (Approx,including package)		5kg
15	Impedance ( Max, at 1000Hz. )		? 80m?
16	Charge method (CC/CV)	Standard	CC	0.2C		14.6V cut off
			CV	14.6V		0.05C cut off
		Rapid	CC	1C		14.6V cut off
			CV	14.6V		0.05C cut off
17	Operate temperature		Charge		0°C~45°C
			Discharge		-20°C~60°C
			Storage		-20°C~45°C

Additional Information
