LiFePO4 Battery Pack 12V 26ah with PCM and Charger

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1.0 - $180.0 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 180/ Piece
1000.0	US $ 1/ Piece

Trade Terms: EXW

Payment Terms: T/T

Price Valid Time:From Jul 25, 2015 To Oct 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-12-26

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:Low Discharge Rate

Size:175*175*118.5mm/Customerized

Accessories Type:Battery

Rated Capacity:500MAH?1000MAH

Standard Voltage:12V

Electrolyte:LiFePO4

Material:LiFePO4

Weight:3.5kg

Lead Time:25days

Warranty:2years

Life Cycles:2000 Times

Application:E-Car ,E-Bus ,Golf Car ,E-Bike,Scooter,RV,Agv ,Sol

Certificate:UL ,CE ,RoHS ,ISO9001 ,Ts16949 ,SGS ,BV , IEC62133

Charge Method:Cc/CV

Advantages:Safety,Long Life Cycles,High Energy Density,

Market:Global

Export Markets:Global

Additional Info.

Trademark:OPTIMUM

Packing:3pks/CTN

Standard:UL CE RoHS TS16949 ISO9001 SGS

Origin:China

HS Code:85078020

Production Capacity:3000pks/Week

Product Description

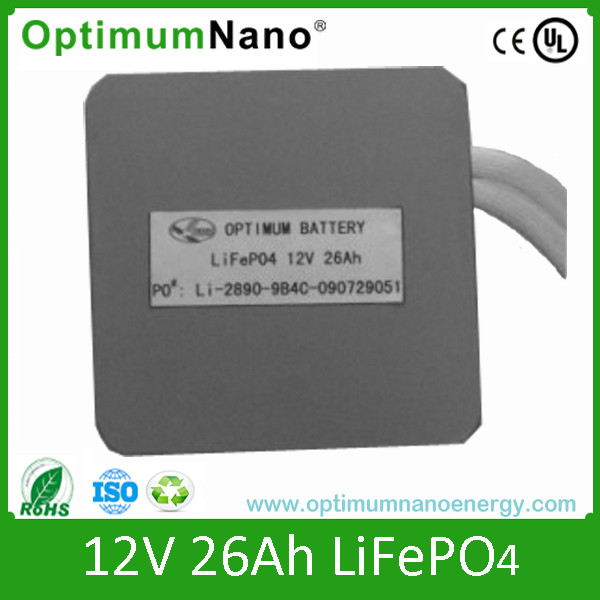

LiFePO4 Battery Pack 12V 26AH

1. This battery suitable for all of the electric vehicle and skiing borad and UPS backup
2. The cycle life of the battery pack can reach 2000 time with 0.2C-1C discharge currents
3. The Li-ion battery is have half dimension and third weight compare wih the lead-acid battery. Thus the performance of the whole EV is improved and the battery can be taken off easily
4. The lead-acid battery will pollute the environment seriously because of frequent replace, but the Li-ion battery is green power without pollution
5. The Li-ion battery is more safe and reliable than the lead acid one. It wont explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat...
6. The battery can be full charged in2 hours at 0.5c current.
7. The pack have a BMS, so it will not over-discharge and over-charge. It is as a balance charger, but it is cheaper than it.
8. Now it is the best welcome and potential product in the battery market.
9. Rated voltage is 12.8V, max charge voltage is 14.6V, cut-off voltage is 8V. Rated capacity is 8AH.

Battery Parameter
Model		OPT12-26
Standard capacity(0.2C)		26AH
Minim um capacity(1C)		25AH
Rated voltage		12V

Max. Charge voltage		14.6V
Cut-off voltage		10V
Standard charge current		2A-10A
Max charge current		26A
Max discharge current		50A
Pulse discharge current		100A
Cycle life		2000times
Package		Glue case
Length		175MM
Width		175MM
Height		118.5 MM
Weight(Approx, including case)		3KG
Impedance(Max, at 1000Hz)		? 45m?
Charge Parameter
Charge method (CC/CV)	Standard	CC	0.2C	3.65 cut off
		CV	3.65V	0.05C cut off
	Rapid	CC	1C	3.8V cut off
		CV	3.65V	0.05C cut off
Operate temperature		Charge	0°~45°C
		Discharge	-20°C~60°C
		Storage	-20°C~55°C

12V 5/10/20/25/30/40/50/60/80/100/120/150/200/300/400Ah
Item No.	OPT-12-005	OPT-12-010	OPT-12-020	OPT-12-26~30	OPT-12-040	OPT-12-050	OPT-12-060
Standard Capacity	5Ah	10Ah	20Ah	26~30Ah	40Ah	50Ah	60Ah
Rated Voltage	12.8V
Discharge Cut-off Voltage	10.0V
Cell Model	IFR32650/32750
Casing Material	Steel Case for Single Cells
Self Discharge Rate	?3% after one month
Life Cycles	80% capacity remaining after 2000 times at 1C rate 100%DoD
Max Charger Voltage	DC14.6V
Standard Charge Current	0.2C
Protection Function	Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage Protection
Product Size(mm)	1515193	1358585	18276167	118175175	190165175	190165175	350168179
Approx N.W	0.9Kg	1.3Kg	2.8Kg	3~4.0Kg	5.5Kg	7.0Kg	8.0Kg
	OPT-12-080	OPT-12-100	OPT-12-150	OPT-12-200	OPT-12-200	OPT-12-300	OPT-12-400
Standard Capacity	80Ah	100Ah	150Ah	200Ah	200Ah	300Ah	400Ah
Product Size(mm)	260170215	330170220	502262242	502262242	360220262	520262242	560360200
Approx N.W	11Kg	16Kg	24Kg	35Kg	38Kg	45Kg	65Kg
