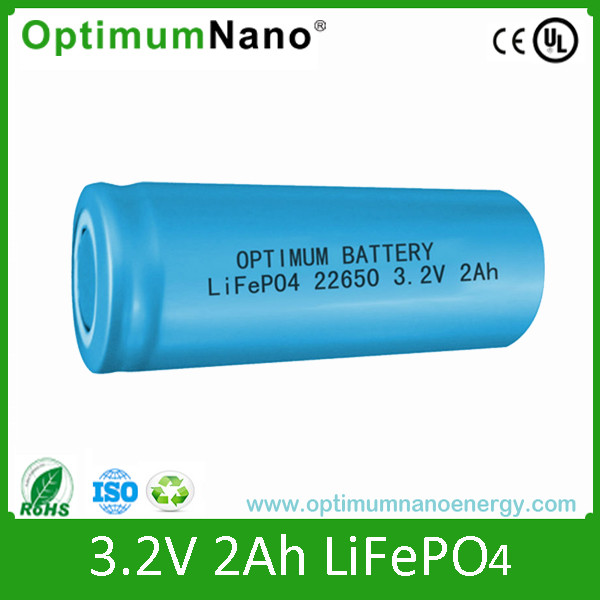

LiFePO4 Battery 22650 2ah 3.2V

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1.0 - $4.0 / Piece

Min. Order (Pieces)	Unit Price
50.0	US $ 4/ Piece
10000.0	US $ 1/ Piece

Trade Terms: FOB, CIF, EXW

Payment Terms: T/T

Price Valid Time:From Aug 07, 2015 To Nov 30, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:22650

Type:Lithium-Ion Batteries

Usage:Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat

Nominal Voltage:3.2V

Discharge Rate:Low Discharge Rate

Shape:Cylindrical Battery

Electrolyte:LiFePO4

Installation:Packaged

Rechargeable:Chargeable

Voltage:3.2V

Capacity:2ah

Size:22650

Material:LiFePO4

Application:E-Car ,E-Bus ,Golf Car ,Trolley,E-Bike,Scooter,RV,

Lead Time:25days

Warranty:2years

Life Cycles:2000 Times

Certificate:UL ,CE ,RoHS ,ISO9001 ,Ts16949 ,SGS ,BV , IEC62133

Advantages:Safety,Long Life Cycles,High Energy Density,High P

Export Markets:Global

Additional Info.

Trademark:OptimumNano

Packing:Custom Packaging

Standard:CE, UL, RoHS, SGS, TS/16949 and ISO9001-2008

Origin:Shenzhen China

HS Code:8507600090

Production Capacity:50000PCS Per Day

Product Description

LiFePO4 battery 22650 2AH 3.2V

1.Green product
It is agree with environment protection.

2.Cycle life
can cycle 500-2000 times with 0.2C-1C discharge rate.

3.Safe
it have the best safety and steady performance.

4.Promise
Now it is the main promising product in the battery market.

5.Weight
The dimension is smallest and the weight is lighty compare with other battery.

6.Voltage
The single battery rated voltage is 3.2V,max charge voltage is 3.65V,cut-off voltage is 2.3V.

7.Dimension
Diameter is 26.5mm,height is about 65.5mm.

Specification

NO.	Item	General Parameter		Remark
1	(Model)	IFR 22650-1.8Ah		(Single)
2	Casing material for single cell	Nickel plated steel
3	Standard capacity(0.2C5A)	2Ah
5	Rated voltage	3.2V
6	Max.Charge voltage	3.65V
7	Cut-off voltage	2.50V
8	Standard charge current	0.4A		0.2C
9	charging Time	About5h
10	Continuous discharge current	0. 4A		0.2C
11	Total weight(Approx.)	About 0.07kg
12	Single Impedance(Max, at 1000Hz.)	? 45m?
13	Charge method (CC/CV)	Standard	0ºC~45ºC
		discharge	-20ºC~60ºC
		storage	-20ºC~45ºC

Safe: The safest LiFePO4 battery so far, with CE, UL approved.
Environmental-friendly: All of our LiFePO4 approved ROHS.
Quality: Have obtained ISO9001-2008 and TS/16949 cer tification .Every cells in the same capacity , impedance ,self-discharging ,voltage ,discharge stage ,cc ratio .
