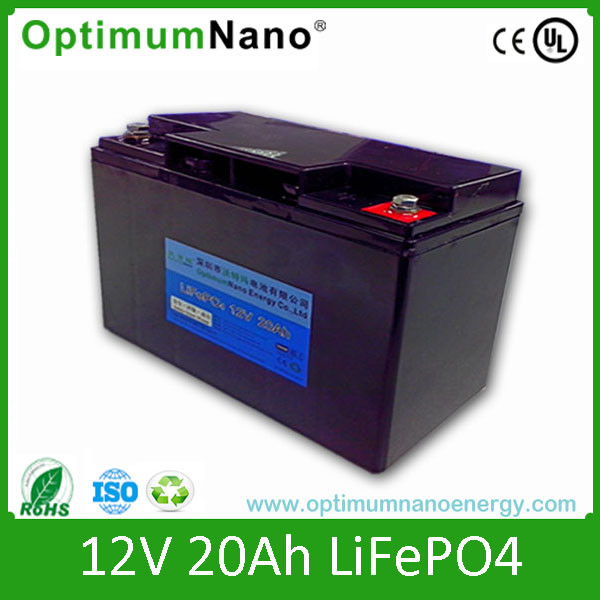

LiFePO4 Battery 12V 20ah for Golf Cart with PCM

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1.0 - $100.0 / Piece

Min. Order (Pieces)	Unit Price
10.0	US $ 100/ Piece
100.0	US $ 1/ Piece

Trade Terms: FOB, CIF, DDP, CPT, FCA, EXW

Payment Terms: L/C, T/T, Western Union, Cash

Price Valid Time:From May 18, 2015 To Aug 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-12-20

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:Medium Discharge Rate

Size:Medium, 180.5*76*165mm

Accessories Type:Battery

Rated Capacity:20ah

Standard Voltage:12V

Usage:Remote Control Car

Electrolyte:LiFePO4

Modle:Opt-12-20(12V 20ah)

Max Constant Discharge Current:50A

Weight:2.5kg

OEM/ODM:Yes

Warranty:2 Year

Applications:Banckup Power/Solar System

Cycle Life:2000times

Price:Manufacture

Enviroment Proctection:Green Product

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO ENERGY

Packing:Standard Export Package

Standard:CE, UL, ROHS TS16949 ISO9001 SGS Standard

Origin:Guangdong, China

HS Code:8507600090

Production Capacity:1000pks/Day

Product Description

LiFePO4 Battery 12V 20ah for Golf Cart with PCM

1. The feature of LiFePO4 Battery:
1) 100% depth discharge;
2) Cycle times: 2000, 1C/1C charge/discharge, 80% capacity remaniing;
3) Light: 1/2 weight of the Lead acid battery;
4) Enviroment protection, green product.
5) Safety: Stable, the safest battery so far, be used on the electric car, connectiong with life.

2. The applications:
1) Electric vehicles: Electric bike, electric golf trolley, electric scooter, skating board, two wheeler;
Car/ship starting system etc;
2) Solar street light/lawn lamps/backup power;
3) Telephone switchboard, electric equipments, power instruments and meters;
4) Uninterrupted power source (UPS) for computer, Medic devices;
5) Power transmission and transformer station, switch control, and accident light;
6) Fire fighting, safety device, and alarm monitoring;
7) Automatic office system;
8) Radio communication system;
9) Portable electric appliances and mining system;
10) Traffic and navigation signal lamp.

1,Normal performance:

NO.	Item		General Parameter				Remark
1	Model		IFR 32650
2	Casing material for single cell		steel case for single cells
3	Standard capacity(0.2C5A)		20Ah
4	Mininum Capacity(0.2C5A)		19Ah				larger than 95% of capacity clients requested;
5	Rated voltage		12V				Work voltage
6	Max.Charge voltage		15.2V
7	Cut-off voltage		10.0V
8	Standard charge and discharge current		0.2C5A
9	charging Time		8.0hours				0.2C5A
10	Max discharge current		5C5A
11	length		181±5.0mm
12	width		75±5.0mm
13	height		167±5.0mm
14	Weight(Approx,including case)		About 2.8kg
15	Impedance(Max, at 1000Hz.)		? 60m?
16	Charge method (CC/CV)	Standard	CC	0.2C		15.2V cut off
			CV	15.2V		0.05C cut off
		Rapid	CC	1C		15.2V cut off
			CV	15.2V		0.05C cut off
17	Operate temperature		Charge		0ºC~45ºC
			discharge		-20ºC~60ºC
			storage		-20ºC~45ºC
