LiFePO4 12V 200ah Battery Wind System Battery

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1.0 - $1200.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 1200/ Piece
100.0	US $ 1/ Piece

Trade Terms: FOB, CIF, DDP, CPT, EXW

Payment Terms: L/C, T/T, Western Union, Cash

Price Valid Time:From Jul 25, 2015 To Oct 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-12-200

Type:Lithium-Ion Batteries

Usage:Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat

Nominal Voltage:12V

Discharge Rate:2.5c

Shape:Cylindrical Battery

Electrolyte:LiFePO4

Installation:Packaged

Rechargeable:Chargeable

Size:525*270*220mm

Weight:About 32 Kg

Lead Time:25dasy

Warranty:2years

Application:E-Car ,E-Bus ,Golf Car ,E-Bike,Scooter,RV,Agv ,Sol

Certificate:UL ,CE ,RoHS ,ISO9001 ,Ts16949 ,SGS ,BV , IEC62133

Charge Method:Cc/CV

Advantages:Safety,Long Life Cycles,High Energy Density,

Market:Global

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:Plastic Case/Iron Case

Standard:UL CE ROHS TS16949 ISO9001 SGS Standard

Origin:China (Mainland)

HS Code:8507600090

Production Capacity:4000pks/Day

Product Description

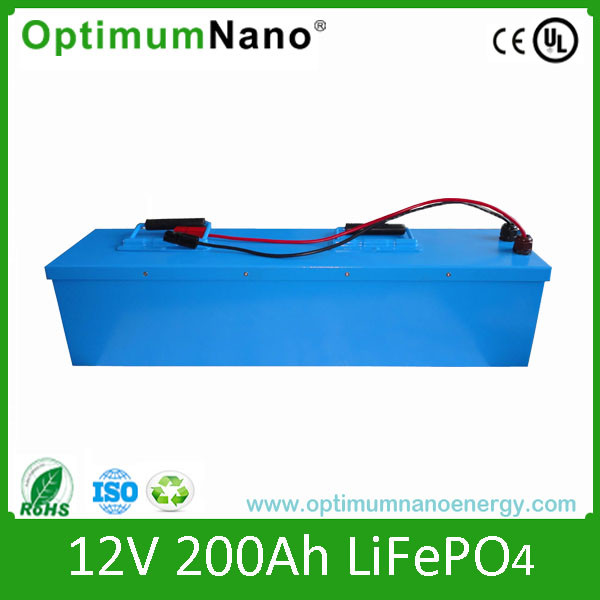

Optimum 12V 200ah LiFePO4 Energy Storage Battery

1/3 weight, smaller dimension, but 8 times cyclelife than SLA batteries
Long cycle life: > 2000 cycles
UL and CE approved
Factory passed TS 16949, ISO 9001: 2008

Rated voltage: 12V
Max. Charge voltage: 14.6V
Cut-off voltage: 10.0V

Max. Charge current: 100A
Max Continuous discharge current: 100A
Max. Instant discharge current: 250A~400A discharge current within 10 seconds.

Case Color: Blue or white
Size: 525*270*220mm(Max, including case)/Customerized
Weight: About 32kg
With handle and Fixed hand

Any battery pack we produced were assembled by series and parallels of single battery cells, So you can also buy single battery cells, and DIY according to your demands.
Type	Voltage (V)	Capacity (Ah)	Weight (g)	Energy Density (WH/kg weight ratio)	Energy Density (WH/L Volume Ratio)	Constant Discharge rate	Life span(base on 1C discharge and charge rate
18650	3.2	1.4	39	115	270	? 3C	2000 cycles? 80%
26650-LP	3.2	3.2	85	120	292	? 3C	2000 cycles? 80%
32650-LP	3.2	5	145	110	280	? 3C	2000 cycles? 80%
32650-LP	3.2	5.5	147	120	308	? 3C	2000 cycles? 80%
32750-LP	3.2	6	150	130	336	? 3C	2000 cycles? 80%
