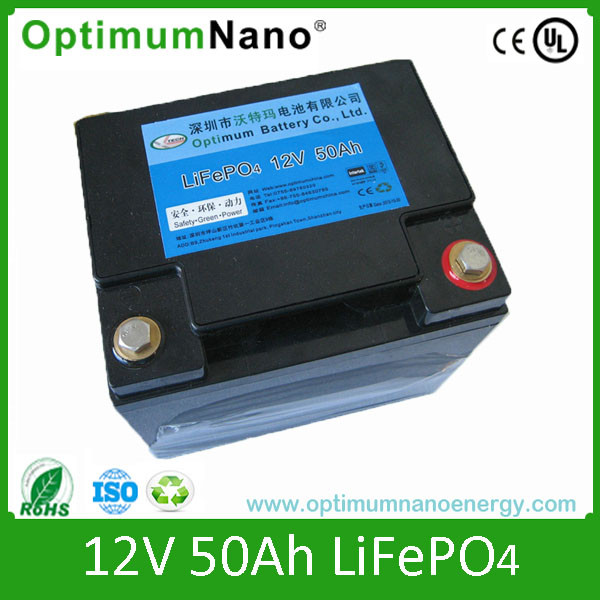

Lifeop4 12V 50ah Outdoor Power Supply with CE UL

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$240.0 - $310.0 / Piece

Min. Order (Pieces)	Unit Price
10.0	US $ 310/ Piece
1000.0	US $ 240/ Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Jul 25, 2015 To Oct 25, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-012050

Type:Lithium-Ion Batteries

Usage:Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat, Solar

Nominal Voltage:12V

Discharge Rate:Low Discharge Rate

Shape:Cylindrical Battery

Electrolyte:LiFePO4

Installation:Packaged

Rechargeable:Chargeable

Battery Cell Type:LiFePO4 Battery(Ifr 32650-3.2V5ah Per Cell)

Composed Type:4 Series 10 Parallel

OEM/ODM:Acceptable

Certifications:CE, UL, RoHS, IEC, BV, SGS, Rbrc

Warranty:2years

Life Cycles:2000 Times

Application:E-Car ,E-Bus ,Golf Car ,E-Bike,Scooter,RV,Agv ,Sol

Advantages:Safety,Long Life Cycles,High Energy Density,High P

Market:Global

Export Markets:Global

Additional Info.

Trademark:OPTIMUMANNAO

Packing:Standard Packing

Standard:UL, CE

Origin:China Mainland(Guangdong)

HS Code:8507600090

Production Capacity:1000 Packs/Week

Product Description

Basic information:

Rated Voltage: 12V
Rated capacity: 40 Ah
Max charging voltage: 12 V
Cut off voltage: 10V
Recommend charge current: <10 A (optional)
Recommend continuous discharging current: <50A (customized)
Pulse discharging current: 100 A (customized)
Life cycle: Over 2000 cycles >80% capacity
Case: ABS case or customized
Size: Customized
Weight: About 8 KG
Self discharge rate: ? 3% monthly
Operate temperature -20º C-60º C
Warranty time is 2 years
Certifications: CE, UL, ROHS, IEC, BV, SGS, RBRC

Features of Optimumnano LiFePO4 battery pack:

1. Pack assembly technique: Use the most mature cylindrical structure design 32650
LiFePO4 battery, making use of assembly technique developed by us to form products of
Different modules required by customers which are against dust, water, vibration and good
In conductivity and heat raleasing. At present, the maximum capacity of module we've
Produced so far is 900Ah while maximum voltage of pack is 600V;
2. Battery management technique: Self-developed BMS, automatic testing voltage,
Temperature, current, insulation level and SOC, use advantage lossless balancing function
And GPRS wireless data transmission function.
º 3. Ensuring of best performance of each cell;
4. Seamless exchange: We can produce packs that are the same with lead-acid battery in
Voltage, capacity and dimension, without changing the mould.
5. Lighter, smaller and stronger: Optimumnano LiFePO4 battery pack system is featured
With lighter weight, smaller dimension and stronger power with service term above 10
Years.

Quality features of optimumnano LiFePO4 battery pack:

In optimumnano, each cell and pack is produced with the principle of "conformity in 6
Aspects and 3 inspections in 3 stages", thus the high stability and reliability can be
Guaranteed. "Conformity in 6 aspects" is a principal developed by optimumnano's engineers
In production and inspection process. The application of ensures conformity of packs and
Improves service term of pack obviously. And "3 inspections in 3 stages" refers to
Inspections on battery assembly, paralleled modules and finished packs.

Remarks:

1) MOQ: 10 pcs
The quotation is include BMS and packing, but not the charger
2) Payment: T/T 100% for sample, T/T 30% in advance, 70% before sending the goods for the
Order.
3) Order Lead time: 4-6 weeks for order upon receipt of 30% deposit
4) Sample lead time: Within 2-3 weeks
5) Delivery: FOB Shenzhen port
6) Warranty: 24 Months from the day when you receive the goods

Attention:
Don't throw the battery into water and fire or don't hot it up.
Don't break up the battery
Never throw the battery into water, keep it under dry, shady and cool circumstance when
Not use.
Never keep the battery beside high temperature source examples: Fire, heating machine and
Ect.
Please use the stated charger when charging.
Never upside down the positive and negative.
Never cut the battery in socket directly
Never connect the positive and negative of battery with metal.
Never use or keep the battery under the high temperature. Otherwise it will cause battery
Heat, get into fire or lose some function and reduce the life.
Never use the battery under strong static and strong magnetic field, otherwise it will
Destroy the protecting device.
If battery leaked, the electrolyte get into eyes, please don't knead, please wash eyes
By water and send to hospital. Otherwise it will hurt eyes
If battery emit peculiar smell, heating, distortion or appear any unconventionality
During using, storage or charging process, please take it out from device or charge and
Stop using.

Performance Comparison between LiFePO4 Battery and Lead acid Battery
Item	LiFePO4 Battery	Lead acid Battery	Notes
Weight to Power Ratio	120-130 Wh/kg	32-37 Wh /kg	4:1
Dimension to power ratio	210 Wh/L	70 Wh/L	3:1
Cycle Life	Over 2000 times(1C)	300 times(1C)	6:1
High Rate Charge /Discharge Performance	Higher than 96%	60%~70%	1.6:1
Charging performance	1 Hour	4 Hours	1:4
Temperature Range & performance	-20ºC-60ºCLiFePO4 High temperature discharge current is about 105%,	-20ºC-45ºC Lead acid Battery temperature discharge current is about 80%	1.3:1
Monthly Self-discharge Rate	About 3%	More than 10%	1:3
