License Plate Frame Backup Camera (DF-8021)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trademark:VEISE

Standard:CE, FCC, ISO9001: 2000, RoHS

Production Capacity:5000pcs/month

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DF-8021

Additional Info.

Trademark:VEISE

Standard:CE, FCC, ISO9001: 2000, RoHS

Origin:China

Production Capacity:5000pcs/month

Product Description

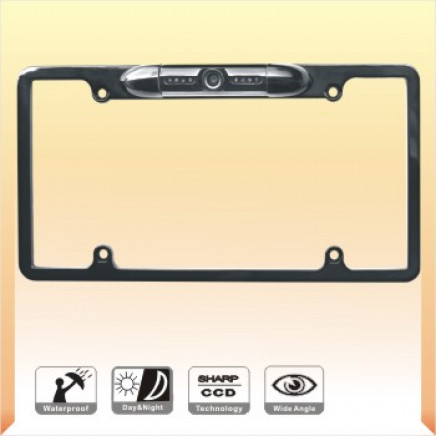

*License Plate Frame Color CCD Backup Camera Suitable Vehicle: USA, Canada, Mexico, Venezuela and Puerto Rico, etc
*Aluminum Shell IP67 Waterproof for Outdoor Use,Adustable Angel(up and down) by Swivel the Frame Manual
*Built in IR LED's for Picture Support in the Dark

Model	DF-8021
Image Pick-up Device	1/3" SHARP Color CCD
Horizontal Resolution	420 TV Lines
Number of Pixels	NTSC:510(H)×492(V); PAL:628(H)×582(V)
Scanning System	NTSC:525 Lines,60 Field/sec, PAL:625 Lines 50 Field/sec
Sync System	Internal Synchronization
Gamma Characterlstic	0.45
S/N Ratio	?48dB(AGC Off)
Electronic Shutter Time	On: NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec; Off: NTSC 1/60 Sec, PAL 1/50 Sec
Usable Illumination	0Lux (8 pcs LEDs ON for night vision 10M )
Lens	2.9mm/F2.0
Video Output	1.0Vp-p 75 ohm
Gain Control(AGC)	Auto
Cable	BNC JACK
Water resistance	IP67
Operation Temperature	-10ºC~+50ºC RH95% Max
Storage Temperature	-20ºC~+60ºC RH95% Max
Power Supply	DC12V±10% 400mA
Dimension	160 x 310(mm)
Weight	300g
