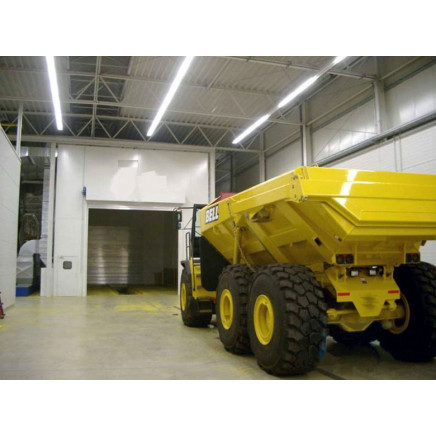

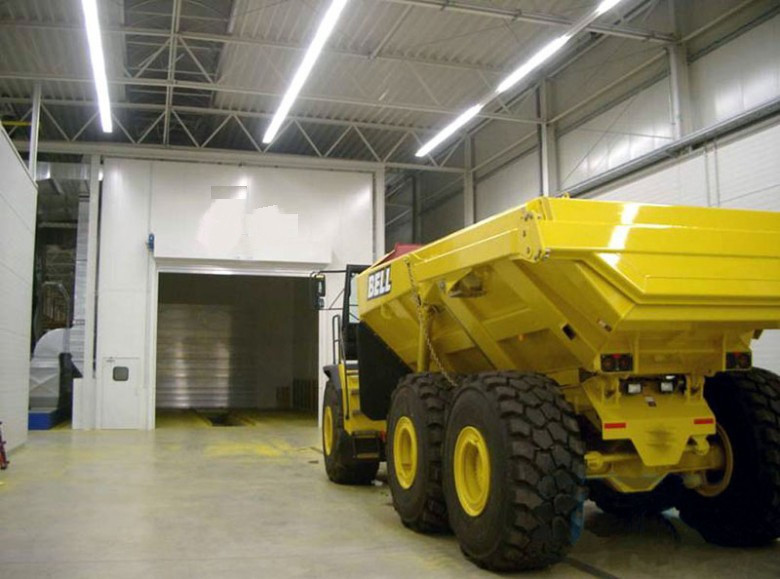

Large Truck Coating Equipment, Spray Booth, Painting Room

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 12680/ Set

Price:US $12680.0 / Set

Trade Terms: FOB, CFR, CIF, DAT, CIP, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Aug 07, 2015 To Sep 27, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CP-10

Type:Powder Coating Booth

Certification:CE, GS, ISO

Substrate:EPS Sandwich Panel

Brand:Captain

Coating:Painting

Airflow Direction:Cross-flow Type

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Internal Size:12000�4500�4000mm(L�w�h)

External Size:12144�6396�4600mm(L�w�h)

Grid:2 Rows Air Exhust Plenum Chamber

Wall:75mm EPS Panel, 0.5mm Steel

Front Door:1 Unit, 3800X3900 mm(Wxh)

Service Door:1unit, 650X1800 mm(W�h)

Lighting System:16 Ceiling Lights, 18 Side Lights

Intake Air System:4X5.5kw Double-Intake Centrifugal Fans

Exhaust Air System:2X7.5kw Double-Intake Centrifugal Fans

Total Power:44kw

Export Markets:Global

Additional Info.

Trademark:OEM/Captain

Packing:Export Container /Pallet /Disassembly with Carton

Standard:CE, SGS, ISO

Origin:Jiangsu, China.

Production Capacity:196sets/Month

Product Description

Product Description
1. This paint spray booth is suitable for 12m bus.
2. Has CE certification
3. High quality, competitive price, famous brand in China.
4. OEM is available.
5. Can be produce as customer's requir.
Booth DimensionsExterior size(mm)(L)12125� (W)8400� (H)5000
Interior size (mm)(L)12000� (W)5000� (H)5000
Foundation and FloorLoading capacity of galvanized No basement, with side air collector, each side has 5 units, total 10units air collector, each unit size: (L)2000� (W)500� (H)800mm
Surface area of rear exhaust box15 m�
Metal BasementNo
Drive-in rampsNo

Wall and doorSteel wall75 mmthick EPS panel
Roof panelDouble-layer galvanized plate, with heat insulation cloth inside.
4Folded entrance door with safety glass window1 unit.
entrance door size: (W)4000� (H)4300 mm
Operator' s door with safety glass windows2 unit, (W)800� (H)1800mm
LightingCeiling lightings12 units, each unit: 4� 36 W, total 1728W, IP54
Side lightings18units, each unit: 2� 36 W, total 1296W, IP54
Brightness> 950Lux
FiltrationPrefiltersPlate filter, G3 grade
Ceiling filtersF5 grade filter
Exhaust filtersBottom, G2 grade filter

Booth Dimension
- Internal Size(L�B�H)	12000�4500�4000mm(L�W�H) & 39'4''X14'8''X13'1''
- External Size(L�B�H)	12144�6396�4600mm(L�W�H) & 39'8''X20'9X15'1''
Foundation and Floor
- Grid	2 rows air exhust plenum chamber
- Metal Basement	Need to build the base construction , 2 rows of pits in the ground for exhaust air, dimension of each pit is10350�760mm((LxW), with galvanized grids made by twisted steel and flat bar above
Wall and Door
- Steel Wall	Double construction with insulations EPS , thickness 75mm,0.5mm steel thickness, width:950mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside
- 3-Folded Entrance Door With Safety Glass Window	1 Unit, 3800�3900 mm(WxH) galvanized steel cover frame, with polystyrene(EPS) inside
- Operator's Door With Safety Glass Window	1Unit, 650�1800 mm(W�H)
Lighting System
- Ceiling Lights	16Units, each 3�36 W, with electronic ballasts
- Side Lights	18Units, each 2�36W, with electronic ballasts
- Brightness	>1000LUX
Filter System
- Filter	Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter
- Filtering area	46M2
Ventilation System
- Intake air system (Fresh Air)	4�5.5KW double-intake centrifugal fans for intake air, model YDW4.5S, total air capacity 65000m3/h
- Exhaust air system(Exhaust Air)	2�7.5KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-560H, total air capacity 50000m3
Heating System
- Heating Exchange	Stainless Steel
- Heating Exchange Capacity	260000Kcal/h
- Max. Drying Temperature	80 �C
- Heating time	8-12 min (from 20 to 60) by Drying Phase
- Heating Type (optional)	RIELLO RG5S (260000 kcal/h)Diesel )2 sets
Control Box
- Control system	Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. exhaust reduction voltage motor start
- Total power	44KW
