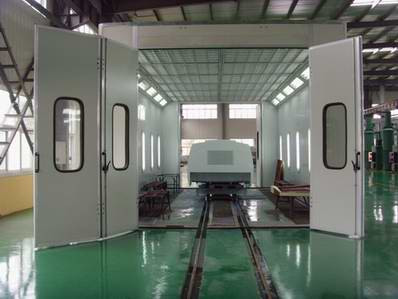

Large Spray Booth

More Views

Large Spray Booth

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Set

Trade Terms:FOB, CFR, CIF, DAT, CIP, EXW

Payment Terms:L/C, T/T

Trademark:OEM/Captain

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:18m

Type:Coating Production Line

Certification:CE

Substrate:Steel

Coating:Painting

Airflow Direction:Cross-flow Type

Heating Mode:Diesel

Paint Mist Treatment:Wet-type

Condition:New

Size:Can Be Customized

Color:Blue, White, Red

Heating Method:Diesel Burner, Gas Burner, Infrared Lamps

Fan:Centrifugal Fan, Belt Fan, Turbo Fan

Lights:Anti-Explosure Lights

Panel:EPS, Rock Wool, Fiber Glass

Basement:No, Extract From Sides

Export Markets:Global

Additional Info.

Trademark:OEM/Captain

Packing:Export Container /Pallet /Disassembly with Carton

Standard:CE, SGS, ISO

Origin:Jiangsu, China.

Production Capacity:196sets/Month

Product Description

Specifications
1.An ideal type for big painting capacity;
2.Professional design for air flow;
3.Many big project cases experience support.
We are a company specialized in manufacturing different spray booths, painting lines etc since 1999, besides, we have
the largest production base of spray booth in China, and big projects production capability is our manifestation, and we also export a lot of spray booth every year, and your requirement is our mission.
We devote ourselves to make a neat, enjoyable and professional factory to produce out

high level and world famous spray booths for our customers. What's more, we have about 90,000 m2 production area,

which can fully satisfy your needs of production capability. Welcome friends from all over the world visit our factory to

inspect our production ability, technical power, product quality,management etc.

Outside Size:(mm)		18156x7516x5800		Front Door:(mm)		4100(w)x4500(h)
Inside Size:(mm)		18000x6000x5000		Total Power:(kw)		65
Cabin System	Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards,75mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame ,Anti-flame and Heat-Insulation with the strong support of powder coated pillars inbetween.


	Basement	Two rows of pits with galvanized duty-bearing grids for air sucking
Air Circulation System	Inhaling Ventilator		Type&Model: YDW-5.6M		Exhaust Ventilator		Type&Model: 4-82-6.3E
			Blower Capacity: 21000m3/h				Blower Capacity: 35000m3/h
			Pressure: 800Pa				Pressure: 800Pa
			Rolling Speed: 900rpm				Rolling Speed: 900rpm
			Power: 7.5kw				Power: 15kw
			Quantity: 6 sets				Quantity: 3 sets
	Air Volume: 12000m3/h; Air Speed: 0.31m/s
Air Purification System	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 ?m. Inflammable Ceiling Filter Capture Granules Bigger than 4?m. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Gauge, TSP?1.4mg/m3


Heating System	Burner	Italy Riello Brand, RG5S Diesel Burner x 3 Sets , 260000Kcal/h, 20N Damp Motor
	Heat Energy Converter	SUS304 Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%


	Max Temp:80 . C , Heating Time: 15-20min(20-60�C), Fuel Consumption: 10-12kg/vehicle

Light System	Ceiling Light: 60 pcs 36w Philips Lamp; Side Light: 36 pcs 36w Philips Lamp, 900 Lux,
Electric Controlling System	Micro Computer Programme Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm, failure alarm, timer

Environmental System	Multi-Layer Fiber glasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards


Optional
3-Dimention trolley as an optional is available for easily painting work.
