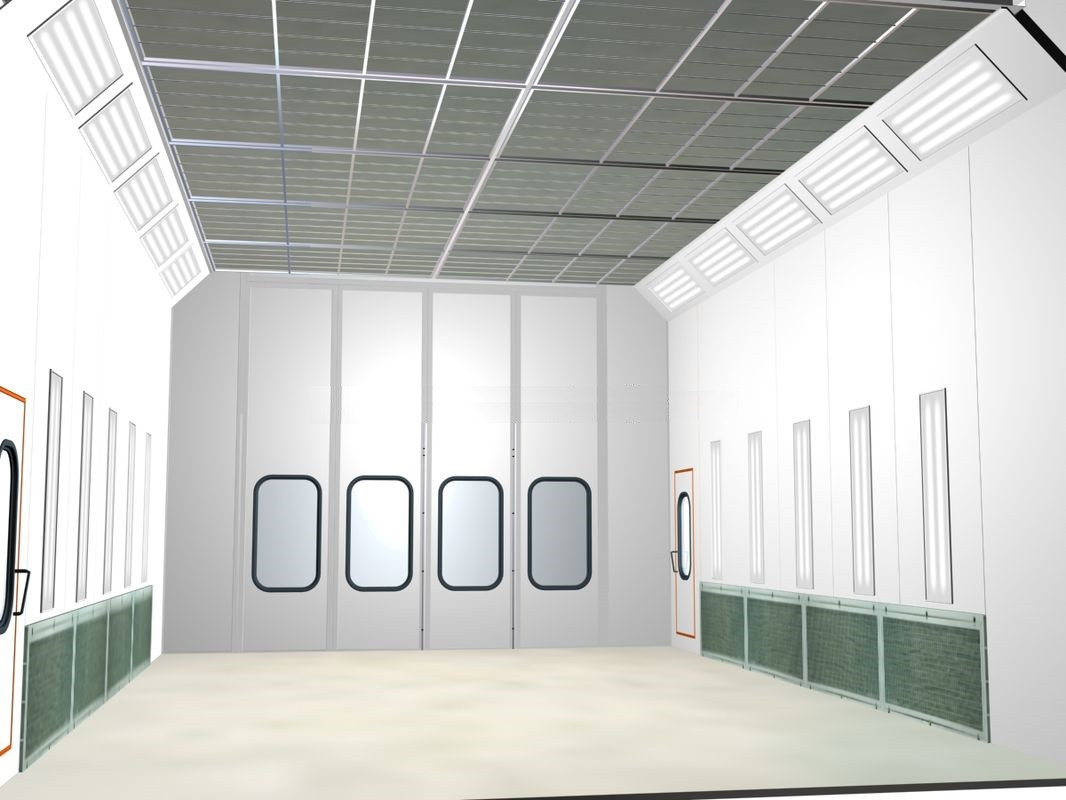

Large Infrared Heating Spray Booth, Industrial Equipment

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Set

Trade Terms:FOB, CFR, CIF, DAT, CIP, EXW

Payment Terms:L/C, T/T, D/P, Paypal, Money Gram, Western Union

Trademark:OEM/Captain

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CP-M5

Type:Air Spray Equipment

Application:Hardware Spraying Equipment, Wood Spraying Equipment, Plastic Spraying Equipment, Porcelain Spraying Equipment

Certification:CE, ISO, SGS

Method Type:Automatic

Condition:New

Outside Size(mm):15150X6500X5500mm(Lxwxh)

Inside Size(mm):15000X5000X5000mm(Lxwxh)

Front Door(mm):4000X4000mm(Wxh), 1 Unit

Service Door(mm):650X2000 mm(Wxh),2 Units

Wallboard:75mm EPS Panel, 0.5mm Steel

Basement:2 Rows of Pits,with Galvanized Grids

Inlet Fan(Belt):4X7.5kw

Outlet Fan(Belt):2X7.5kw

Heating System:2X30units Short Wave Infra-Red Lamps

Lighting System:4X18units Ceiling, 2X22 Units Side

Export Markets:Global

Additional Info.

Trademark:OEM/Captain

Packing:Export Container /Pallet /Disassembly with Carton

Standard:CE, SGS, ISO

Origin:Jiangsu, China.

HS Code:8419899090

Production Capacity:196sets/Month

Product Description

Products Description

This automatic paint spraying/baking booth is used for air purification during auto paint coating operation and drying operation after painting spray. Paint spraying and drying are performed in the same booth. This paint spraying/baking booth is typical of paint spraying and baking functions, provided with automatic thermostat paint spraying, ventilation, air purification, paint mist treatment, and winter hot-air supply functions during paint spraying, and automatic heating, thermostat timing, and timed shutdown function during paint baking. The equipment is reliable in running, simple for operation, and easy for maintenance.

Equipment Constituents

The equipment of this paint spraying/baking booth is composed of booth structure system, illumination System, air supply system, circulation system, air purification system, paint mist treatment system, pressure control devices, and electrical control system, etc.

Spraying Booth Benefits
1. The device through the action of the wind, water, gas mixture enhanced through the diversion gate, retaining plate, collecting tank, etc., to achieve water and gas separation, thereby overcoming the paint Fog clogging pumps and water systems, causing water system is not working properly shortcomings. As a result of the system without pump water saving devices, saving investment and reducing the footprint.
2. The device is in use, the mist through the water curtain, curtain and roll mixing water and gas passage, multiple classification purification efficiency improves the purification process.
3. Due to the mist and water collecting channel disposed between the diversion gate, both in the collection tank with pressure chamber between the retaining plate also has a diversion gate, to prevent the passage of water vapor mist directly from the collection tank and equalizing chamber is discharged, the purification efficiency improves.
4. Due to the water vapor mixing chamber provided with at least a pan of water board, so that water vapor mist air mixing chamber contains sufficient soluble in water, improve the purification efficiency.
5. Because of the water by adding a mist cleaning agents, paint mist undermine adhesion, cohesion so loose paint mist settling on the bottom for easy cleaning.
6. As in the collection tank with access doors for easy maintenance workers.

Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional leading factory in China, who is specializing in manufacture kinds of paint spray room system. And also offering full garage equipments, such as

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories

Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.

Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !

Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.

CPDE157501
Outside Size(mm):	15150�6500�5500mm(LxWxH)
Inside Size(mm):	15000�5000�5000mm(LxWxH)
Front Door(mm):	4000�4000mm(WxH), 1 Unit, galvanized steel cover frame, with polystyrene(EPS) inside.
Service Door(mm):	650�2000mm(W�H),2 Units, There are two sets of pressure lock which will automatically open when the pressure inside is over the limit.
Total Power:	118KW
Cabin System	Wallboard	Double construction with insulations EPS, thickness 75mm, 0.5mm steel thickness, width:950mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside.
	Basement	Need to build the base construction, 2 rows of pits in the ground for exhaust air, with galvanized grids made by twisted steel and flat bar above.
	Inlet Fan(Belt)	Capacity: 22500m�/h each	Outlet Fan(Belt)	Capacity: 22500m�/h each
		Power: 7.5kw		Power: 7.5kw
		Quantity: 4 sets		Quantity: 2 sets
Purification System	G3 grade, Air Inlet pre filter, EU5/F5 high efficiency filter (ceiling filter), G3 grade glass fiber floor filter, exhaust active carbon filter.
Heating System	With 30 units high energy short wave infra-red lamps for heating. 2 pcs/ unit, each lamp 1 KW, total power of infra-red lamp:60KW

	max temp: 80 degree centigrade, heating time:4-6 min(from 20 to 60)by Drying Phase
Lighting System	Ceiling Light: 18Units, each 4�36 W, with electronic ballasts; Side Light: 22Units, each 2�36W, with electronic ballasts
Controlling System	Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller.
Environmental System	G3 grade glass fiber floor filter, exhaust active carbon filter.
