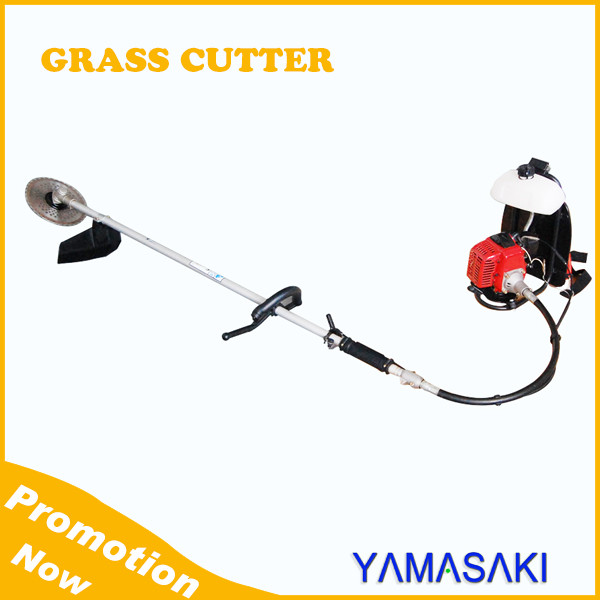

Knapsack Grass Cutter for Tropical Forest, Trees, Branches

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$60.0 - $150.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 150/ Piece
100.0	US $ 100/ Piece
1000.0	US $ 60/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, D/P

Price Valid Time:From Jul 08, 2015 To Aug 15, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VG-404

Type:Rotary Mowers

Moving Way:Drag Type

Cutter Type:Rotary Lawn Mower

Applicable Area:500-1000m²

Feature:2-Stroke, Single Cylinder, Aluminum Chassis

Certification:CE

Cutter Kind:Straight Metal Blade

Mowing Requirements:Truncated Type

Usage:Common Lawn, Golf Courses, Forest Lawn, Soccer Field, Rugby Field

Power Source:Petrol / Gas

Engine Displacement:23cc, 31cc

OEM:Available

Export Markets:Global

Additional Info.

Trademark:Yamasaki

Packing:Carton Box

Origin:China

Product Description

DESCRIPTION OF GOODS:

1. Designed by Japan Engineers
2. Yamasaki Engine.
Kawasaki Engine or Mitsubishi Engine optional
3. Accessories made in Japan

RVG knapsack grass cutter
Model	VG-404
Categories	Straight, flexible shaft, backpack type
function	tropical forest, trees, branches, crops, roadside grass, shrubs
Blade diameter	9 - 10 inch , 230 - 255 mm
Characteristics	the new control system, the larger single handle
Aluminum outer diameter (mm)	26
Aluminum tube inner diameter (mm)	22.8
Aluminum tube length (mm)	1541
Length × width × height (mm)	1698 ×116 × 110( 310 × 320 × 445 )
Weight (kg)	3
Standard parts	blade(10" × 4P)	1set
	protective plate	1set
	straps	1set
	ring-shaped handle	1set
	kit	1set
	instrctions	1set
Accessories	blade cover blade (8 inches, 9 inches, and 80P, 8P, 4P, 3P and 2P) blade nylon, protective glasses, refueling switch.

The specification of grass cutter Assy.

Model No.:	V24L	V26W	V28W
Handle Type:	L type	W type
Pipe Dia	?24mm	?26mm	?28mm
Handle Material:	A6061
Drive shaft type	Straight type
Size(mm)	1813360253	1836690500		1870690500
Blade	9"*4T	10"*4T		10"*4T
Standard packing	Blade, handle, hanging strap, safety guard, engine, toolkits, operating manual

The specification of engine

Model No.	HM23K	HM31K
Brand	Yamasaki
Displacement	22.2CC	30.8CC
Type	Air cooled, 2-stroke, single cylinder
Spark plug	NHSP LD L7T	NGK BPMR7A
Ignition device	C.D.L	C.D.L
Carburetor	Diagramph	Diagramph
Net weight	2.4KGS	2.7KGS

The specification of gear box
Knapsack Grass Cutter for Tropical Forest, Trees, Branches

Gear number	7T, 9T, 10T
Gear Ratio	1:1.28 / 1:1.34
Type:	? 24 / ? 26 / ? 28
Material	Aluminum ADC12
Surface finish	Shot blast
