Kama Dump Truck 4X2 Small Dump Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

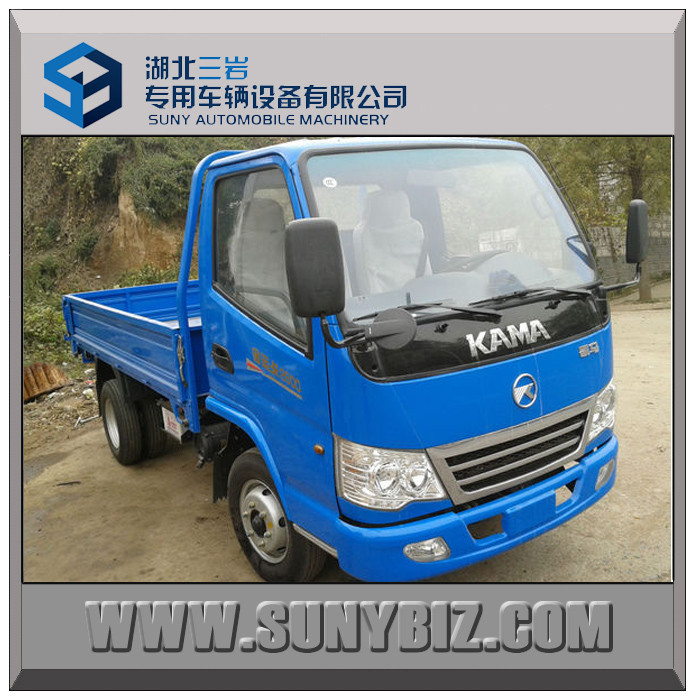

Kama Dump Truck 4X2 Small Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$8000.0 - $8900.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 8900/ Piece
10.0	US $ 8500/ Piece
20.0	US $ 8000/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 27, 2015 To Dec 30, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:KMC3040

Transmission Type:Manual

Power:Diesel

Load Capacity:1-10t

Emission Standard:Euro 3

Drive Wheel:4�2

Engine Capacity:?4L

Seats:?5

Horsepower:88HP

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Bias

Dumping Type:Middle Lifting

Condition:New

Chassis Brand:Kama

Engine:64kw/88HP

Gerbox:5 Forward Gears, 1 Reverse Gear

Drivre Axle:4tons

Cargo Body Size:3050*1640*400mm

Cargo Body Volume:3 Cubic-5 Cubic

Thickness:Side 2mm;Bottom 3mm

Hydraulic Cylinders:Middle Lift

Side Door:Optional

Left / Right Hand Drive:Optional

Export Markets:Global

Additional Info.

Trademark:SUNY

Packing:After Waxing by Container, RO-RO, Bulk Freighter

Standard:ISO&CCC

Origin:Hubei Suizhou

Production Capacity:500 Unit / Month

Product Description

2tons 3tons KAMA 4x2 Light Dump Truck / Tipper truck
engine 64kw/88hp,4tons rear axle
dumper drive type;4x2 Optional 6x4 and 8x4
dumper box size:3050*1640*400 3cbm ~ 4cbm ~5cbm
LEFT HAND DRIVE OR RIGHT HAND DRIVE

Dumper Equipped with material of carbon steel Q235,
Side 2mm thickness;bottom 3mm thickness,

Dumper Equipped with middle hydraulic ram,Single rear door.

Products Technical Specification
Brand-Series		KAMA 4x2 DUMP TRUCK
Chassis Model		KMC3040
Emission Standard		Euro 3
Fuel type		Diesel
Cabin		Single row
Whole vehicle main dimensions (mm)	Overall dimensions (L�W�H)	493018402300
	Cargo body dimensions	30501650400
	Wheel base	2600
	Front overhang	1070
	Rear overhang	1260
	Min. ground clearance	440
Weight data (kg)	G.V.W	Appro3770
	Curb weight (chassis)	Approx 2150
	Load capacity	Approx 1000-3000
Whole vehicle main performance	Max. speed (km/h)	88
Whole vehicle main performance	Max. slope of climb (%)	30
Engine	Model	4DW93-84
	Maximum power	64kw / 88HP
	Number of cylinders	4
	Displacement (L)	2.540
	Engine Manufacturer	Wuxi Diesel Engine Co., Ltd.
Transmission	Brand and Model	5
Transmission	Number of gears	5 forward gears, 1 reverse gear.(Manual)
Axle	Front /RearLoad capacity (ton)	1.5 / 4
Suspension	Front	9- Leaf spring
Suspension	Rear	8+4- Leaf spring
Steering Wheel	left/right hand drive	LHD
Brake system	Service brake	Oil braking
Electric device	Rated voltage	24V
Tyres & Quantity		6.50-16 & 6+1
Cargo body Description
Cargo body dimensions (mm)		30501650400
Cargo body material		Equipped with material of carbon steel Q235
Cargo body thickness		Side 2mm thickness;bottom 3mm thickness
Lifting System		Equipped with middle hydraulic ram, one back door
Optional Configuration
Radial tires,Van thickness,side door,etc.

Optional Dump Type:
1.Truck:(rear)Dump truck,Side dump truck; 40ton~65ton side tipper truck
2.Trailer: (rear)Dump trailer,Side dump trailer,Front side dump,rear dump trailer; 50ton ~ 100ton side tipper trailer
3.Full trailer and Side dump full trailer. 15ton~20ton~25ton~30ton full trailer
4.flatbed dump truck and faltbed dump trailer. 30ton~35ton~40ton~45ton~50ton~60ton flatbed tipper truck
5.U-Type dump truck & Dump truck crane (with XCMG,UNIC,SANY,Crane) & Mining Dump truck. 25ton ~ 80ton

We also have SINOTRUK howo water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc

Other brand of Chassis eg,Dongfeng-DFAC,FOTON-AUMAN-FORLAND,FAW-J5-J6,SHACMAN-F3000-M3000-X3000,SIONTRUK-HOWO-A7,Beiben,IVECO-HONGYAN-GENLYON,JAC,JMC,YUEJIN,KAMA,T-KING,UD,HINO,etc.

Product Series:
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

Packaging & Shipping
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!

Customer service
We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
Any requiry will be replied within 24 hours.
High quality ,competitive&reasonable price, fast lead time.
Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
Fast delivery time: within about 10~~20 working days.
We provide 13 months warranty.
We supply quick-wear parts and spare parts in time for customer .

MOB: 0086 137 0717 3051
If you have any questions please let Adam Li know.

Additional Information
